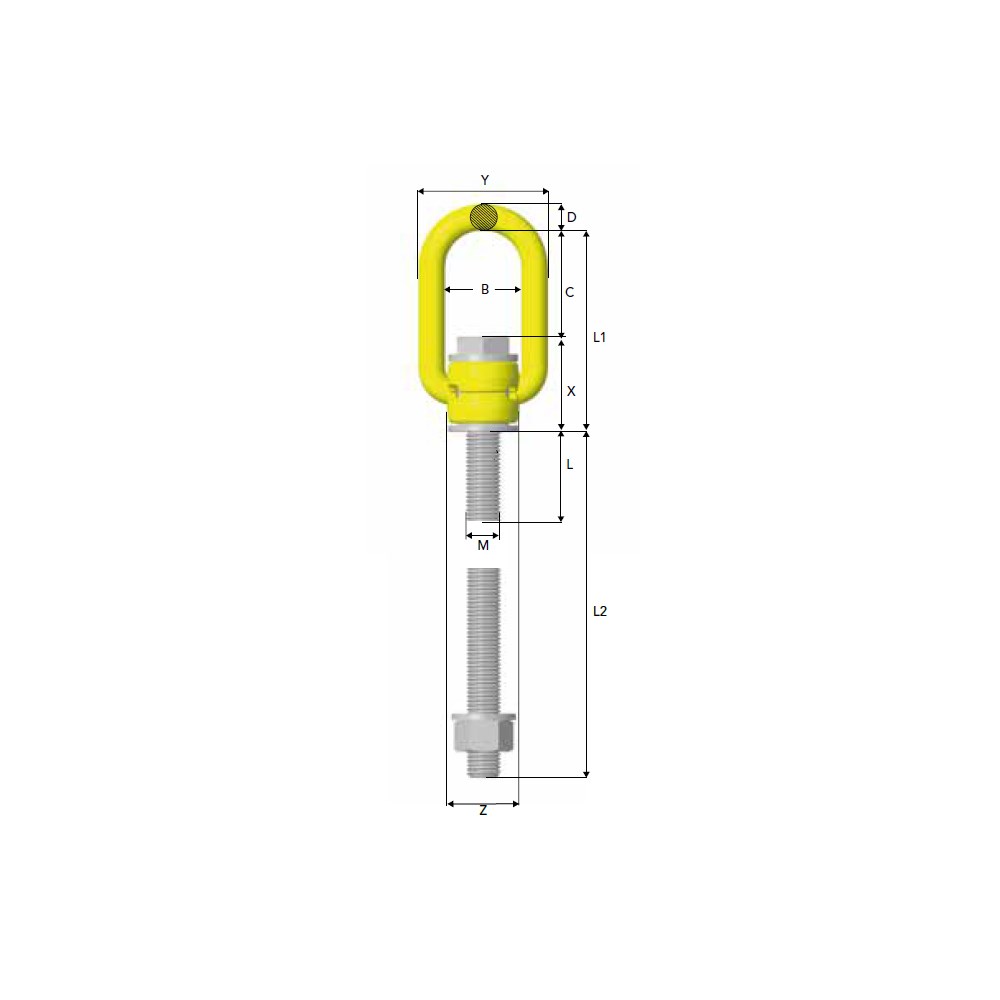

DLP Ring Bolt Lift Point Long M10 Long Bolt (97.5mm)
Z1022100Lper Each
$161.68 inc GSTTrade $145.51, save $16.17Trade accounts save 10%. Apply with your ABN
| Variant | M10 Long Bolt (97.5mm) |
About this product
The DLP Ring Bolt Lift Point Long M10 Long Bolt (97.5mm) is a bolt-on lifting point for threaded loads, and the extra 97.5mm bolt length suits deeper threads or sections where a standard M10 shank will not reach. The housing is compact, so it works in corners and close to edges where a bigger lift point would foul. The oblong link folds flat over the housing when it is not being used, keeping it almost fully stowed and out of harm's way.
The closed link has a stay-up function that holds it upright for on-hooking, which speeds up rigging in tight spots and saves the load from hook strikes. The hexagon bolt comes off with a wrench for assembly or inspection, and it is RFID prepared. Working load limit, mounting torque and manufacturer ID are marked on the bolt itself, so the operator can check the details at the point of use.
Common questions
- what is the difference between the DLP long bolt and the standard version
- The long version has a longer shank, in this case 97.5mm on the M10, for deeper threaded holes or thicker sections. The housing and link are otherwise the same compact design.
- where do I find the WLL on a DLP ring bolt lift point
- The working load limit is marked on the bolt, along with the mounting torque and the manufacturer ID, so it stays visible to whoever is rigging the lift.
- can the DLP lift point be used in tight corners
- Yes, the compact housing is made for narrow spaces such as corners and edge positions, and the link folds over the housing when the point is idle.
