DLP Ring Bolt Lift Point M8
Z102208per Each
$136.68 inc GSTTrade $123.01, save $13.67Trade accounts save 10%. Apply with your ABN
| Variant | M8 |
About this product

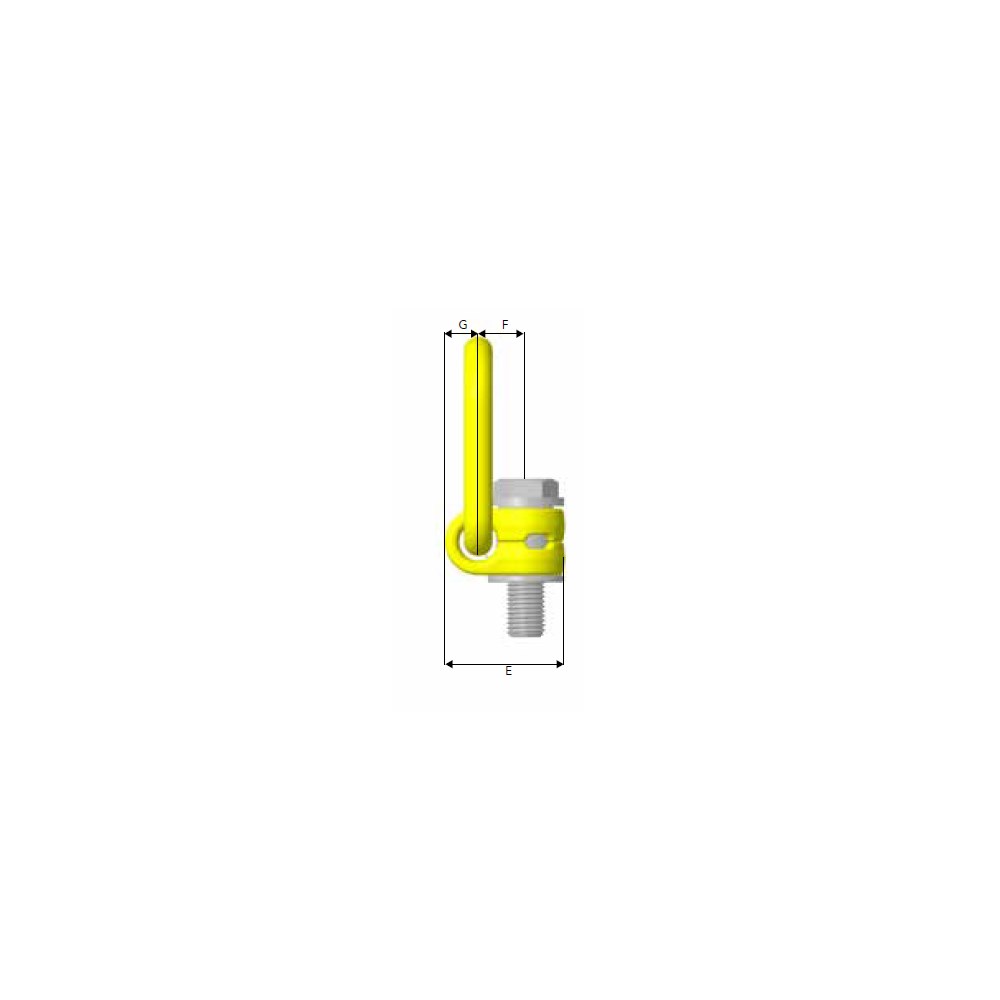

The DLP Ring Bolt Lift Point M8 is a bolt-on lifting point for fixtures, jigs and light fabricated loads where the tapped hole is M8. It is the smallest thread size in the DLP range, so it suits the lighter end of the work and the tightest spaces. The housing is kept compact, which helps when the lift point has to sit in a corner or hard up against an edge.
The oblong link folds over the housing when idle, so the point stows almost flat and stays out of harm's way between lifts. The link has a stay-up function for quick on-hooking, handy when access is limited and there is no room to fish for the link. Fitting and removal is done with a wrench on the hexagon bolt, which is RFID prepared. Working load limit, mounting torque and manufacturer ID are marked on the bolt where the operator can read them.
Common questions
- what thread size is the DLP M8 lift point
- It has an M8 thread, the smallest size in the DLP Ring Bolt Lift Point range. It bolts into an M8 tapped hole in the load.
- where do I find the working load limit on a DLP lift point
- The working load limit is marked on the hexagon bolt, along with the mounting torque and manufacturer ID, so the operator can check it on the job.
- is the DLP any good in tight corners
- Yes, the housing is a compact design made for narrow spaces such as corners and edge positions, and the link folds over the housing when the point is not in use.
