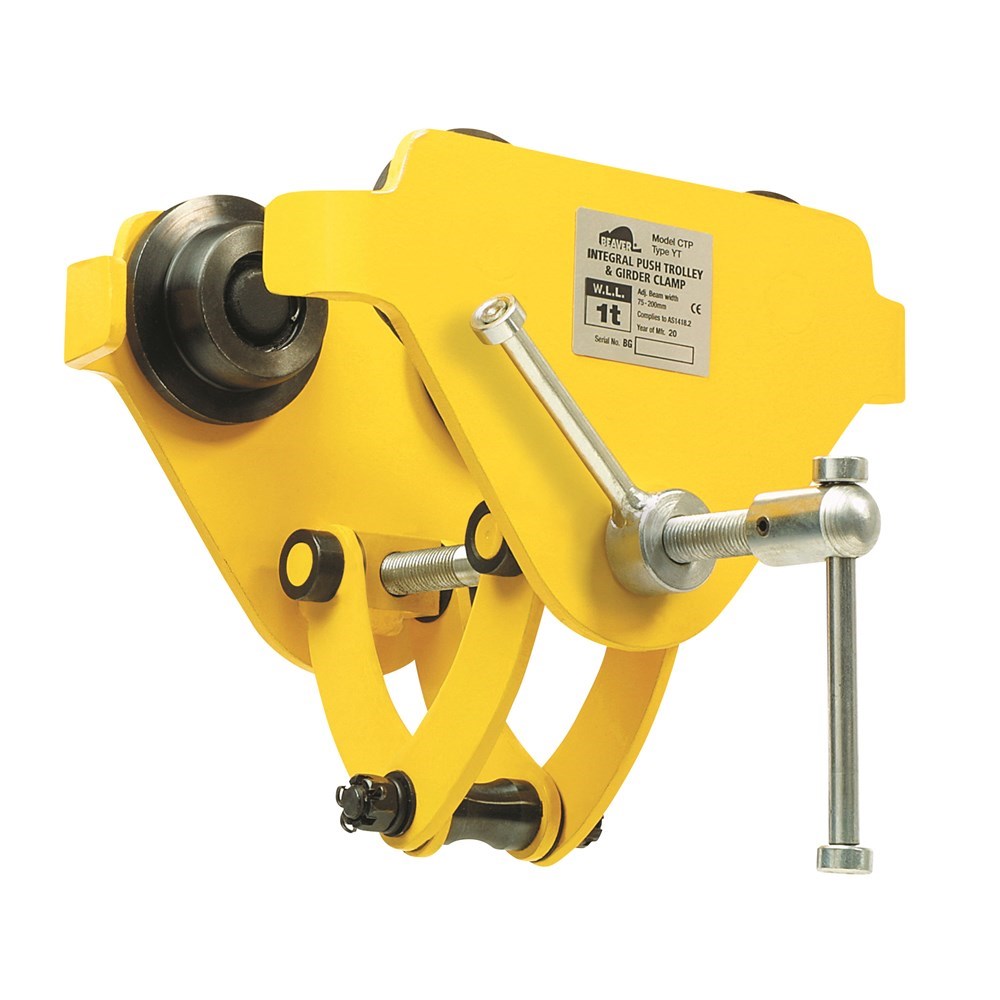

Beaver YT Integral Push Trolley and Girder Clamps (Yellow)
MH2700YTper Each
POA — add it to your list and we’ll sort you out.
About this product
The Beaver YT Integral Push Trolley and Girder Clamps give you a quick attachment point on an overhead beam so loads can be moved along it, either as a permanent mount or shifted between jobs. The integral clamp adjusts to the beam by rotating the threaded spindle, the same way the YC model works, and suits flange widths from 75mm to 200mm. The spindle is zinc plated for corrosion protection, and the locking lever tightens against the side plate to hold the adjustment where you set it.
Construction is heavy duty steel, with a built-in load bar that keeps headroom loss to a minimum in tight ceiling spaces. Every unit carries a serial number stamped on the clamp body and on the aluminium ID plate fixed to the trolley side plate, so it can be traced straight back to its test certificate. Proof load tested at manufacture, operationally tested to 150% of rated capacity, and complies to AS 1418.2.
Common questions
- what beam sizes does the Beaver YT push trolley fit
- It adjusts to flange widths and beams from 75mm to 200mm. You set it by rotating the threaded spindle, then tighten the locking lever against the side plate.
- is the Beaver YT trolley load tested
- Yes. Each one is proof load tested at the time of manufacture and operationally tested to 150% of the rated capacity, and comes with an individual test certificate.
- how do I match a Beaver girder clamp to its test certificate
- Each clamp has a serial number stamped on the body and on the aluminium ID plate mounted to the trolley side plate. That number matches the product's test certificate.
Full specifications
| Product Code | WLL | Net Weight | Beam Width | Model Type |
|---|---|---|---|---|
| 270010YT | 1t | 9.4kg | 75-200mm | YT |
| 270020YT | 2t | 9.9kg | 75-200mm | YT |
| Product Code | WLL | A | D | E | I | L | L1 | M | O | P | T | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270010YT | 1t | 80-152mm | 42mm | 20mm | 71.5mm | 260mm | 130mm | 16mm | 60mm | 195mm | 155mm | 25mm |
| 270020YT | 2t | 106-155mm | 42mm | 20mm | 71.5mm | 260mm | 130mm | 18mm | 60mm | 205mm | 139mm | 25mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
