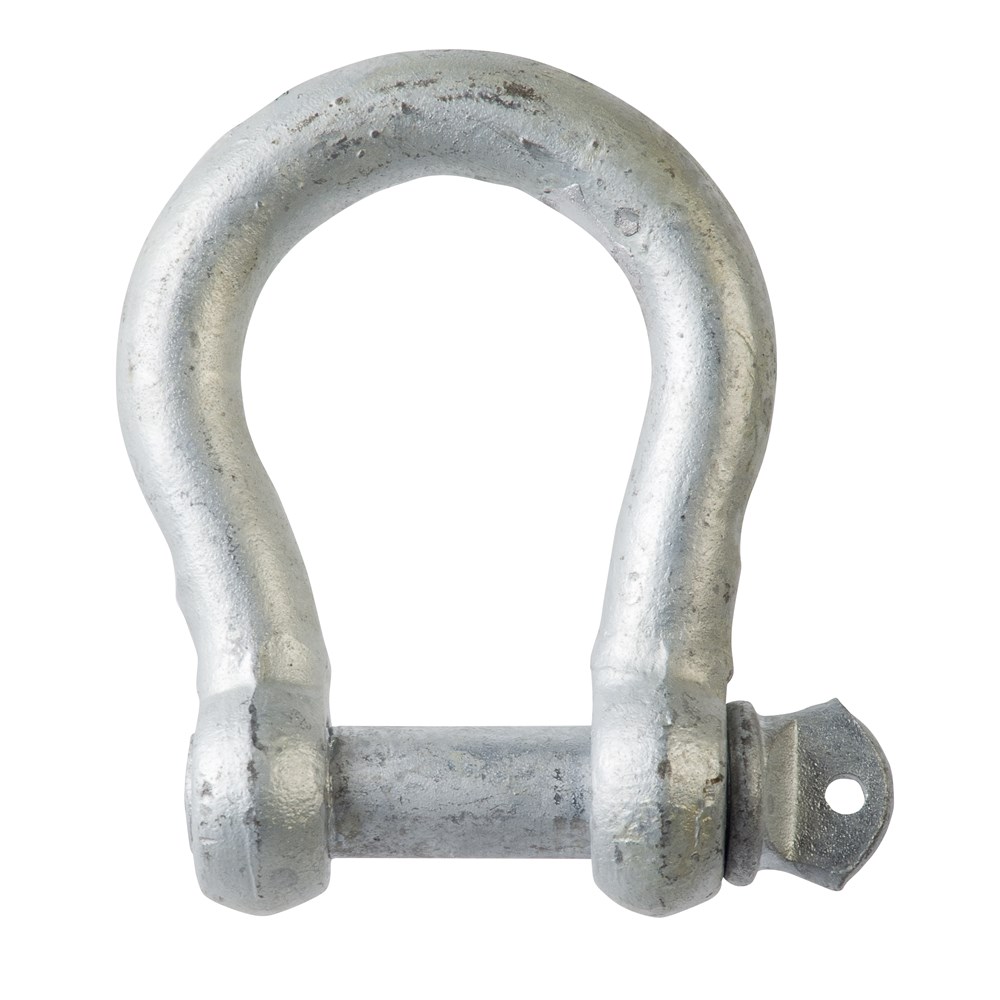

The Beaver Hot Dipped Galvanised Commercial Bow Shackles are screw pin bow shackles for general tie-down and restraint jobs around the yard, the truck or the site. The wide bow gives you room to take a sling eye, a chain end or multiple legs without crowding the pin. Hot dipped galvanising handles the weather and the wash-downs better than bare steel, so they hold up in the tray of a ute and outside in the Perth sun.
Worth being clear on one point. These are commercial shackles and they are not recommended for lifting, so keep them off the crane hook and use rated lifting gear for that work. Screw pin shackles suit longer-term or permanent set-ups, and they cope where the load can slide along the pin and turn it. Check the pin threads fully home each time and put aside anything bent, worn or seized.
| Product Code | Size | Finish | Shape | Closing Method |
|---|---|---|---|---|
| 205305 | 5mm | Galvanised | Bow | Screw |
| 205306 | 6mm | Galvanised | Bow | Screw |
| 205308 | 8mm | Galvanised | Bow | Screw |
| 205310 | 10mm | Galvanised | Bow | Screw |
| 205313 | 13mm | Galvanised | Bow | Screw |
| 205316 | 16mm | Galvanised | Bow | Screw |
| 205320 | 20mm | Galvanised | Bow | Screw |
| 205325 | 25mm | Galvanised | Bow | Screw |
| Product Code | Size | W | L | D | d | B | F |
|---|---|---|---|---|---|---|---|
| 205305 | 5mm | 11mm | 22mm | 7mm | 4.5mm | 16mm | 11mm |
| 205306 | 6mm | 13mm | 26mm | 7mm | 5.5mm | 20mm | 12mm |
| 205308 | 8mm | 18mm | 31mm | 9mm | 7.8mm | 24mm | 16mm |
| 205310 | 10mm | 19mm | 38mm | 11mm | 9.8mm | 30mm | 18mm |
| 205313 | 13mm | 29mm | 55mm | 15mm | 13mm | 38mm | 26mm |
| 205316 | 16mm | 33mm | 58mm | 18mm | 15.5mm | 45mm | 29mm |
| 205320 | 20mm | 39mm | 76mm | 22mm | 19mm | 56mm | 33mm |
| 205325 | 25mm | 50mm | 96mm | 27mm | 24mm | 76mm | 45mm |
