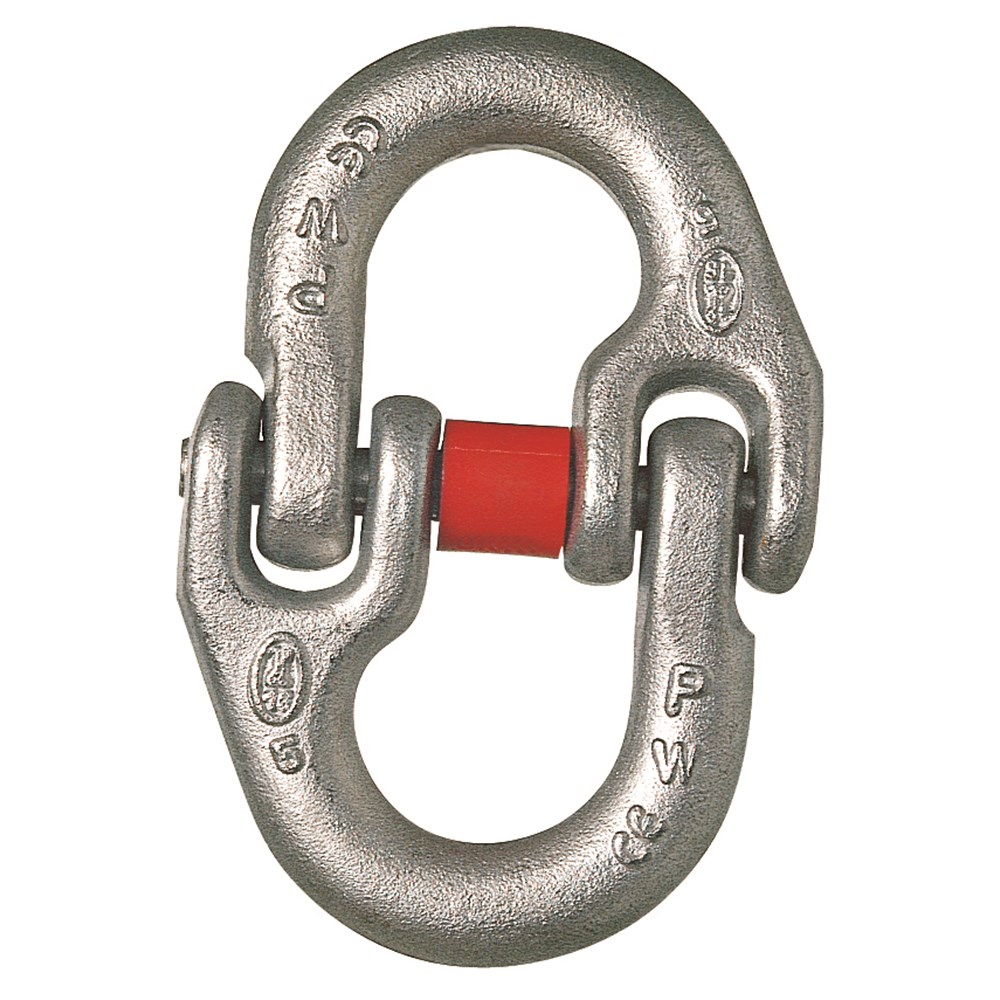

Beaver G50 Stainless Steel Connecting Link 5mm
CWI5per Each
$104.38 inc GSTTrade $93.94, save $10.44Trade accounts save 10%. Apply with your ABN
| b | 34.4mm |
| c | 7mm |
| d | 7mm |
| e | 36mm |
| g | 12.7mm |
| s | 9.5mm |
| WLL | 0.5t |
| Chain Size | 5mm |
| Approx Weight | 0.05kg |
About this product
The Beaver G50 Stainless Steel Connecting Link 5mm joins chain to fittings or chain to chain where rust is the main enemy. It suits 5mm chain, carries a working load limit of 500kg, and weighs around 0.05kg, so it adds next to nothing to a light assembly. Body dimensions run 34.4mm across the b measurement and 36mm on e, with 7mm through both c and d, a 12.7mm g and 9.5mm s.
G316 stainless holds up in water treatment plants, marine and offshore work, waste management and food processing, where galvanised gear pits and stains. It handles high temperatures and cleans up easily, which matters on wash down jobs. Beaver Grade 50 components are tested in accordance with AS4797 and carry distinguishing marks for identification. Check the link body for wear, stretch or pitting before each lift.
Common questions
- what is the WLL of a 5mm G50 stainless connecting link
- The working load limit is 0.5t, or 500kg. That applies to the 5mm chain size.
- what chain size does the Beaver CWI5 connecting link fit
- It is made for 5mm chain. Key dimensions are 34.4mm on b, 36mm on e, 7mm through c and d, 12.7mm g and 9.5mm s.
- is a stainless connecting link better than galvanised for marine work
- For marine and offshore, water treatment, waste management and food processing, the G316 stainless version resists corrosion far better and is easier to clean down.
Full specifications
| Product Code | Chain Size | WLL | e | c | b | g | s | d | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| CWI5 | 5mm | 0.5t | 36mm | 7mm | 34.4mm | 12.7mm | 9.5mm | 7mm | 0.05kg |
| CWI10 | 10mm | 2t | 73mm | 13mm | 69.8mm | 24.6mm | 18mm | 13mm | 0.33kg |
