Beaver G80 Single and Double Leg Chain Sling With Clevis Sling Hook 2 Leg x 10mm x 1m
CSA10217525per Each
$263.39 inc GSTTrade $237.05, save $26.34Trade accounts save 10%. Apply with your ABN
| Chain Size | 10mm |
| Effective Length | 1m |
| Chain Sling Configuration | 2 Leg |
| Single-Leg Specifications | 10mm |
About this product

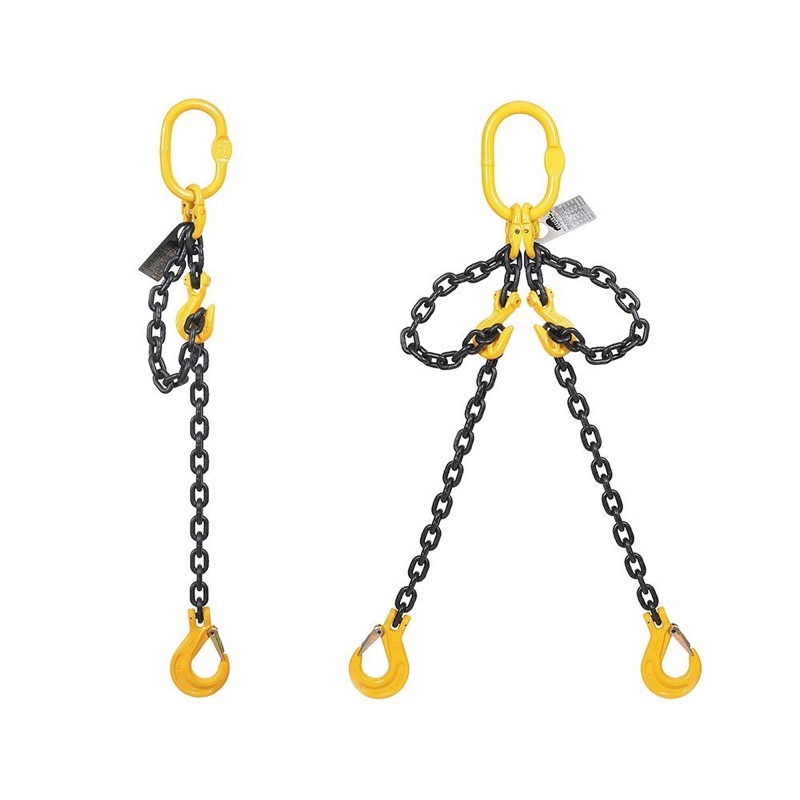

The Beaver G80 Single and Double Leg Chain Sling With Clevis Sling Hook in the 2 leg, 10mm x 1m build is a pre-assembled lifting sling for two point pick ups where you want the load balanced and the headroom kept tight. The 1m effective length is the short option in the range, so it suits low headroom work under a hook block or on a gantry. Both legs run 10mm heat treated alloy steel chain with clevis sling hooks fitted straight to the chain.
Grade 80 chain and components throughout, certified to AS 3775.1, with the chain complying to AS 2321 and the components to AS 3776. Chain and fittings carry markings for traceability, so you can tie a sling back to its paperwork at inspection time. Arrives assembled and tested, ready to tag and put into service. Other leg counts, chain sizes and lengths are available if this one does not match the job.
Common questions
- what is a 10mm 2 leg grade 80 chain sling used for
- Two point lifts where the load needs to sit level under the hook, using 10mm Grade 80 alloy steel chain. The 1m effective length keeps things compact in low headroom.
- what standard does the beaver g80 chain sling comply with
- Each sling is certified to AS 3775.1, with the chain complying to AS 2321 and the Grade 80 components to AS 3776.
- is a 1m chain sling long enough for my lift
- At 1m effective length it is the shortest build in this range, best for tight headroom. Longer effective lengths are available in the same 10mm two leg configuration.
Full specifications
| Product code | Single-Leg Specifications | ||
|---|---|---|---|
| Chain Size | Effective Length | WLL No Deration | |
| CSA08117525 | 8mm | 1m | 2t |
| CSA08127525 | 8mm | 2m | 2t |
| CSA08137525 | 8mm | 3m | 2t |
| CSA10117525 | 10mm | 1m | 3.2t |
| CSA10127525 | 10mm | 2m | 3.2t |
| CSA10137525 | 10mm | 3m | 3.2t |
| Double-Leg Specifications | |||
| Chain Size | Effective Length | WLL at 60°C No Deration | |
| CSA08217525 | 8mm | 1m | 3.5t |
| CSA08227525 | 8mm | 2m | 3.5t |
| CSA08237525 | 8mm | 3m | 3.5t |
| CSA08247525 | 8mm | 4m | 3.5t |
| CSA08267525 | 8mm | 6m | 3.5t |
| CSA10217525 | 10mm | 1m | 5.5t |
| CSA10227525 | 10mm | 2m | 5.5t |
| CSA10237525 | 10mm | 3m | 5.5t |
| CSA10247525 | 10mm | 4m | 5.5t |
| CSA10267525 | 10mm | 6m | 5.5t |
| CSA13217525 | 13mm | 1m | 9.2t |
| CSA13237525 | 13mm | 3m | 9.2t |
| CSA13247525 | 13mm | 4m | 9.2t |
Questions about this equipment? Send us a message and we’ll check it against the job.
