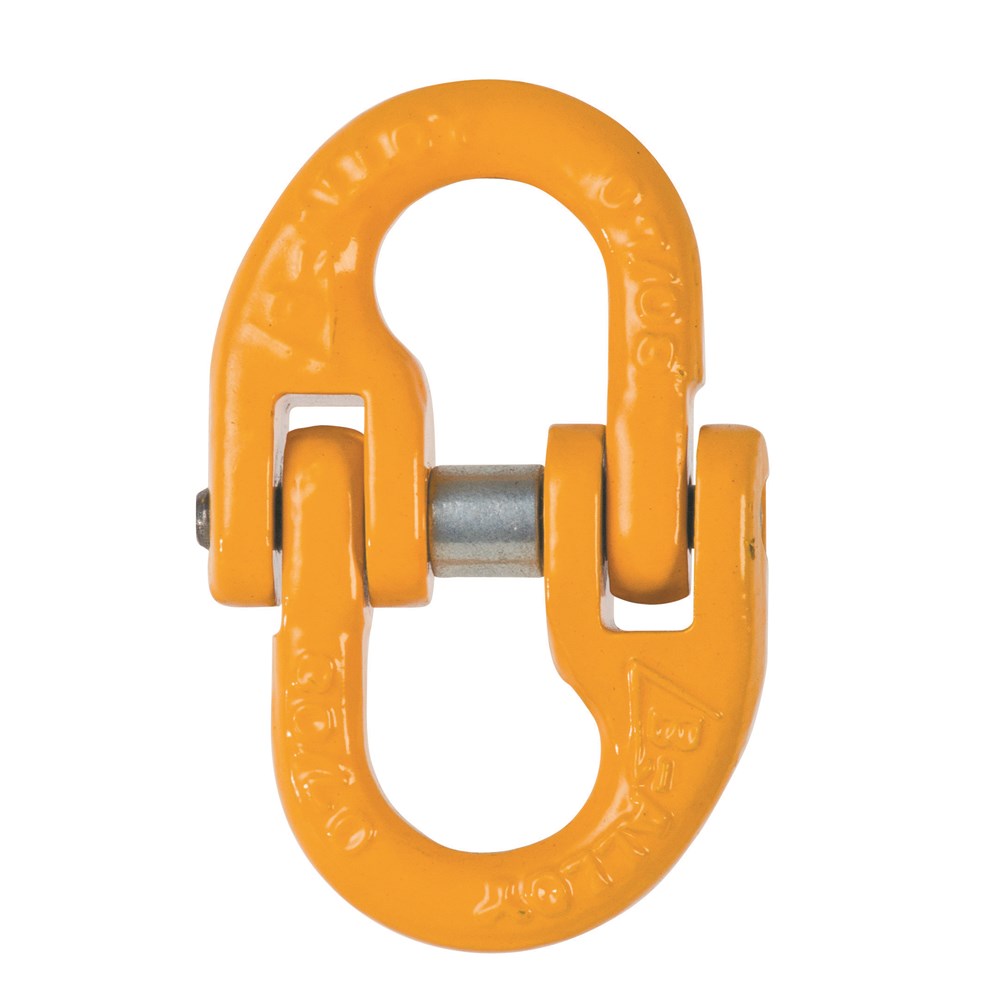

Beaver G80 Component Connector 6mm
C6per Each
$6.60 inc GSTTrade $5.94, save $0.66Trade accounts save 10%. Apply with your ABN
| b (mm) | 46 |
| c (mm) | 7 |
| d (mm) | 6.3 |
| e (mm) | 44 |
| g (mm) | 20 |
| s (mm) | 11 |
| WLL (KG) | 1100 |
| Chain Size | 6mm |
| Chain Size (mm) | 6 |
| Approx Weight (kg) | 0.08 |
| Replacement Pin and Stud Kit | 894206BA |
About this product
The Beaver G80 Component Connector 6mm is a two-part coupler for joining 6mm Grade 80 chain to hooks, links and slings. It is the smallest size in the range, rated to a 1100kg working load limit, and at roughly 0.08kg it adds almost nothing to the weight of a light chain sling. Two symmetrical die-forged halves close around the chain and lock together with a heavy duty stud and pin.
Built from heat treated alloy steel, with a 7mm body thickness, 46mm across and 44mm long, it handles repeat assembly work without becoming a fiddle. The pin and stud can be knocked out when you need to change a component, and a replacement kit is available under 894206BA. Beaver Grade 80 components carry identification marks, and this connector complies to AS 3776.
Common questions
- what is the WLL of a 6mm G80 component connector
- The 6mm Beaver G80 Component Connector has a working load limit of 1100kg.
- what chain size does the Beaver C6 connector suit
- It suits 6mm Grade 80 chain. The wider Beaver range covers chain sizes up to 32mm.
- can you replace the pin and stud on a Beaver G80 connector
- Yes. The stud and pin can be disconnected, and the replacement pin and stud kit for this size is part number 894206BA.
Full specifications
| Product code | Chain Size (mm) | WLL (KG) | b (mm) | c (mm) | e (mm) | g (mm) | d (mm) | s (mm) | Approx Weight (kg) | Replacement Pin and Stud Kit |
|---|---|---|---|---|---|---|---|---|---|---|
| C6 | 6 | 1100 | 46 | 7 | 44 | 20 | 6.3 | 11 | 0.08 | 894206BA |
| C7-8 | 7-8 | 2000 | 55 | 9 | 60.5 | 20.5 | 8.8 | 14.8 | 0.15 | 894208BA |
| C10 | 10 | 3200 | 69 | 12 | 68 | 26 | 11.5 | 17.8 | 0.30 | 894210BA |
| C13 | 13 | 5300 | 86.6 | 15 | 87 | 30 | 15 | 25 | 0.63 | 894213BA |
| C16 | 16 | 8000 | 103 | 19.8 | 108.4 | 35 | 19.8 | 30 | 1.20 | 894216BA |
| C20 | 20 | 12500 | 120 | 24 | 121.5 | 41.8 | 22 | 34 | 2.10 | 894220BA |
| C22 | 22 | 15000 | 147 | 26 | 141.5 | 49.5 | 26 | 40 | 3.10 | 894222BA |
| C26 | 26 | 21200 | 174 | 31 | 158 | 58 | 30 | 44 | 4.50 | 894226BA |
| C32 | 32 | 31500 | 214 | 38 | 205 | 67.5 | 37 | 56 | 8.21 | 894232BA |
