Beaver Electric Three Phase Winches 2.2t
BPL3220per Each
$19427.10 inc GSTTrade $17484.39, save $1942.71Trade accounts save 10%. Apply with your ABN
| % ED | 25 |
| Speed | 7-12.5m/min |
| Weight | 450kg |
| Motor Power | 7.5HP |
| Rated Capacity | 2.2t |
| Effective Pull Height | 97m |
| Wire Rope Diameter x Length | 16mm x 100mm |
About this product

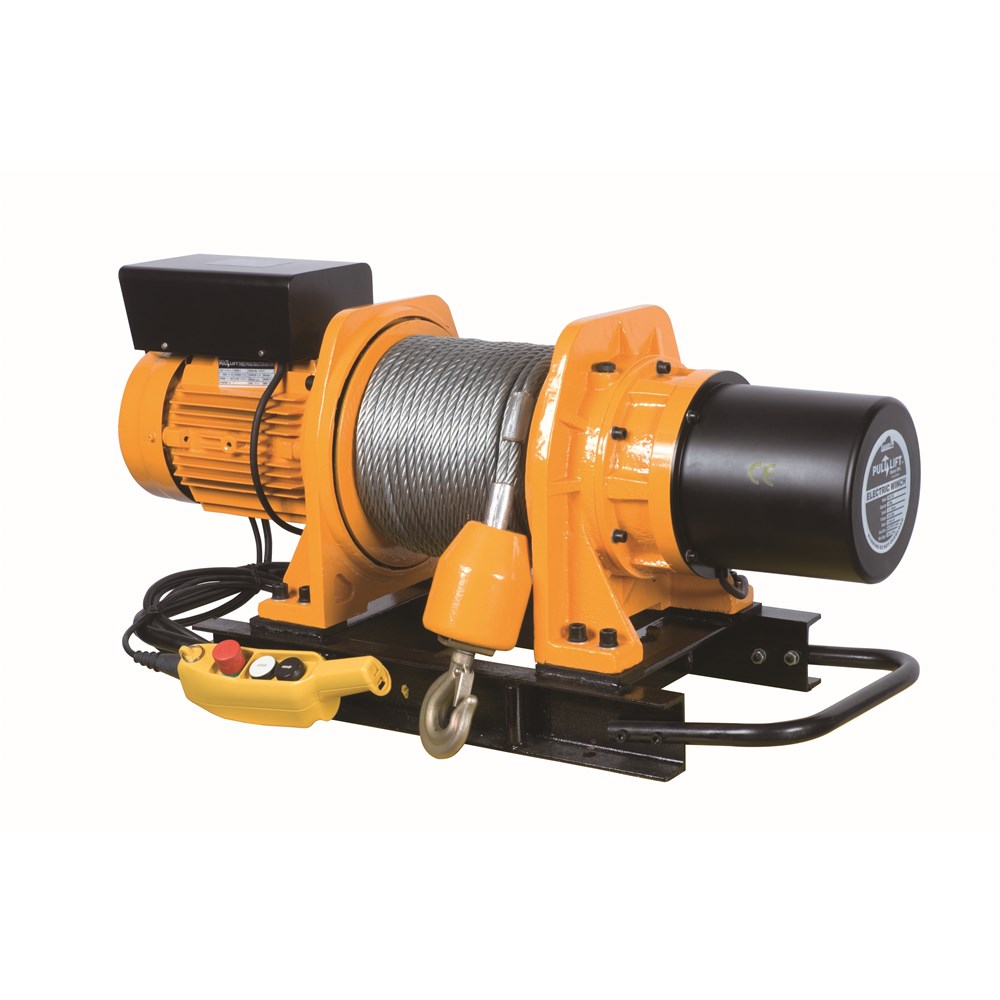

The Beaver Electric Three Phase Winches 2.2t is the heavy end of the range, built for pulling and lifting loads up to 2.2t on building sites, slipways and industrial jobs. A 7.5HP motor drives line speeds of 7 to 12.5m/min at 25% ED, running 16mm wire rope with an effective pull height of 97m. At 450kg it is the one you bolt down and leave in place, sitting on cast steel foot mountings.
Control is through a 24V IP65 pendant with an emergency stop, so the operator can stand clear of the load. An automatic load brake and overload clutch handle the holding and the accidental overpull, and the wire rope is retained on the drum by set screw. Quality seals keep the muck out. Complies to AS1418.2.
Common questions
- what is the lifting capacity of the beaver bpl3220 winch
- It has a rated capacity of 2.2t. That is the largest of the three sizes in the Beaver Electric Three Phase Winches range.
- how fast does the beaver 2.2t three phase winch pull
- Line speed runs between 7 and 12.5m/min, with a duty rating of 25% ED driven by the 7.5HP motor.
- how much wire rope does the beaver 2.2t winch take
- It runs 16mm wire rope with an effective pull height of 97m, and the rope is held to the drum by a set screw for retention.
Full specifications
| Product Code | Rated Capacity | Speed | Motor Power | % ED | Effective Pull Height | Wire Rope Diameter x Length | Weight |
|---|---|---|---|---|---|---|---|
| BPL3050 | 0.5t | 12-18m/min | 2.5HP | 25 | 58m | 9mm x 60mm | 136kg |
| BPL3100 | 1t | 12-18m/min | 5HP | 25 | 58m | 11mm x 60mm | 156kg |
| BPL3220 | 2.2t | 7-12.5m/min | 7.5HP | 25 | 97m | 16mm x 100mm | 450kg |
| Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 0.5t | 4 x 10.5D | 400mm | 330mm | 922mm | 372mm | 430mm |
| 1t | 4 x 10.5D | 400mm | 330mm | 935mm | 372mm | 430mm |
| 2.2t | 4 x 12D | 600mm | 499mm | 1160mm | 565mm | 658mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
