Beaver Electric Three Phase Winches 1t
BPL3100per Each
$7882.29 inc GSTTrade $7094.06, save $788.23Trade accounts save 10%. Apply with your ABN
| % ED | 25 |
| Speed | 12-18m/min |
| Weight | 156kg |
| Motor Power | 5HP |
| Rated Capacity | 1t |
| Effective Pull Height | 58m |
| Wire Rope Diameter x Length | 11mm x 60mm |
About this product

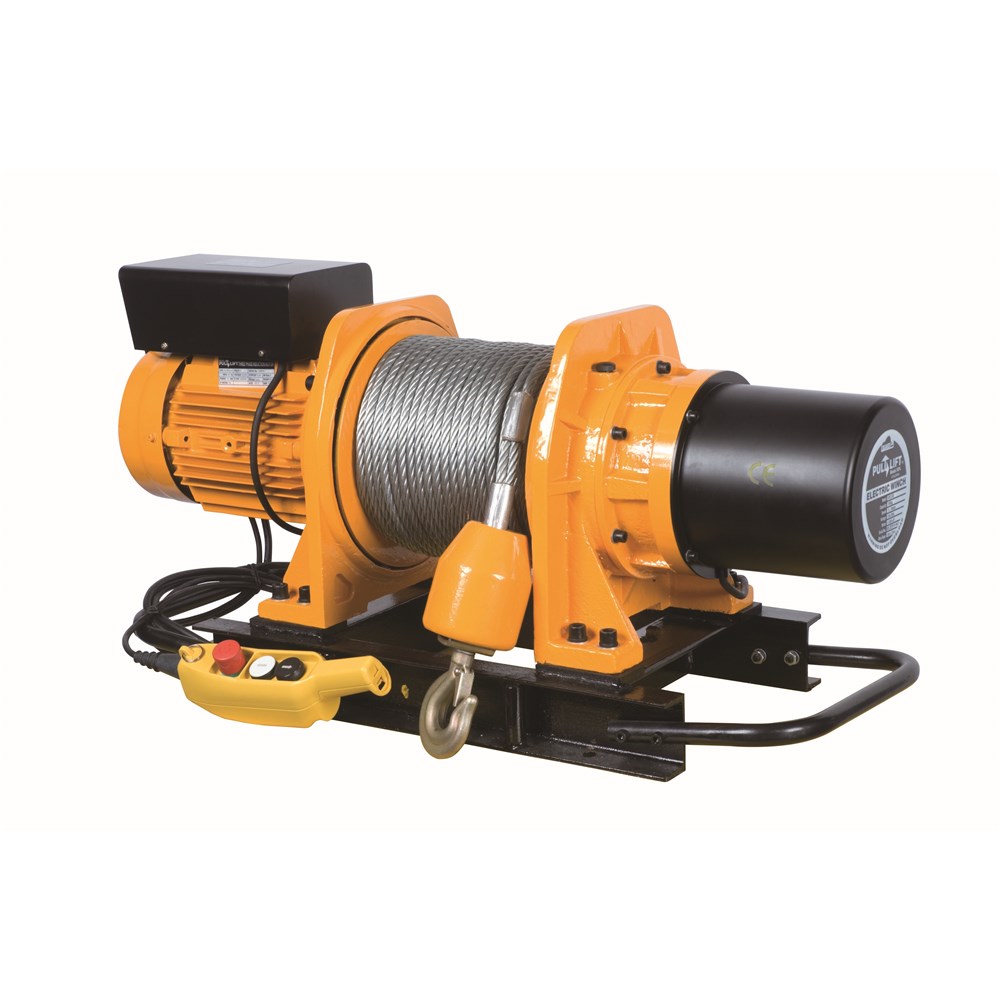

The Beaver Electric Three Phase Winches 1t is the middle-weight pulling and lifting winch in the Beaver three phase range, rated to 1t with a 5HP motor behind it. Line speed runs 12-18m/min on a 25% ED duty rating, and the 11mm wire rope gives an effective pull height of 58m. At 156kg it is heavier than the smaller model, so plan your mounting and handling accordingly.
Control is through a 24V IP65 pendant with an emergency stop, and the drum runs an automatic load brake plus an overload clutch. The rope is held to the drum with a set screw for retention, and cast steel foot mountings bolt it down solid. Quality seals and a compact build suit it to building sites, slipways and general industrial work. Complies to AS1418.2.
Common questions
- what is the lifting capacity of the Beaver BPL3100 winch
- It has a rated capacity of 1t. Line speed is 12-18m/min with a 25% ED duty rating.
- how much rope does the Beaver 1t three phase winch pull
- Effective pull height is 58m on 11mm diameter wire rope.
- what power supply does the Beaver 1t electric winch need
- It runs on three phase power with a 5HP motor, and the pendant control is 24V rated to IP65.
Full specifications
| Product Code | Rated Capacity | Speed | Motor Power | % ED | Effective Pull Height | Wire Rope Diameter x Length | Weight |
|---|---|---|---|---|---|---|---|
| BPL3050 | 0.5t | 12-18m/min | 2.5HP | 25 | 58m | 9mm x 60mm | 136kg |
| BPL3100 | 1t | 12-18m/min | 5HP | 25 | 58m | 11mm x 60mm | 156kg |
| Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 0.5t | 4 x 10.5D | 400mm | 330mm | 922mm | 372mm | 430mm |
| 1t | 4 x 10.5D | 400mm | 330mm | 935mm | 372mm | 430mm |
