what can the Beaver BPL3050 winch lift

It has a rated capacity of 0.5t, so 500kg. The 2.5HP motor pulls at 12 to 18m/min.

how much wire rope does the 0.5t Beaver three phase winch have

It runs 9mm diameter wire rope with an effective pull height of 58m. The rope is secured to the drum with a set screw for rope retention.

is the Beaver 0.5t winch different from the bigger sizes in the range

It is the smallest of the three sizes, at 136kg with a 0.5t rated capacity and a 2.5HP motor, so it is the easier one to shift and mount.

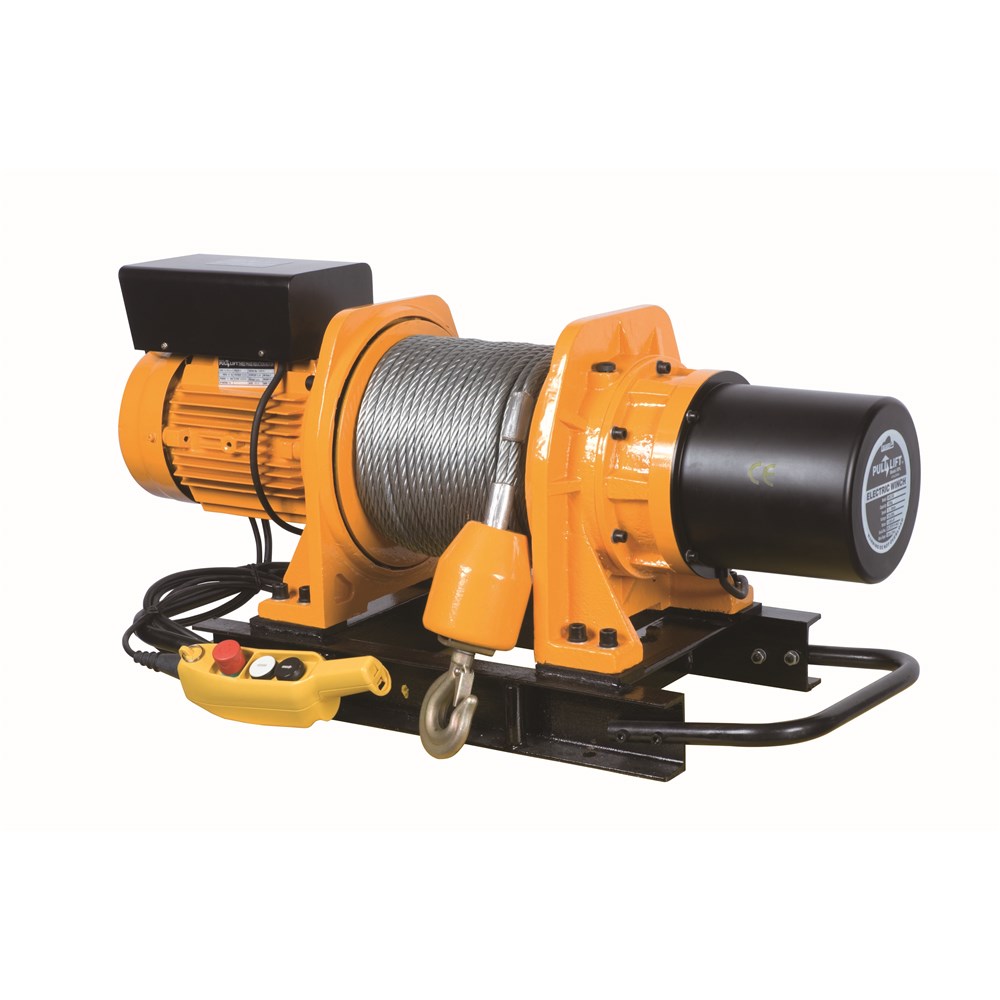

Beaver Electric Three Phase Winches 0.5t

Name: Beaver Electric Three Phase Winches 0.5t
Brand: Beaver
SKU: BPL3050
Price: 5379.00 AUD
Availability: InStock

BPL3050per Each

Rated Capacity

$5379.00 inc GSTTrade $4841.10, save $537.90Trade accounts save 10%. Apply with your ABN

% ED	25
Speed	12-18m/min
Weight	136kg
Motor Power	2.5HP
Rated Capacity	0.5t
Effective Pull Height	58m
Wire Rope Diameter x Length	9mm x 60mm

About this product

The Beaver Electric Three Phase Winches 0.5t is a mains powered pulling and lifting winch for building sites, slipways and general industrial work. This is the lightest of the three sizes in the range at 136kg, with a 500kg rated capacity driven by a 2.5HP motor. Line speed runs 12 to 18m/min and the 9mm wire rope gives an effective pull height of 58m. Duty cycle is 25% ED.

Control is through a 24V IP65 pendant with an emergency stop. An automatic load brake and overload clutch look after the load, and the rope is fixed to the drum with a set screw so it stays put. Cast steel foot mountings let you bolt it down solid. Complies to AS1418.2.

Common questions

what can the Beaver BPL3050 winch lift: It has a rated capacity of 0.5t, so 500kg. The 2.5HP motor pulls at 12 to 18m/min.
how much wire rope does the 0.5t Beaver three phase winch have: It runs 9mm diameter wire rope with an effective pull height of 58m. The rope is secured to the drum with a set screw for rope retention.
is the Beaver 0.5t winch different from the bigger sizes in the range: It is the smallest of the three sizes, at 136kg with a 0.5t rated capacity and a 2.5HP motor, so it is the easier one to shift and mount.

Full specifications

Product Code	Rated Capacity	Speed	Motor Power	% ED	Effective Pull Height	Wire Rope Diameter x Length	Weight
BPL3050	0.5t	12-18m/min	2.5HP	25	58m	9mm x 60mm	136kg
BPL3100	1t	12-18m/min	5HP	25	58m	11mm x 60mm	156kg

Rated Capacity	A	B	C	D	E	F
0.5t	4 x 10.5D	400mm	330mm	922mm	372mm	430mm
1t	4 x 10.5D	400mm	330mm	935mm	372mm	430mm
