how much can a beaver 0.3t electric winch pull

It has a rated capacity of 0.3t, driven by a 1.5HP 240v motor at a duty cycle of 25% ED.

how long is the wire rope on the BPL1030 winch

It runs 7mm x 30mm wire rope, giving an effective pull height of 29m.

what is the difference between the two beaver single phase winch sizes

This one is the 0.3t model, weighing 49kg with a 1.5HP motor and line speed of 10-15m/min. The other size in the range carries a higher rated capacity.

Beaver Electric Single Phase Winches - 240v 0.3t

Name: Beaver Electric Single Phase Winches - 240v 0.3t
Brand: Beaver
SKU: BPL1030
Price: 2157.24 AUD
Availability: InStock

BPL1030per Each

Rated Capacity

$2157.24 inc GSTTrade $1941.52, save $215.72Trade accounts save 10%. Apply with your ABN

% ED	25
Speed	10-15m/min
Weight	49kg
Motor Power	1.5HP
Rated Capacity	0.3t
Effective Pull Height	29m
Wire Rope Diameter x Length	7mm x 30mm

About this product

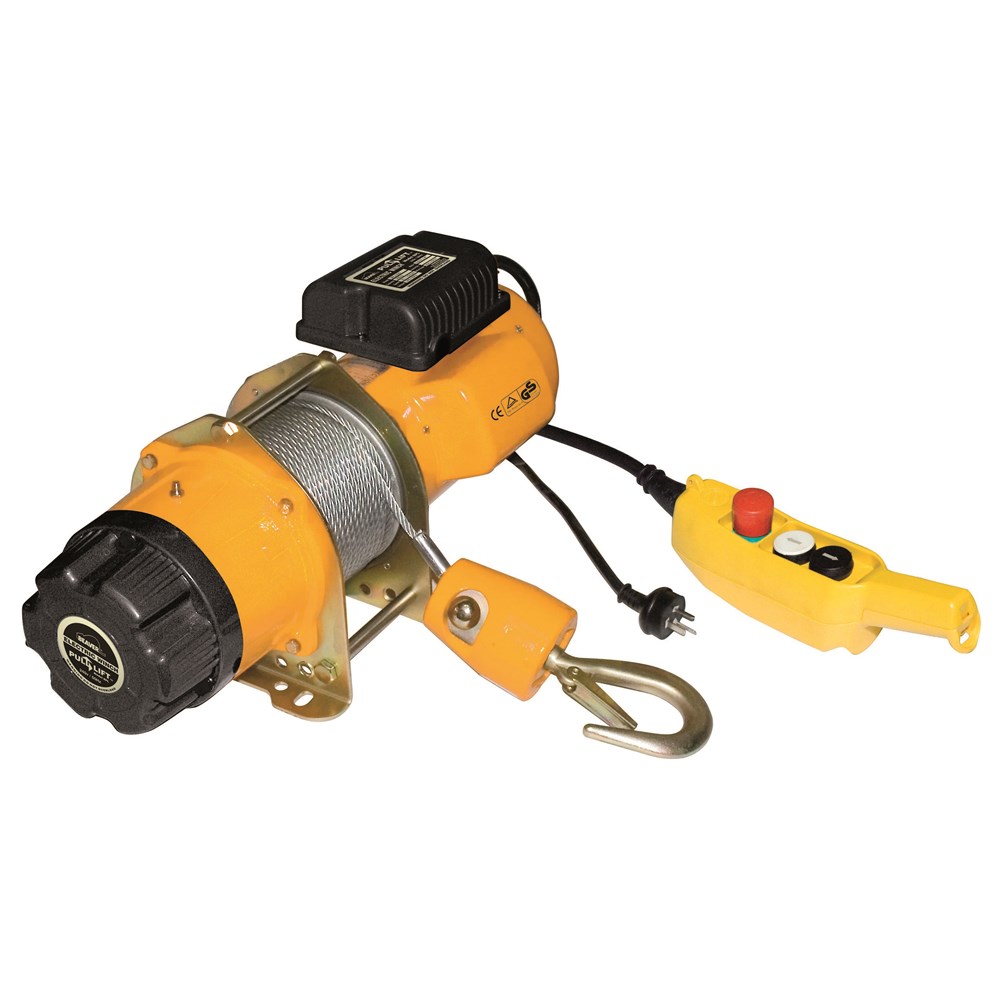

The Beaver Electric Single Phase Winches - 240v 0.3t is a mains powered hauling winch for dragging loads, cables and gear where you have a standard 240v outlet. It is the lighter of the two sizes in the range at 49kg, with a 0.3t rated capacity and a 1.5HP motor running at 25% ED. Line speed sits between 10 and 15m/min, and the 7mm x 30mm wire rope gives an effective pull height of 29m.

Control is through a 24V IP65 pendant with an emergency stop, so the operator can stand clear of the load. Cast steel foot mountings suit a permanent set up such as a boat ramp or a workshop bay, and the enclosed drum flanges stop the rope jamming between the drum and the support plates. Complies to AS1418.2 Section 8.

Common questions

how much can a beaver 0.3t electric winch pull: It has a rated capacity of 0.3t, driven by a 1.5HP 240v motor at a duty cycle of 25% ED.
how long is the wire rope on the BPL1030 winch: It runs 7mm x 30mm wire rope, giving an effective pull height of 29m.
what is the difference between the two beaver single phase winch sizes: This one is the 0.3t model, weighing 49kg with a 1.5HP motor and line speed of 10-15m/min. The other size in the range carries a higher rated capacity.

Full specifications

Product Code	Rated Capacity	Speed	Motor Power	% ED	Effective Pull Height	Wire Rope Diameter x Length	Weight
BPL1025	0.25t	10-15m/min	1.0HP	25	29m	6mm x 30mm	40kg
BPL1030	0.3t	10-15m/min	1.5HP	25	29m	7mm x 30mm	49kg

Rated Capacity	A	B	C	D	E	F
0.25t	4mm x 10.5D	142mm	142mm	525mm	210mm	246mm
0.3t	4mm x 10.5D	172mm	142mm	540mm	210mm	246mm

Questions about this equipment? Send us a message and we’ll check it against the job.
