Beaver Electric Single Phase Winches - 240v 0.25t
BPL1025per Each
$1831.88 inc GSTTrade $1648.69, save $183.19Trade accounts save 10%. Apply with your ABN
| % ED | 25 |
| Speed | 10-15m/min |
| Weight | 40kg |
| Motor Power | 1.0HP |
| Rated Capacity | 0.25t |
| Effective Pull Height | 29m |
| Wire Rope Diameter x Length | 6mm x 30mm |
About this product

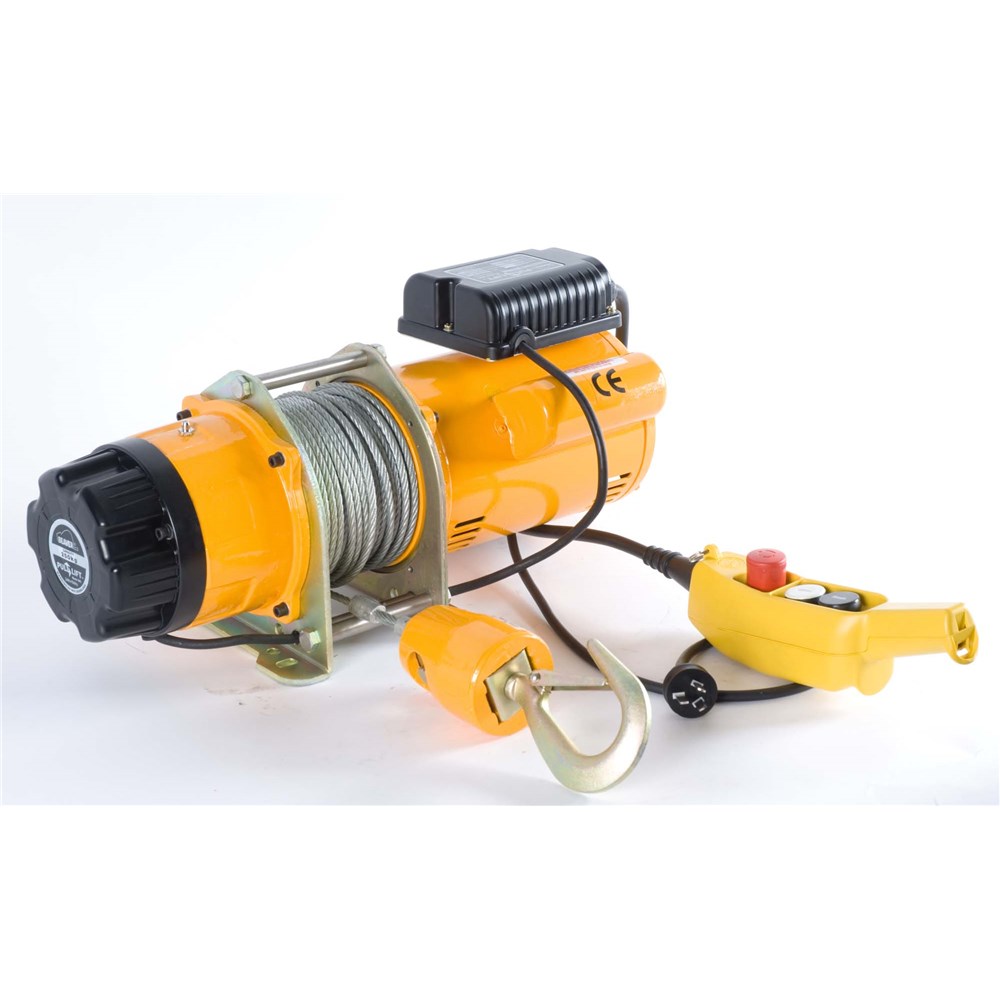

The Beaver Electric Single Phase Winch 240v 0.25t is a mains-powered hauling winch for pulling loads, cables and gear where you have a standard 240V outlet. This is the smaller of the two sizes in the range, rated to 0.25t with a 1.0HP motor and a line speed of 10-15m/min. At 40kg it is the lighter option, which makes fixed mounting on a boat ramp or workshop frame a simpler job.
Cast steel foot mountings and a heavy duty gearbox handle the load, and the enclosed drum flanges stop the 6mm wire rope jamming between the drum and the support plates. Effective pull height is 29m, with a 25% ED duty rating. Control is through a 24V IP65 pendant with an emergency stop. Complies to AS1418.2 Section 8.
Common questions
- how much can the Beaver BPL1025 winch lift
- It has a rated capacity of 0.25t, the smaller of the two sizes in the Beaver single phase range. Line speed is 10-15m/min.
- what power supply does the Beaver single phase winch need
- It runs off a 240V supply with a 1.0HP motor, so a standard single phase outlet suits. The pendant control is 24V and rated IP65.
- how far will the Beaver 0.25t winch pull
- Effective pull height is 29m using the 6mm wire rope. Duty rating is 25% ED, so factor in rest time on longer repeat pulls.
Full specifications
| Product Code | Rated Capacity | Speed | Motor Power | % ED | Effective Pull Height | Wire Rope Diameter x Length | Weight |
|---|---|---|---|---|---|---|---|
| BPL1025 | 0.25t | 10-15m/min | 1.0HP | 25 | 29m | 6mm x 30mm | 40kg |
| BPL1030 | 0.3t | 10-15m/min | 1.5HP | 25 | 29m | 7mm x 30mm | 49kg |
| Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 0.25t | 4mm x 10.5D | 142mm | 142mm | 525mm | 210mm | 246mm |
| 0.3t | 4mm x 10.5D | 172mm | 142mm | 540mm | 210mm | 246mm |
