Retrieval Block Arresto Cable Swivel Mount HD Hook Plastic Housing 140kG x 25m Ea
BPCGS25Rper Each
$2656.71 inc GSTTrade $2391.04, save $265.67Trade accounts save 10%. Apply with your ABN
About this product

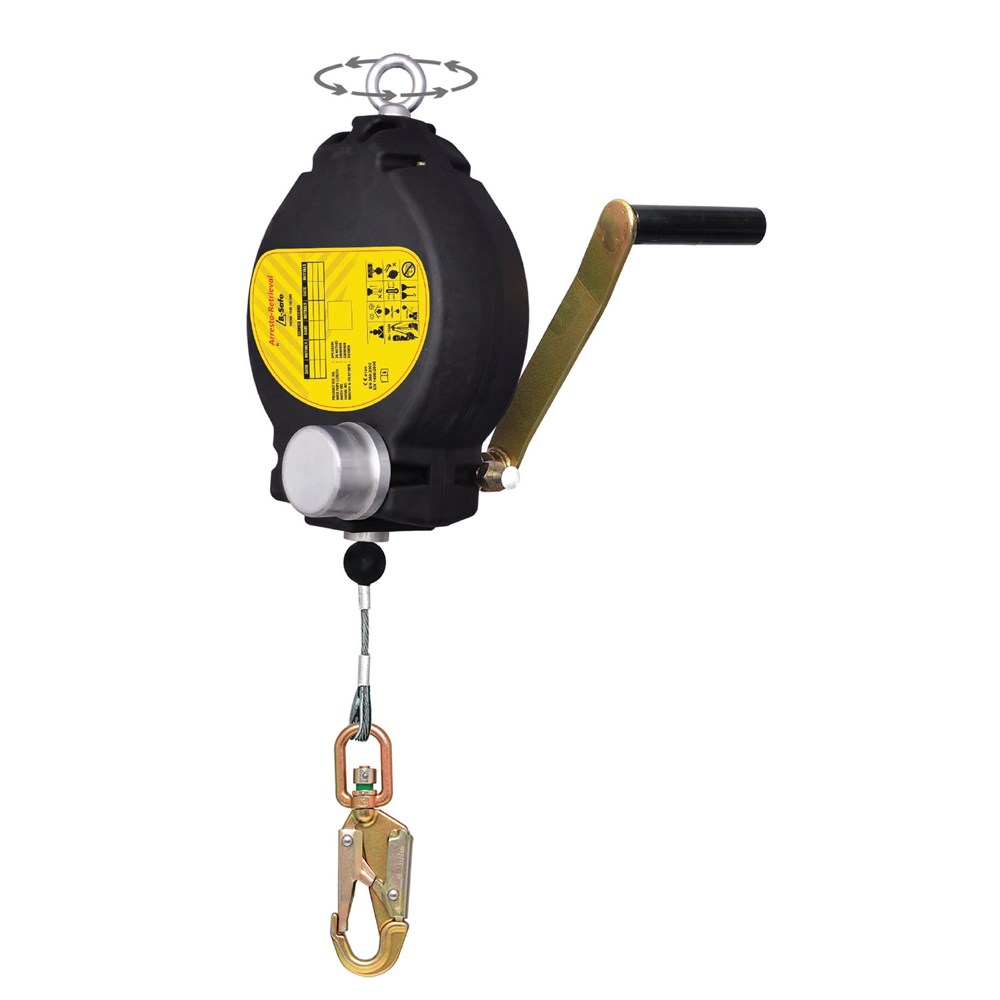

The Retrieval Block Arresto Cable Swivel Mount HD Hook Plastic Housing 140kG x 25m is a dual purpose fall arrest block with a built in hoisting winch, so a worker who has fallen can be wound back up without a second setup. A side locking pin at the base of the handle switches it between independent fall arrest and winch modes. It runs 25m of 4.5mm galvanised wire cable with a 15.3kN breaking strength, rated to 140kg.
The swivel anchorage carries a fall indicator, and the plastic casing and carry handle make it easy to move between jobs. The ANSI compliant swivel snap hook has a 20mm gate opening and 16kN gate strength. It mounts readily on tripods for confined space work. It meets EN 360 and EN1496 Class B, and under Clause 1.6 of AS/NZS1891.3, fall arrest devices complying with EN353-1, EN353-2 or EN360 are acceptable for use in Australia and New Zealand.
Common questions
- what is the weight capacity of the Arresto 25m retrieval block
- It is rated to 140kg. The 4.5mm galvanised wire cable has a 15.3kN breaking strength.
- can you winch someone up with this fall arrest block
- Yes. A side locking pin at the base of the handle lets you switch between independent fall arrest and winch mode so a fallen worker can be retrieved.
- is the Arresto retrieval block approved for use in Australia
- It meets EN 360 and EN1496 Class B. Clause 1.6 of AS/NZS1891.3 states that fall arrest devices complying with EN353-1, EN353-2 or EN360 are acceptable for use in Australia and New Zealand.
- does it fit a confined space tripod
- Yes, it is designed to be easily mounted on tripods, and the swivel anchorage with fall indicator plus the carry handle make setup and checks straightforward.
