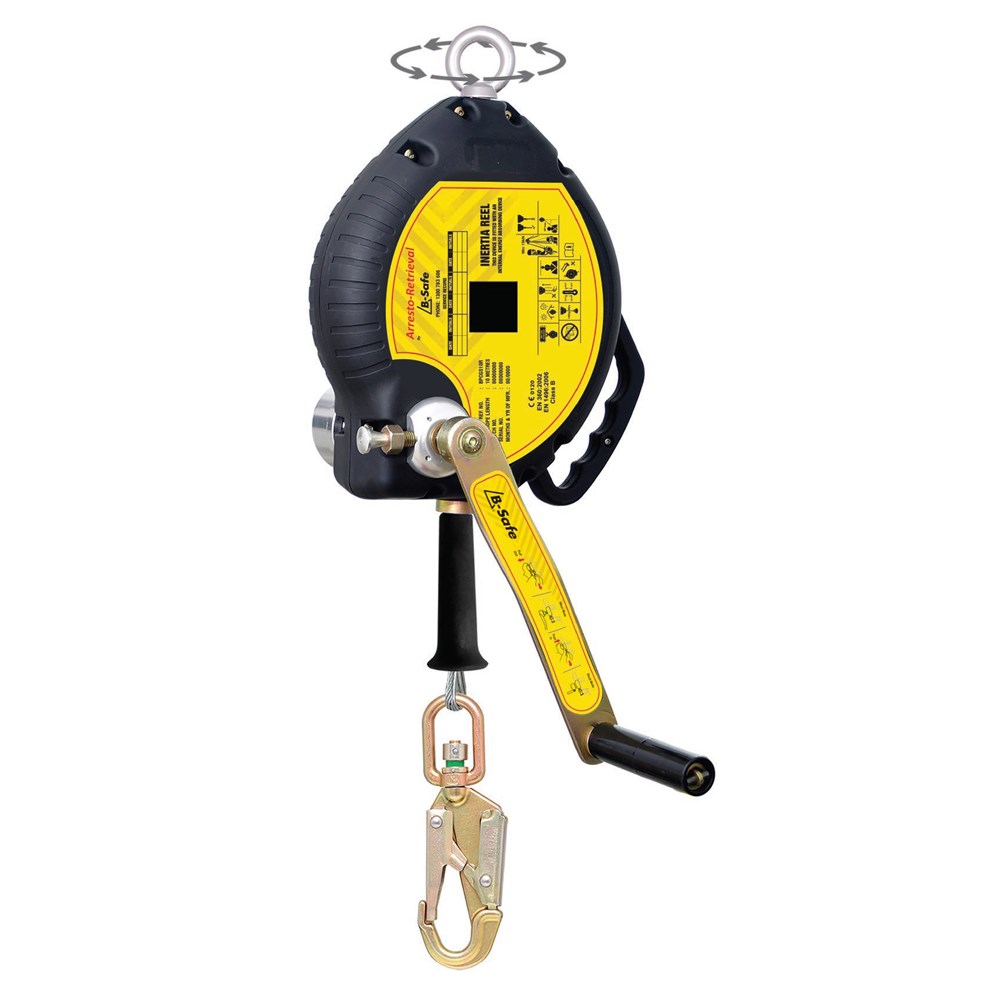

Retrieval Block Arresto Cable Swivel Mount HD Hook Plastic Housing 140kG x 10m Ea
BPCGS10Rper Each
$1801.22 inc GSTTrade $1621.10, save $180.12Trade accounts save 10%. Apply with your ABN
About this product
The Retrieval Block Arresto Cable Swivel Mount HD Hook Plastic Housing 140kG x 10m is a dual inertia reel that arrests a fall and then winches the worker back out. A side locking pin at the base of the handle switches it between independent fall arrest and winch modes, so a rescue can start without swapping gear. It mounts straight onto a tripod and has a carry handle for moving between holes.
Inside is 10m of 4.5mm galvanised steel wire rope with a 15.3kN breaking strength, running in a durable plastic casing. The swivel anchorage carries a fall indicator, and the ANSI compliant swivel snap hook has a 16Kn gate strength with a 20mm gate opening. Certified to EN 360 and EN1496 Class B. Clause 1.6 of AS/NZS1891.3 states that fall arrest devices complying with EN353-1, EN353-2 or EN360 are acceptable for use in Australia and New Zealand.
Common questions
- what is the capacity of the arresto retrieval block
- It is rated at 140kg, with 10m of galvanised steel wire rope that has a 15.3kN breaking strength.
- can you use this inertia reel for confined space rescue
- Yes, it is a dual fall arrest and retrieval block. The side locking pin at the base of the handle lets you switch to winch mode to hoist a casualty out.
- is the arresto retrieval block approved for use in australia
- It is certified to EN 360 and EN1496 Class B. Clause 1.6 of AS/NZS1891.3 states devices complying with EN353-1, EN353-2 or EN360 are acceptable for use in Australia and New Zealand.
- what hook is fitted to this retrieval block
- An ANSI compliant swivel snap hook with 16Kn gate strength and a 20mm gate opening, plus a swivel anchorage with fall indicator at the top.
