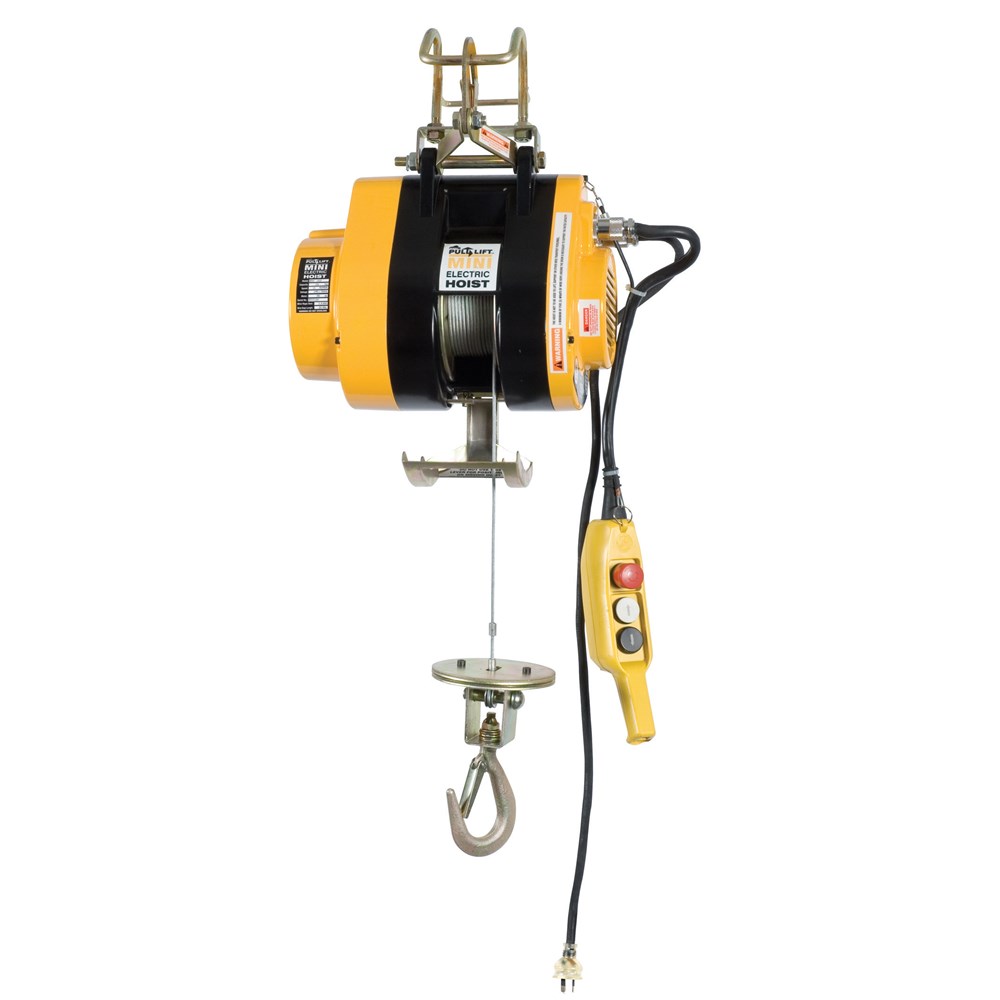

Beaver Electric Single Phase Mini Hoist 240V/50Hz 0.25t
BMI1025per Each
$2842.26 inc GSTTrade $2558.03, save $284.23Trade accounts save 10%. Apply with your ABN
| Speed | 12m/min |
| Weight | 30kg |
| Lifting Height | 2m0 |
| Rated Capacity | 0.25t |
About this product
The Beaver Electric Single Phase Mini Hoist 240V/50Hz 0.25t is a compact 240V hoist for lifting small loads that are too heavy to shift by hand. It runs off a standard single phase outlet, pulls at 12m/min and comes with 20 metres of non-rotating galvanised wire rope. At 30kg it is light enough for one person to shift and rig on a bracket or scaffold tube. Rated capacity is 0.25t.
The heavy duty motor has an automatic load brake and an overload clutch, with an upper limit switch to stop over-travel at the top of the lift. The body is IP54 rated and the European pendant control is IP65 with an emergency stop, so it handles the knocks and dust of a building site. Built to AS1418.2 Section 5.
Common questions
- how much can the Beaver 0.25t mini hoist lift
- It has a rated capacity of 0.25t, which is 250kg. Do not exceed that, the overload clutch is there as a safeguard, not a working limit.
- does the Beaver mini hoist run on normal 240v power
- Yes, it is single phase 240V/50Hz, so it runs off standard site or workshop power without a three phase supply.
- how long is the wire rope on the BMI1025
- It comes complete with 20 metres of non-rotating galvanised wire rope, and lifts at a speed of 12m/min.
Full specifications
| Product Code | Rated Capacity | Speed | Lifting Height | Weight |
|---|---|---|---|---|
| BMI1015 | 0.15t | 15m/min | 20m | 28kg |
| BMI1025 | 0.25t | 12m/min | 2m0 | 30kg |
| Rated Capacity | Input Power | % ED | Rope Diameter | Rope Construction | Grade of Rope |
|---|---|---|---|---|---|
| 0.15t | 780W | 25 | 3.8mm | 7x19 | 1960min |
| 0.25t | 1200W | 25 | 4.2mm | 7x19 | 1960min |
Questions about this equipment? Send us a message and we’ll check it against the job.
