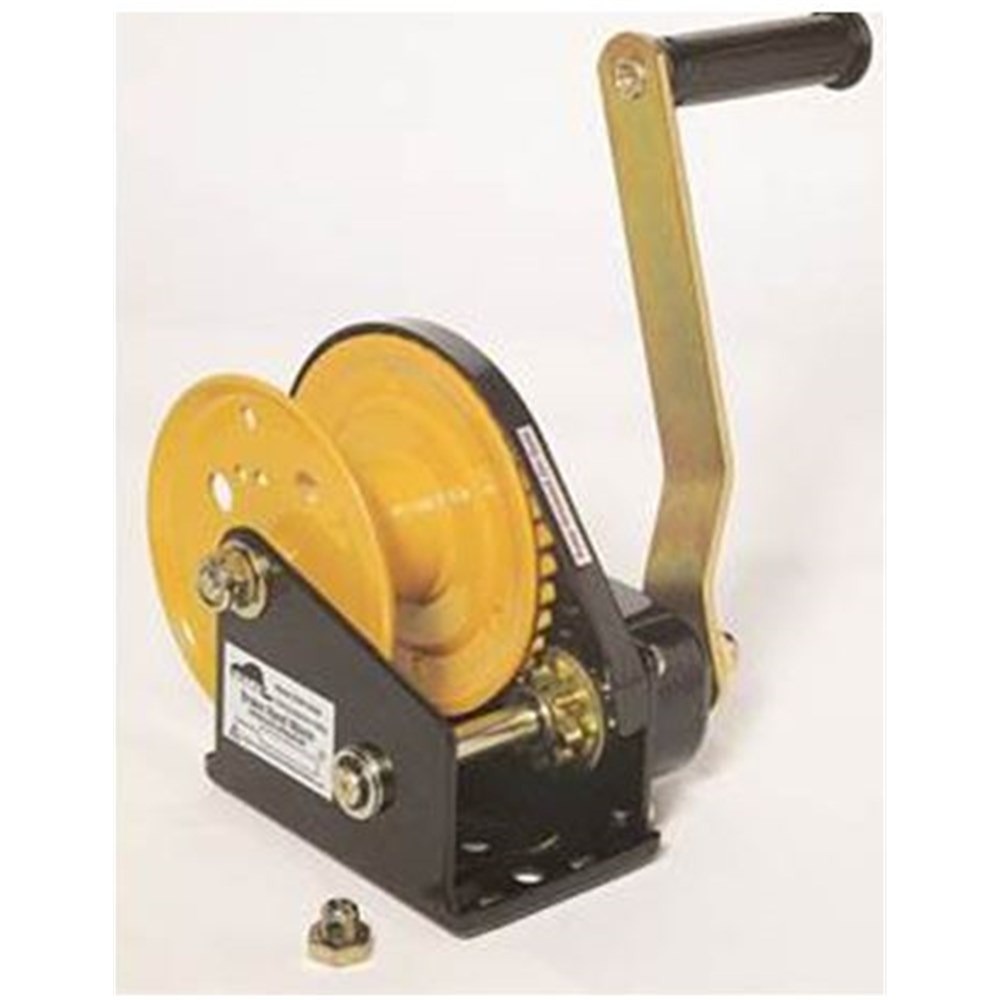

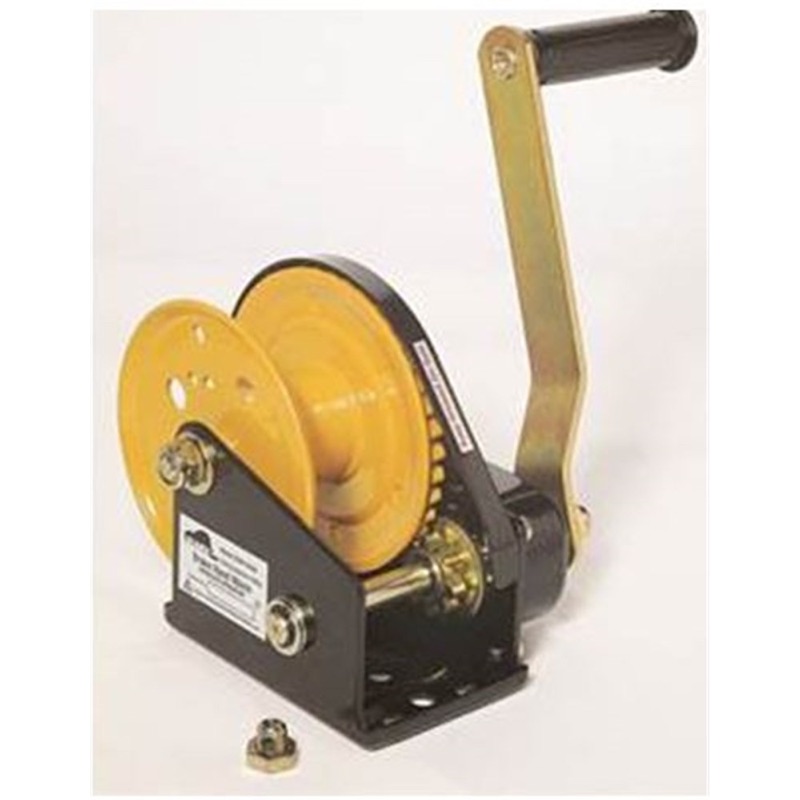

Beaver Brake Hand Winches BHW2600
BHW2600per Each
$496.27 inc GSTTrade $446.64, save $49.63Trade accounts save 10%. Apply with your ABN
| Model Number | BHW2600 |
About this product
The Beaver Brake Hand Winches BHW2600 is a hand cranked winch for pulling and lifting, and it sits as one of four model sizes in the Beaver brake winch range. The positive load actuated brake holds the load wherever you stop cranking, so you can pause mid pull without the load running back on you. High precision gearing keeps the noise down, and the gears themselves are heat treated for a longer working life.
Mechanical components are enclosed, which keeps grit out and keeps fingers clear of moving parts. The handle is strong and removable, handy when you want the winch stowed or carried between jobs. It is light enough to shift by hand but built to take regular site use. A practical option for utes, workshops, trailers and general site rigging where you need controlled manual pulling power.
Common questions
- what is the beaver BHW2600 hand winch used for
- It is a crank style hand winch suited to both pulling and lifting applications, from workshop and trailer work through to general site jobs.
- will the BHW2600 winch hold the load if I stop winding
- Yes. It has a positive load actuated brake that holds the load in any position, so you can stop part way through a pull.
- what size is the BHW2600 in the beaver brake winch range
- The BHW2600 is one of four models in the Beaver Brake Hand Winches range. Check the model number on the unit to make sure you are getting this variant.
Full specifications
| Model No. Bare | BHW800 | BHW1200 | BHW1800 | BHW2600 |
|---|---|---|---|---|
| Model No. Wire Rope | BHW800 | BHW1200R | BHW1800R | BHW2600R |
| Rated Capacity - Pulling (Kg) (kN) | 370/3.63 | 550/5.39 | 820/8.04 | 1200/11.77 |
| Rated Capacity - Hoisting (Kg) | 185 | 275 | 410 | 600 |
| Type of Brake | Single Paw | Single Paw | Double Paw | Double Paw |
| Max Hand Force Req. (kg) | 14.5 | 15 | 22 | 19 |
| Gear Ratio | 4:1:1 | 4:1:1 | 5:1 | 10:1 |
| Hub Diamater (mm) | Ø40 | Ø50 | Ø70 | Ø82 |
| Handle Length (mm) | 160 | 210 | 320 | 320 |
| Unit Weight - Bare (kg) | 3 | 3.5 | 8 | 10.5 |
| Wire Rope Diameter (mm) | 4 | 5 | 6 | 8 |
| Wire Rope Construction | 7x19 RHOL | 7x19 RHOL | 7x19 RHOL | 7x19 RHOL |
| Grade of Wire Rope | G2070 | G2070 | G2070 | G2070 |
| Wire Rope Finish | Galvanised | Galvanised | Galvanised | Galvanised |
| Wire Rope Storage Capacity (m) | 36 | 23 | 24 | 18 |
Questions about this equipment? Send us a message and we’ll check it against the job.
