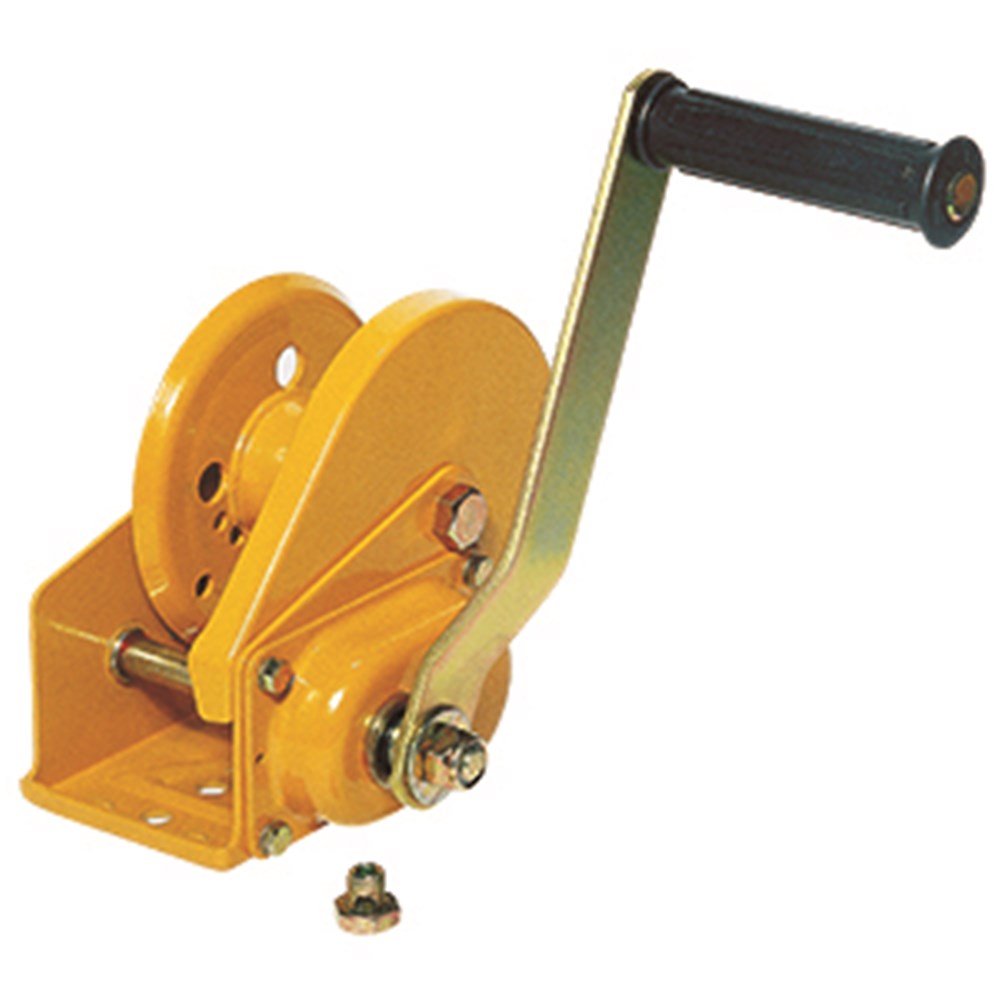

Beaver Brake Hand Winches BHW1200
BHW1200per Each
$242.30 inc GSTTrade $218.07, save $24.23Trade accounts save 10%. Apply with your ABN
| Model Number | BHW1200 |
About this product
The Beaver Brake Hand Winches BHW1200 is a crank-style hand winch built for pulling and lifting work where you need controlled movement without power on site. The positive load actuated brake holds the load at any point in the travel, so you can stop mid-lift and walk away from the handle. Gears are heat treated and cut to close tolerances, which keeps the noise down and the action smooth under load.
This is the BHW1200 model in the Beaver brake hand winch range, so check the model against the job before you order. Mechanical components sit inside an enclosed housing, keeping grit out and fingers clear of the moving parts. The handle is removable, and the whole unit is light enough to carry to the work face by hand. Handy for maintenance crews, workshops and any job too small to justify a powered setup.
Common questions
- what is a beaver brake hand winch used for
- Pulling and lifting jobs where no power is available. It is a hand-cranked winch, often called a crank winch, suited to smaller lifts and general site work.
- does the BHW1200 winch hold the load when you stop cranking
- Yes. It has a positive load actuated brake that holds the load in any position, so you can stop part way through a lift.
- is the handle on the beaver BHW1200 removable
- Yes, the handle is removable and the winch is light enough to carry, which makes it easy to move between jobs.
Full specifications
| Model No. Bare | BHW800 | BHW1200 | BHW1800 | BHW2600 |
|---|---|---|---|---|
| Model No. Wire Rope | BHW800 | BHW1200R | BHW1800R | BHW2600R |
| Rated Capacity - Pulling (Kg) (kN) | 370/3.63 | 550/5.39 | 820/8.04 | 1200/11.77 |
| Rated Capacity - Hoisting (Kg) | 185 | 275 | 410 | 600 |
| Type of Brake | Single Paw | Single Paw | Double Paw | Double Paw |
| Max Hand Force Req. (kg) | 14.5 | 15 | 22 | 19 |
| Gear Ratio | 4:1:1 | 4:1:1 | 5:1 | 10:1 |
| Hub Diamater (mm) | Ø40 | Ø50 | Ø70 | Ø82 |
| Handle Length (mm) | 160 | 210 | 320 | 320 |
| Unit Weight - Bare (kg) | 3 | 3.5 | 8 | 10.5 |
| Wire Rope Diameter (mm) | 4 | 5 | 6 | 8 |
| Wire Rope Construction | 7x19 RHOL | 7x19 RHOL | 7x19 RHOL | 7x19 RHOL |
| Grade of Wire Rope | G2070 | G2070 | G2070 | G2070 |
| Wire Rope Finish | Galvanised | Galvanised | Galvanised | Galvanised |
| Wire Rope Storage Capacity (m) | 36 | 23 | 24 | 18 |
Questions about this equipment? Send us a message and we’ll check it against the job.
