Beaver Liftall Three Phase Electric Trolleys 3t
BET3000per Each
$2580.95 inc GSTTrade $2322.86, save $258.09Trade accounts save 10%. Apply with your ABN
| A | 42.5mm |
| B | 265mm |
| C | 260mm |
| D | 42mm |
| E | 12mm |
| % ED | 20 |
| INS Class | B |
| Beam Width | 75-180mm |
| Net Weight | 37 |
| Running Speed | 15 |
| Rated Capacity | 3t |
About this product

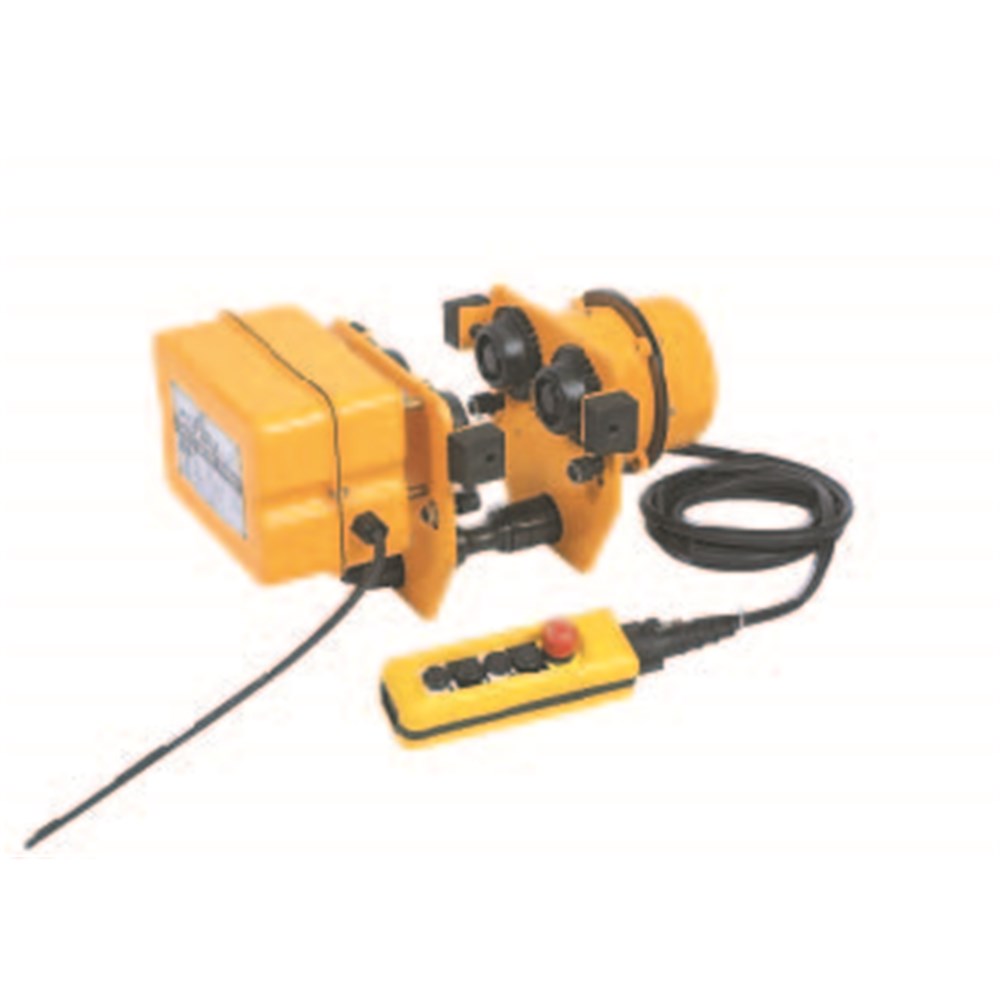

The Beaver Liftall Three Phase Electric Trolley rated at 3t moves suspended loads horizontally along a beam under power, so crews are not pushing loads by hand. This is the larger capacity in the range, and at 37kg net weight it is a heavier unit than the smaller size, matched to bigger hoists and heavier lifts. Travel speed is 15 metres per minute. It fits beam widths from 75 to 180mm, and the un-flanged wheels suit both parallel and tapered flanged beams.
Side rollers keep the trolley tracking straight along the beam, and the travelling brake gives positive stopping. Control is through a 5 button IP65 European pendant with emergency stop. Insulation is Class B with a 20% ED duty rating. Maintenance demands are low, which suits workshops and plants running the trolley day in, day out. Complies to AS1418.2.
Common questions
- what beam width does the Beaver 3t electric trolley fit
- It suits beam widths from 75 to 180mm. The un-flanged wheels work on both parallel and tapered flanged beams.
- how fast does the BET3000 trolley travel
- Running speed is 15 metres per minute, driven by a three phase motor and controlled from the pendant.
- does the Beaver Liftall electric trolley meet Australian standards
- Yes, it complies to AS1418.2.
Full specifications
| Product Code | Rated Capacity | Running Speed | INS Class | % ED | Net Weight |
|---|---|---|---|---|---|
| BET1000 | 1t | 20 | B | 20 | 34 |
| BET2000 | 2t | 20 | B | 20 | 35 |
| BET3000 | 3t | 15 | B | 20 | 37 |
| Product Code | Rated Capacity | Beam Width | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| BET1000 | 1t | 75-180mm | 27.5mm | 265mm | 260mm | 27mm | 10mm |
| BET2000 | 2t | 75-180mm | 36.5mm | 265mm | 260mm | 36mm | 10mm |
| BET3000 | 2t | 75-180mm | 42.5mm | 265mm | 260mm | 42mm | 12mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
