Beaver Liftall Three Phase Electric Trolleys 1t
BET1000per Each
$2268.30 inc GSTTrade $2041.47, save $226.83Trade accounts save 10%. Apply with your ABN
| A | 27.5mm |
| B | 265mm |
| C | 260mm |
| D | 27mm |
| E | 10mm |
| % ED | 20 |
| INS Class | B |
| Beam Width | 75-180mm |
| Net Weight | 34 |
| Running Speed | 20 |
| Rated Capacity | 1t |
About this product

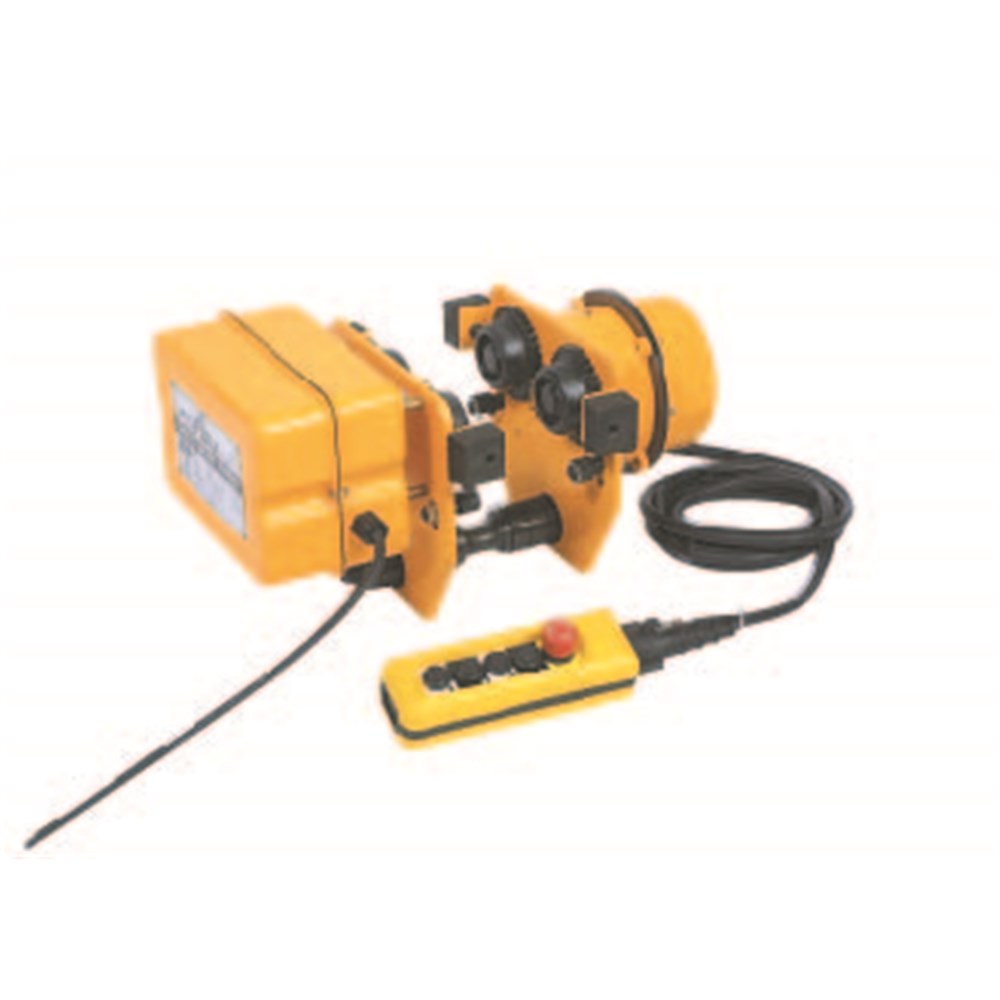

The Beaver Liftall Three Phase Electric Trolley (BET1000) moves loads up to 1t horizontally along a beam under power. It is the lighter of the two sizes in the range at 34kg net weight, so it is easier to get up and mounted when you are working off a platform. Beam width adjustment covers 75-180mm, and the un-flanged wheels run on both parallel and tapered flanged beams.
Travel speed is 20m/min, with side rollers keeping the unit tracking straight and a travelling brake holding position when you stop. Duty rating is 20% ED with Class B insulation. Control is through a 5 button IP65 European pendant with emergency stop. Maintenance is minimal, which suits workshops, mine site facilities and commercial installations running day in, day out. Complies to AS1418.2.
Common questions
- what weight can the beaver 1t electric trolley lift
- It has a rated capacity of 1t. Pair it with a hoist rated to match the load you are moving.
- what beam width does the BET1000 trolley fit
- It adjusts to beam widths from 75mm to 180mm. The un-flanged wheels suit both parallel and tapered flanged beams.
- how fast does the beaver three phase electric trolley travel
- Running speed is 20m/min, with a travelling brake to stop the trolley cleanly and hold it in place.
Full specifications
| Product Code | Rated Capacity | Running Speed | INS Class | % ED | Net Weight |
|---|---|---|---|---|---|
| BET1000 | 1t | 20 | B | 20 | 34 |
| BET2000 | 2t | 20 | B | 20 | 35 |
| BET3000 | 3t | 15 | B | 20 | 37 |
| Product Code | Rated Capacity | Beam Width | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| BET1000 | 1t | 75-180mm | 27.5mm | 265mm | 260mm | 27mm | 10mm |
| BET2000 | 2t | 75-180mm | 36.5mm | 265mm | 260mm | 36mm | 10mm |
| BET3000 | 2t | 75-180mm | 42.5mm | 265mm | 260mm | 42mm | 12mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
