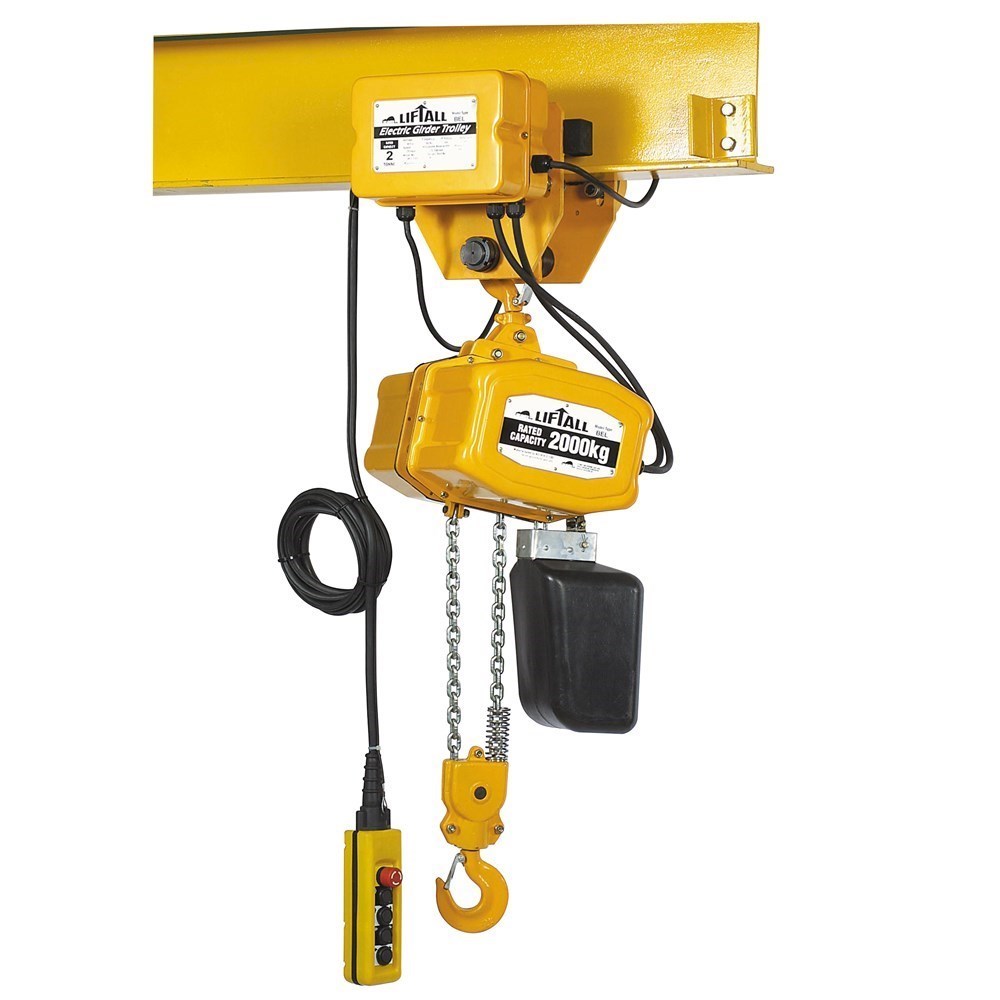

Beaver Liftall Three Phase Electric Hoists 3t x 3m
BEL2303STper Each
POA — add it to your list and we’ll sort you out.
| A | 249mm |
| B | 249mm |
| C | 180mm |
| D | 134mm |
| E | 41mm |
| F | 760mm |
| G | 790mm |
| H | 360mm |
| Lift Height | 3m |
| Rated Capacity | 3t |
| Lift Height (m) | 3 |
| Test Load Tonne | 3.75 |
| Load ChainDia. (mm) | 7.0 |
| Rated Capacity (kg) | 3000 |
| Load ChainNo. of Falls | 3 |
| Std Pendant Length (m) | 2 |
| Min Headroom G (mm) Max | 790 |
| Min. Weight (kg) Approx | 80 |
| Lifting Speed m/min 50Hz | 2.1 |
| Hoist Motor Three Phase% ED | 40 |
| Hoist Motor Three PhaseIns Class | F |
| Hoist Motor Three PhaseOutput (kw) 50Hz | 1.6 |
About this product
The Beaver Liftall Three Phase Electric Hoists 3t x 3m is a 415 volt 50Hz chain hoist for heavy lifting off a beam or gantry, with a 3000kg rated capacity and a 3 metre lift. This is the shorter-lift option in the range, so it suits workshops and bays where headroom and travel are limited but the load is still up to 3t. Minimum headroom is 790mm and the unit weighs around 80kg.
Lifting runs at 2.1m/min on 50Hz through a 1.6kW motor with Class F insulation and 40% ED. The 7.0mm plated European load chain is reeved in 3 falls, and the hoist has been tested at 3.75 tonne. All-steel enclosed construction, an overload protection clutch and upper and lower electrical limit switches are standard, along with a top suspension hook, a 2 metre pendant and IP54 rating. Complies to AS1418.2. A test certificate and manual are supplied.
Common questions
- what voltage is the beaver 3t electric chain hoist
- It runs on 415 volt 50Hz three phase power. The hoist motor puts out 1.6kW at 50Hz.
- how fast does a beaver liftall 3t hoist lift
- Lifting speed is 2.1m/min at 50Hz, with the 7.0mm load chain running in 3 falls to handle the 3000kg rating.
- 3m or longer lift height beaver hoist which one do i need
- This model gives a 3 metre lift and comes with a 2 metre pendant. Longer lift heights are available in the range on request.
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed m/min 50Hz | Hoist Motor Three PhaseOutput (kw) 50Hz | Hoist Motor Three PhaseIns Class | Hoist Motor Three Phase% ED | Load ChainDia. (mm) | Load ChainNo. of Falls | Test Load Tonne | Min Headroom G (mm) Max | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 500 | 3 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL2056S | 500 | 6 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL2103S | 1000 | 3 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL2106S | 1000 | 6 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL2203SD | 2000 | 3 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL2206SD | 2000 | 6 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL2303ST | 3000 | 3 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL2306ST | 3000 | 6 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL2306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
