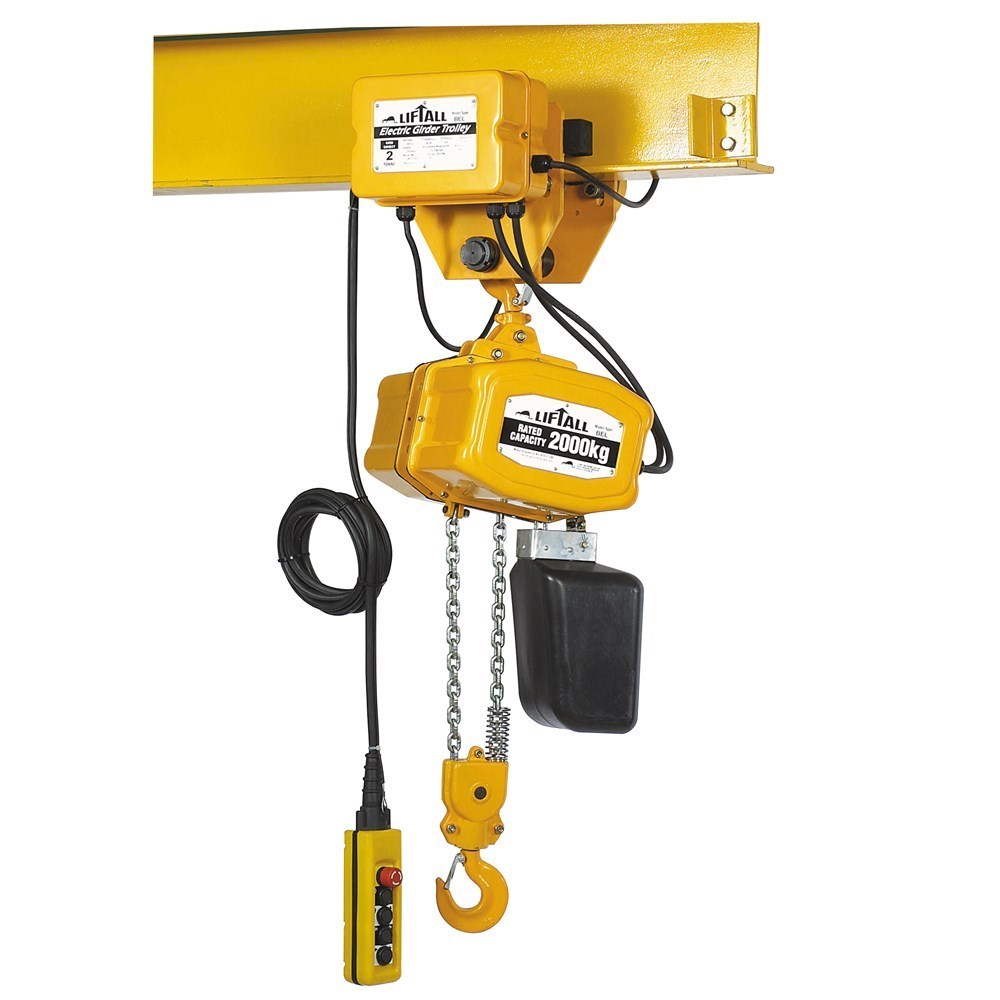

Beaver Liftall Three Phase Electric Hoists 2t x 6m
BEL2206SDper Each
POA — add it to your list and we’ll sort you out.
| A | 249mm |
| B | 249mm |
| C | 180mm |
| D | 134mm |
| E | 33mm |
| F | 665mm |
| G | 700mm |
| H | 235mm |
| Lift Height | 6m |
| Rated Capacity | 2t |
| Lift Height (m) | 6 |
| Test Load Tonne | 2.5 |
| Load ChainDia. (mm) | 7.0 |
| Rated Capacity (kg) | 2000 |
| Load ChainNo. of Falls | 2 |
| Std Pendant Length (m) | 5 |
| Min Headroom G (mm) Max | 700 |
| Min. Weight (kg) Approx | 79 |
| Lifting Speed m/min 50Hz | 3.2 |
| Hoist Motor Three Phase% ED | 40 |
| Hoist Motor Three PhaseIns Class | F |
| Hoist Motor Three PhaseOutput (kw) 50Hz | 1.6 |
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed m/min 50Hz | Hoist Motor Three PhaseOutput (kw) 50Hz | Hoist Motor Three PhaseIns Class | Hoist Motor Three Phase% ED | Load ChainDia. (mm) | Load ChainNo. of Falls | Test Load Tonne | Min Headroom G (mm) Max | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 500 | 3 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL2056S | 500 | 6 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL2103S | 1000 | 3 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL2106S | 1000 | 6 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL2203SD | 2000 | 3 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL2206SD | 2000 | 6 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL2303ST | 3000 | 3 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL2306ST | 3000 | 6 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL2306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
