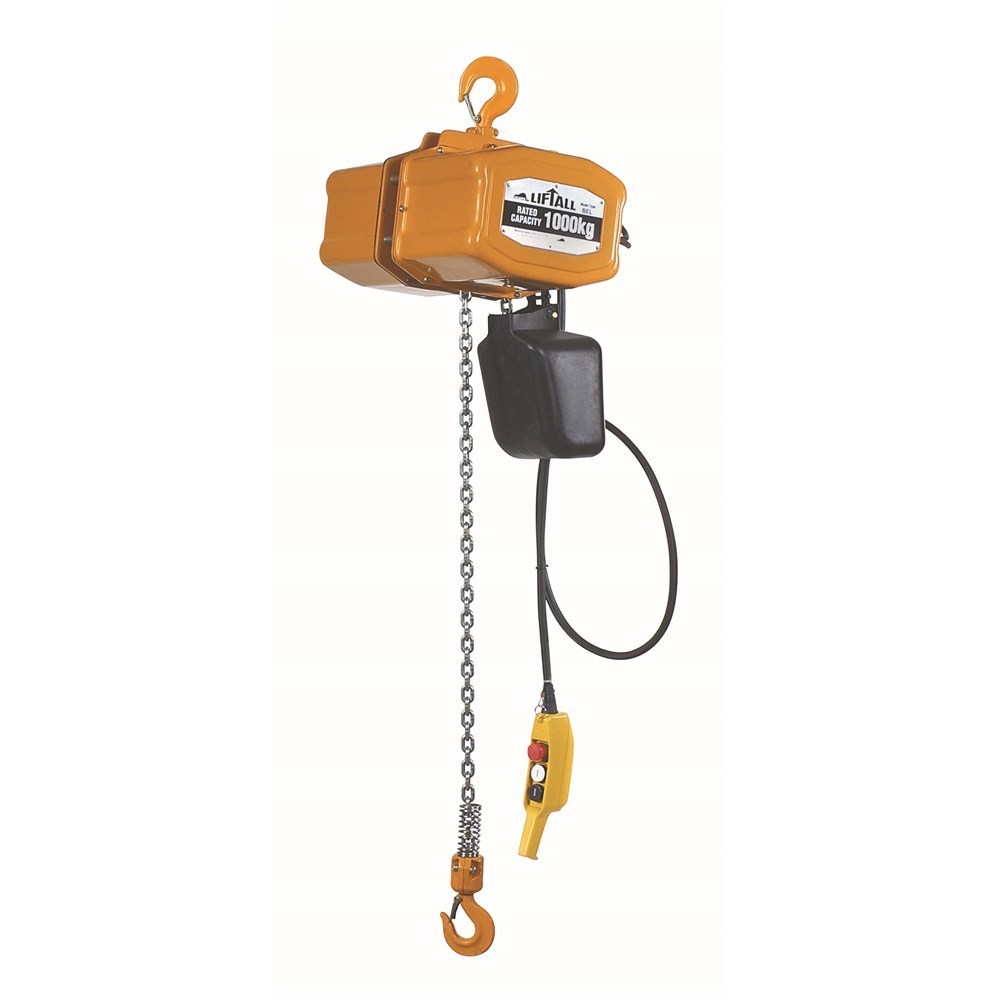

Beaver Liftall Three Phase Electric Hoists 1t x 6m
BEL2106Sper Each
POA — add it to your list and we’ll sort you out.
| A | 249mm |
| B | 249mm |
| C | 168mm |
| D | 146mm |
| E | 30mm |
| F | 614mm |
| G | 595mm |
| H | 195mm |
| Lift Height | 6m |
| Rated Capacity | 1t |
| Lift Height (m) | 6 |
| Test Load Tonne | 1.25 |
| Load ChainDia. (mm) | 7.0 |
| Rated Capacity (kg) | 1000 |
| Load ChainNo. of Falls | 1 |
| Std Pendant Length (m) | 5 |
| Min Headroom G (mm) Max | 595 |
| Min. Weight (kg) Approx | 69 |
| Lifting Speed m/min 50Hz | 6.3 |
| Hoist Motor Three Phase% ED | 40 |
| Hoist Motor Three PhaseIns Class | F |
| Hoist Motor Three PhaseOutput (kw) 50Hz | 1.6 |
About this product
The Beaver Liftall Three Phase Electric Hoists 1t x 6m is a 415 volt 50Hz workshop and site hoist rated to 1000kg with a 6m lift height. It runs a single fall of 7.0mm plated European load chain, so it keeps things simple and quick, lifting at 6.3m per minute. The 6m lift suits standard gantry and monorail work where you need a bit more drop than the shorter model without going to a custom height.
Drive comes from a 1.6kW three phase motor, Class F insulation, rated at 40% ED, with an IP54 rating. The body is all-steel and fully enclosed. An overload protection clutch plus upper and lower electrical limit switches handle the obvious mistakes. Minimum headroom is 595mm, weight is around 69kg, and it arrives with a top suspension hook, a 5m pendant, a test certificate and a manual with wiring diagrams. Test load is 1.25 tonne. Complies to AS1418.2.
Common questions
- how much can the Beaver 1t x 6m electric hoist lift
- It is rated to 1t, or 1000kg, on a single fall of load chain. Test load is 1.25 tonne.
- what power supply does the Beaver Liftall three phase hoist need
- It runs on 415 volt 50Hz three phase power. The hoist motor output is 1.6kW at 50Hz with Class F insulation and 40% ED.
- how fast does a 1t Beaver electric chain hoist lift
- Lifting speed is 6.3m per minute at 50Hz, so a full 6m lift takes about a minute.
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed m/min 50Hz | Hoist Motor Three PhaseOutput (kw) 50Hz | Hoist Motor Three PhaseIns Class | Hoist Motor Three Phase% ED | Load ChainDia. (mm) | Load ChainNo. of Falls | Test Load Tonne | Min Headroom G (mm) Max | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 500 | 3 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL2056S | 500 | 6 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL2103S | 1000 | 3 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL2106S | 1000 | 6 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL2203SD | 2000 | 3 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL2206SD | 2000 | 6 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL2303ST | 3000 | 3 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL2306ST | 3000 | 6 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL2306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
