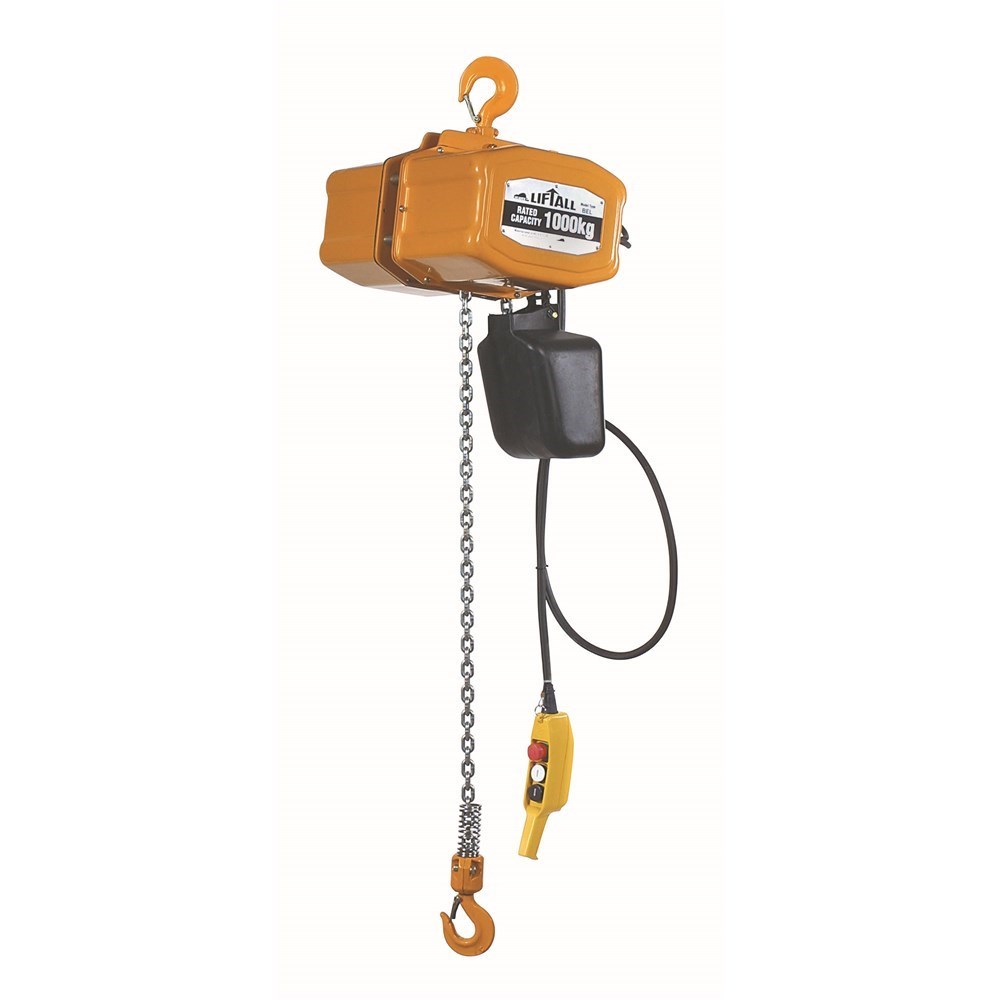

Beaver Liftall Three Phase Electric Hoists 1t x 3m
BEL2103Sper Each
POA — add it to your list and we’ll sort you out.
| A | 249mm |
| B | 249mm |
| C | 168mm |
| D | 146mm |
| E | 30mm |
| F | 614mm |
| G | 595mm |
| H | 195mm |
| Lift Height | 3m |
| Rated Capacity | 1t |
| Lift Height (m) | 3 |
| Test Load Tonne | 1.25 |
| Load ChainDia. (mm) | 7.0 |
| Rated Capacity (kg) | 1000 |
| Load ChainNo. of Falls | 1 |
| Std Pendant Length (m) | 2 |
| Min Headroom G (mm) Max | 595 |
| Min. Weight (kg) Approx | 65 |
| Lifting Speed m/min 50Hz | 6.3 |
| Hoist Motor Three Phase% ED | 40 |
| Hoist Motor Three PhaseIns Class | F |
| Hoist Motor Three PhaseOutput (kw) 50Hz | 1.6 |
About this product
The Beaver Liftall Three Phase Electric Hoists 1t x 3m is a 415 volt 50Hz powered chain hoist for repeat lifting up to 1000kg. This is the shortest lift in the range at 3m, so it suits lower bays, workshop gantries and maintenance jobs where you do not need a long chain hanging about. A single fall of 7.0mm plated European load chain lifts at 6.3m per minute, and the unit weighs around 65kg.
All-steel enclosed construction with a 1.6kW three phase motor, class F insulation and 40% ED. Overload protection clutch and upper and lower electrical limit switches are built in, with an IP54 rating. Minimum headroom is 595mm and the standard pendant is 2m. Tested to 1.25 tonne and supplied with a top suspension hook, test certificate and manual. Complies to AS1418.2.
Common questions
- what is the lifting speed of the beaver 1t electric hoist
- It lifts at 6.3m per minute on 50Hz, driven by a 1.6kW three phase motor.
- beaver liftall 1t x 3m hoist voltage requirement
- It runs on 415 volt 50Hz three phase power. Single phase supply will not run this model.
- how much headroom does the beaver liftall 1t hoist need
- Minimum headroom is 595mm, measured at dimension G, and the hoist comes with a top suspension hook for mounting.
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed m/min 50Hz | Hoist Motor Three PhaseOutput (kw) 50Hz | Hoist Motor Three PhaseIns Class | Hoist Motor Three Phase% ED | Load ChainDia. (mm) | Load ChainNo. of Falls | Test Load Tonne | Min Headroom G (mm) Max | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 500 | 3 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL2056S | 500 | 6 | 6.3 | 0.8 | F | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL2103S | 1000 | 3 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL2106S | 1000 | 6 | 6.3 | 1.6 | F | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL2203SD | 2000 | 3 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL2206SD | 2000 | 6 | 3.2 | 1.6 | F | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL2303ST | 3000 | 3 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL2306ST | 3000 | 6 | 2.1 | 1.6 | F | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL2053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL2103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 595mm | 195mm |
| BEL2203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL2303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL2306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
