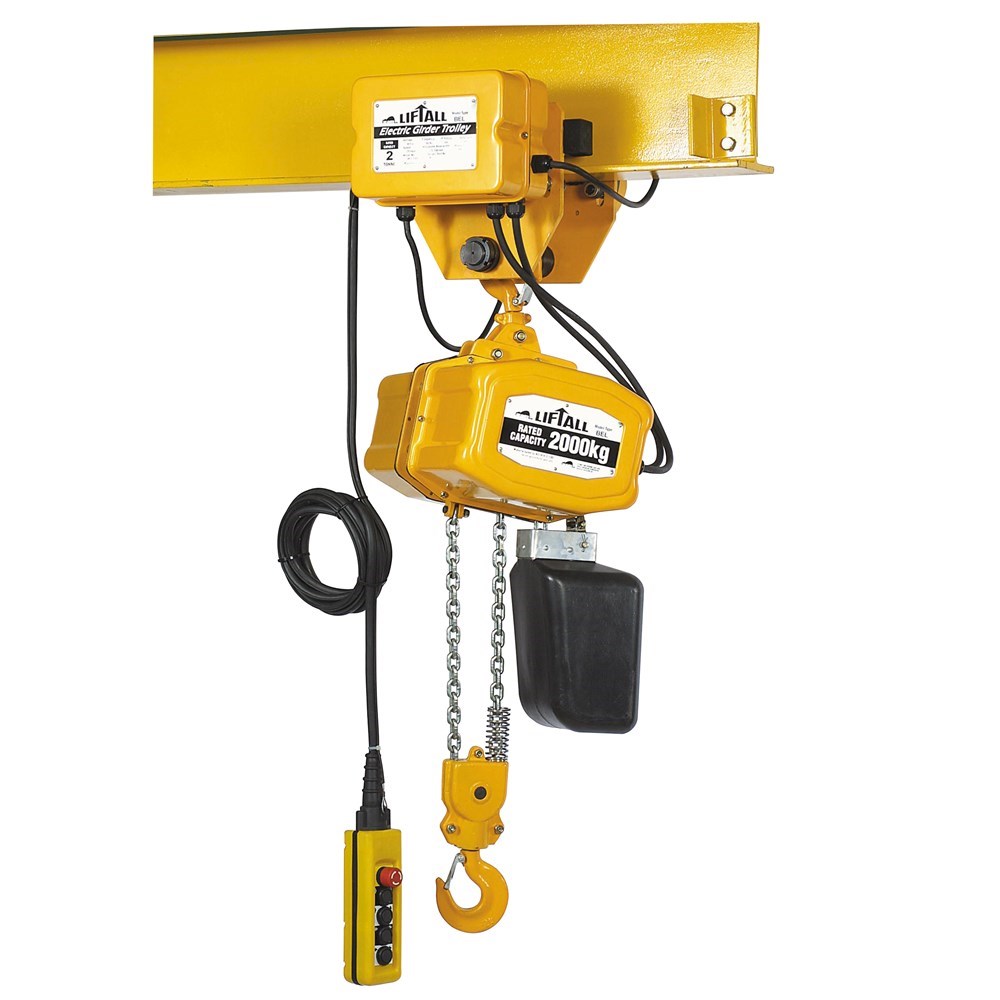

Beaver Liftall Single Phase Electric Hoists 2t x 3m
BEL1203SDper Each
$4690.19 inc GSTTrade $4221.17, save $469.02Trade accounts save 10%. Apply with your ABN
| A | 249mm |
| B | 249mm |
| C | 180mm |
| D | 134mm |
| E | 33mm |
| F | 665mm |
| G | 700mm |
| H | 235mm |
| Lift Height | 3m |
| Rated Capacity | 2t |
| Lift Height (m) | 3 |
| Test Load Tonne | 2.5 |
| Output (kw) 7.60Hz | 1.2 |
| Rated Capacity (kg) | 2000 |
| Std Pendant Length (m) | 2 |
| Load CHain No. of Falls | 2 |
| Min. Weight (kg) Approx | 72 |
| Load Chain Diameter (mm) | 7.0 |
| Min Headroom G (mm) Max. | 700 |
| Lifting Speed (m/min) 50Hz | 2.5 |
| Hoist Motor Single Phase% ED | 40 |
| Hoist Motor Single PhaseIns Class | E |
About this product
The Beaver Liftall Single Phase Electric Hoists 2t x 3m is a 240 volt chain hoist for lifting loads up to 2000kg through a short 3m lift, so it suits workshop bays, maintenance pits and low headroom jobs where you only need a few metres of travel. It runs on standard single phase power at 50Hz, drawing 1.2kW, and lifts at 2.5m/min on two falls of 7.0mm plated European load chain.
Minimum headroom is 700mm and the unit weighs around 72kg, with a 2m pendant and a top suspension hook as standard. All-steel enclosed construction and an IP54 rating keep the working parts protected. An overload protection clutch plus upper and lower electrical limit switches handle the mistakes. Test load is 2.5 tonne, and every hoist comes with a test certificate and a manual covering wiring and parts. Complies to AS1418.2.
Common questions
- what can a 2t beaver liftall electric hoist lift
- It is rated to 2000kg, or 2 tonne, with a test load of 2.5 tonne. The load is carried on two falls of 7.0mm chain.
- does the beaver liftall single phase hoist need 3 phase power
- No. This model runs on 240 volt, 50Hz single phase power and draws 1.2kW.
- how much headroom do i need for a 2t x 3m beaver hoist
- Minimum headroom is 700mm. The unit weighs roughly 72kg and hangs from the supplied top suspension hook.
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed (m/min) 50Hz | Output (kw) 7.60Hz | Hoist Motor Single PhaseIns Class | Hoist Motor Single Phase% ED | Load Chain Diameter (mm) | Load CHain No. of Falls | Test Load Tonne | Min Headroom G (mm) Max. | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 500 | 3 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL1056S | 500 | 6 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL1103S | 1000 | 3 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL1106S | 1000 | 6 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL1203SD | 2000 | 3 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL1206SD | 2000 | 6 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL1303ST | 3000 | 3 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL1306ST | 3000 | 6 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL1306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
