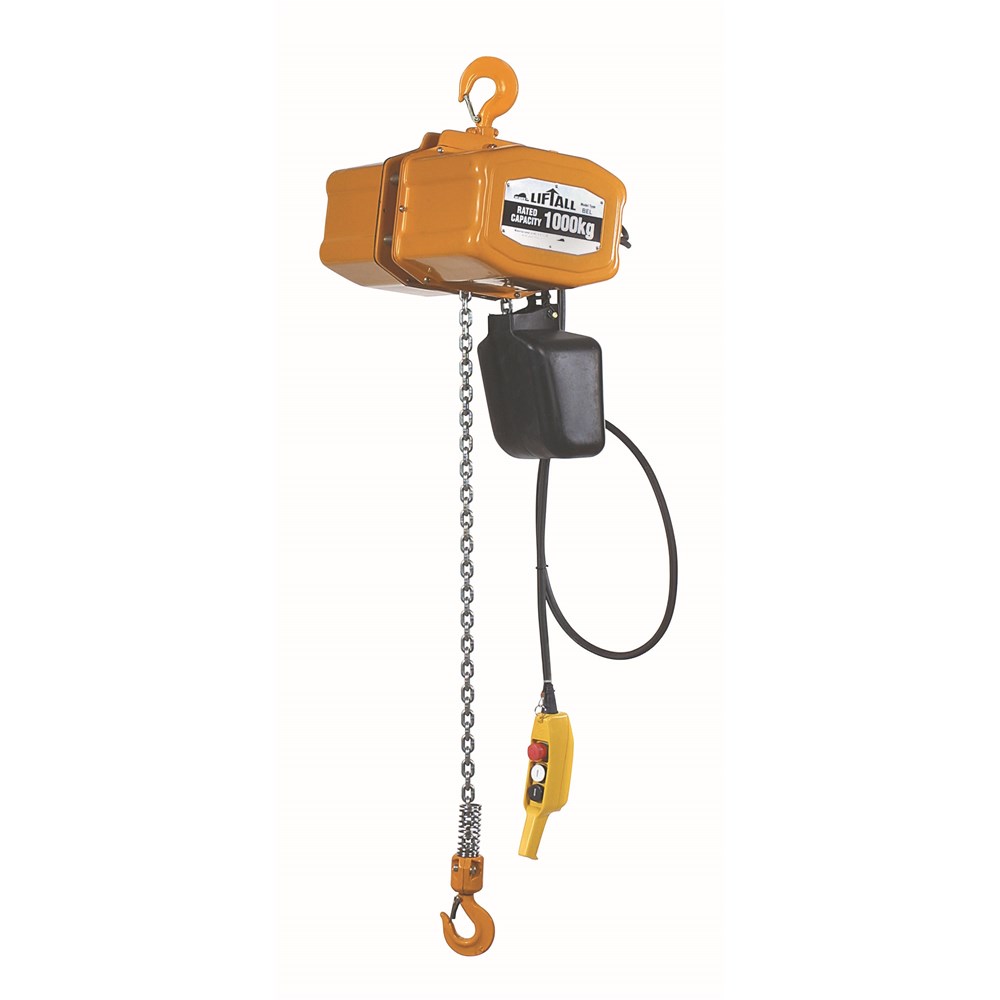

Beaver Liftall Single Phase Electric Hoists 1t x 6m
BEL1106Sper Each
$4118.50 inc GSTTrade $3706.65, save $411.85Trade accounts save 10%. Apply with your ABN
| A | 249mm |
| B | 249mm |
| C | 168mm |
| D | 146mm |
| E | 30mm |
| F | 614mm |
| G | 545mm |
| H | 195mm |
| Lift Height | 6m |
| Rated Capacity | 1t |
| Lift Height (m) | 6 |
| Test Load Tonne | 1.25 |
| Output (kw) 7.60Hz | 1.2 |
| Rated Capacity (kg) | 1000 |
| Std Pendant Length (m) | 5 |
| Load CHain No. of Falls | 1 |
| Min. Weight (kg) Approx | 69 |
| Load Chain Diameter (mm) | 7.0 |
| Min Headroom G (mm) Max. | 595 |
| Lifting Speed (m/min) 50Hz | 5 |
| Hoist Motor Single Phase% ED | 40 |
| Hoist Motor Single PhaseIns Class | E |
About this product
The Beaver Liftall Single Phase Electric Hoist in 1t x 6m runs off standard 240 volt, 50Hz power and lifts a full tonne to a height of 6 metres on a single fall of chain. The extra lift height over the shorter models makes it a good fit for taller workshop bays and two storey lifts where a 3m hoist runs out of chain. Load chain is plated European chain at 7.0mm diameter, tested to 1.25 tonne.
All-steel, fully enclosed construction with an IP54 rating, driven by a 1.2kW motor turning out 5 metres per minute at 50Hz. An overload protection clutch plus upper and lower electrical limit switches handle the mistakes. It comes with a top suspension hook, a 5m pendant, minimum headroom of 595mm and a weight around 69kg. Complies to AS1418.2, and a test certificate and manual are supplied.
Common questions
- what is the lifting capacity of the BEL1106S beaver hoist
- It is rated at 1 tonne, or 1000kg, on a single fall of chain. Test load is 1.25 tonne.
- does the beaver liftall 1t hoist run on single phase power
- Yes, it runs on 240 volt, 50Hz single phase supply with a 1.2kW motor.
- how high will a 1t x 6m beaver electric chain hoist lift
- Standard lift height is 6 metres. Longer lift heights are available on request.
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed (m/min) 50Hz | Output (kw) 7.60Hz | Hoist Motor Single PhaseIns Class | Hoist Motor Single Phase% ED | Load Chain Diameter (mm) | Load CHain No. of Falls | Test Load Tonne | Min Headroom G (mm) Max. | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 500 | 3 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL1056S | 500 | 6 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL1103S | 1000 | 3 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL1106S | 1000 | 6 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL1203SD | 2000 | 3 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL1206SD | 2000 | 6 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL1303ST | 3000 | 3 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL1306ST | 3000 | 6 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL1306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
