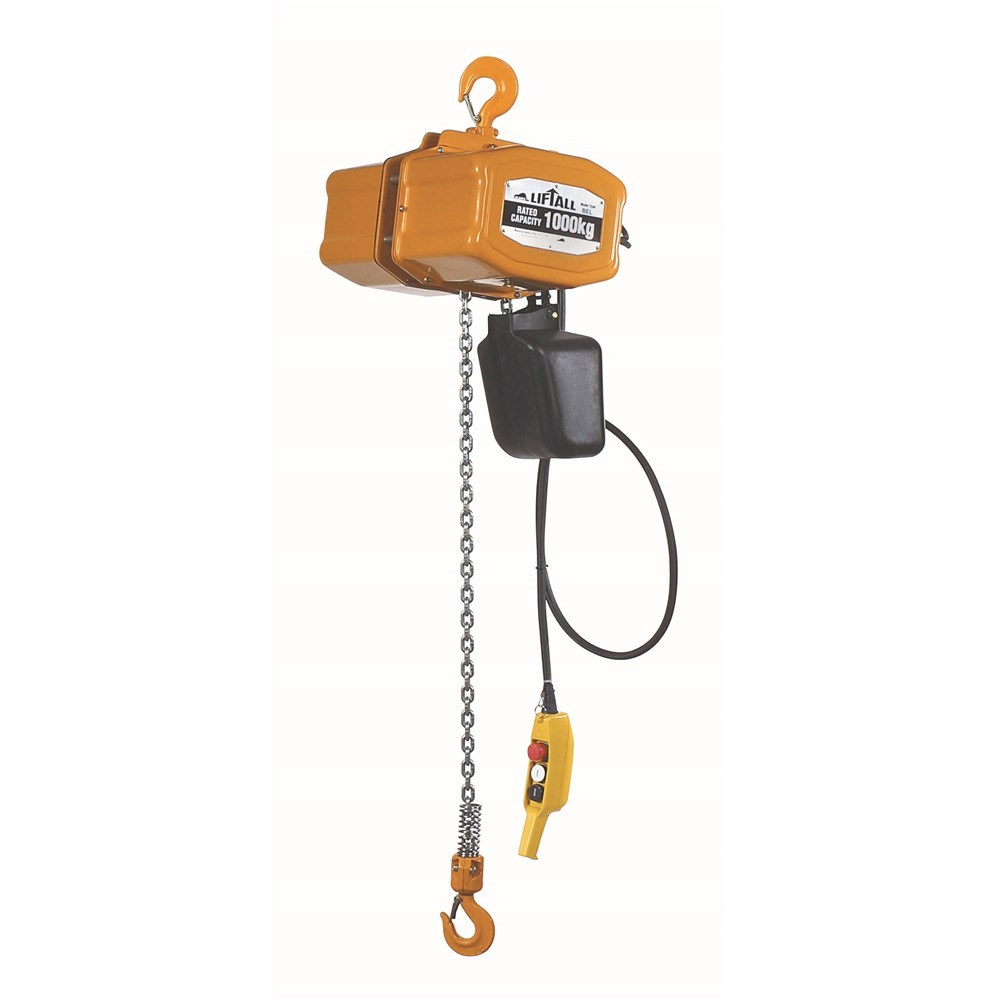

Beaver Liftall Single Phase Electric Hoists 1t x 3m
BEL1103Sper Each
$3356.35 Trade inc GST$3729.28 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 249mm |
| B | 249mm |
| C | 168mm |
| D | 146mm |
| E | 30mm |
| F | 614mm |
| G | 545mm |
| H | 195mm |
| Lift Height | 3m |
| Rated Capacity | 1t |
| Lift Height (m) | 3 |
| Test Load Tonne | 1.25 |
| Output (kw) 7.60Hz | 1.2 |
| Rated Capacity (kg) | 1000 |
| Std Pendant Length (m) | 2 |
| Load CHain No. of Falls | 1 |
| Min. Weight (kg) Approx | 65 |
| Load Chain Diameter (mm) | 7.0 |
| Min Headroom G (mm) Max. | 595 |
| Lifting Speed (m/min) 50Hz | 5 |
| Hoist Motor Single Phase% ED | 40 |
| Hoist Motor Single PhaseIns Class | E |
Full specifications
| Product Code | Rated Capacity (kg) | Lift Height (m) | Lifting Speed (m/min) 50Hz | Output (kw) 7.60Hz | Hoist Motor Single PhaseIns Class | Hoist Motor Single Phase% ED | Load Chain Diameter (mm) | Load CHain No. of Falls | Test Load Tonne | Min Headroom G (mm) Max. | Min. Weight (kg) Approx | Std Pendant Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 500 | 3 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 64 | 2 |
| BEL1056S | 500 | 6 | 5 | 0.6 | E | 40 | 7.0 | 1 | 0.625 | 545 | 68 | 5 |
| BEL1103S | 1000 | 3 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 65 | 2 |
| BEL1106S | 1000 | 6 | 5 | 1.2 | E | 40 | 7.0 | 1 | 1.25 | 595 | 69 | 5 |
| BEL1203SD | 2000 | 3 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 72 | 2 |
| BEL1206SD | 2000 | 6 | 2.5 | 1.2 | E | 40 | 7.0 | 2 | 2.5 | 700 | 79 | 5 |
| BEL1303ST | 3000 | 3 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 80 | 2 |
| BEL1306ST | 3000 | 6 | 1.3 | 1.2 | E | 40 | 7.0 | 3 | 3.75 | 790 | 90 | 5 |
| Product Code | Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| BEL1053S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1056S | 0.5t | 249mm | 249mm | 168mm | 146mm | 25mm | 565mm | 545mm | 195mm |
| BEL1103S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1106S | 1t | 249mm | 249mm | 168mm | 146mm | 30mm | 614mm | 545mm | 195mm |
| BEL1203SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1206SD | 2t | 249mm | 249mm | 180mm | 134mm | 33mm | 665mm | 700mm | 235mm |
| BEL1303ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
| BEL1306ST | 3t | 249mm | 249mm | 180mm | 134mm | 41mm | 760mm | 790mm | 360mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
