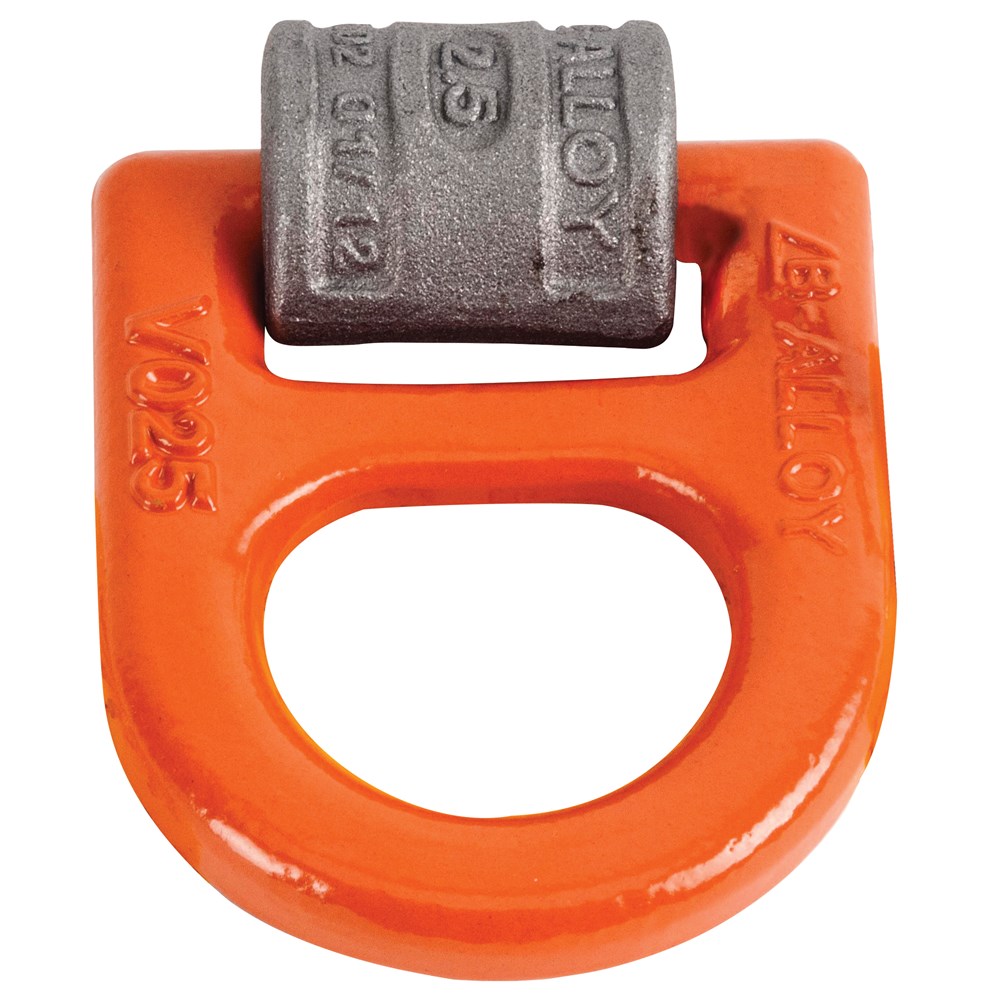

Beaver B-Alloy-V Weld-On Lifting And Lashing Rings 10t
BALPV100per Each
$67.76 inc GSTTrade $60.98, save $6.78Trade accounts save 10%. Apply with your ABN
| A | 67.5mm |
| B | 153.5mm |
| C | 129mm |
| D | 26.5mm |
| E | 26.5mm |
| F | 75mm |
| G | 53mm |
| I | 57.5mm |
| M | 4mm |
| WLL | 10t |
| Approx Weight | 3kg |
| Working Load Limit | 10t |
About this product
The Beaver B-Alloy-V Weld-On Lifting And Lashing Rings 10t is a permanent lifting and lashing point you weld straight onto the load or structure. It is the 10t option in the range, the one you reach for when smaller rings run out of capacity, and it holds that full 10t working load limit at all angles. Built from quenched and tempered alloy steel in Grade 100, it weighs roughly 3kg and complies to AS 3776.
Key dimensions include a 153.5mm B width, 129mm C height and a 26.5mm ring section, so it stays compact for the rating. The powder coated baked enamel finish stands up to knocks and weather on mine sites, road and rail transport work, offshore and maritime jobs. Height lugs on the weld block set the ring in position, and welding must only be done by an authorised welder to EN 287 or AWS Standards. Welding instructions come with each unit, and each ring carries marks for traceability.
Common questions
- what is the WLL of the Beaver BALPV100 lifting ring
- It is rated to a 10t working load limit, and that rating holds at all angles.
- who can weld on a Beaver weld-on lifting ring
- Welding should only be carried out by an authorised welder in accordance with EN 287 or AWS Standards. Welding instructions and procedures are supplied with each unit.
- what is the Beaver B-Alloy-V ring made of and how is it finished
- Quenched and tempered quality alloy steel in Grade 100, with a powder coated baked enamel finish for durability.
Full specifications
| Product code | WLL | A | B | C | D | E | F | G | I | M | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BALPV015 | 1.5t | 38mm | 79mm | 66mm | 14mm | 13.5mm | 32mm | 25mm | 31mm | 3mm | 0.4kg |
| BALPV025 | 2.5t | 45mm | 92.5mm | 77mm | 16mm | 13.5mm | 36mm | 27mm | 37mm | 3.5mm | 0.6kg |
| BALPV040 | 4t | 51mm | 102mm | 87mm | 18mm | 16.5mm | 42mm | 32mm | 40.5mm | 2.5mm | 0.9kg |
| BALPV067 | 6.7t | 67mm | 138mm | 115mm | 24mm | 22.5mm | 61mm | 44mm | 55mm | 4mm | 2kg |
| BALPV100 | 10t | 67.5mm | 153.5mm | 129mm | 26.5mm | 26.5mm | 75mm | 53mm | 57.5mm | 4mm | 3kg |
| BALPV160 | 16t | 100mm | 215mm | 190mm | 40mm | 26mm | 95mm | 69mm | 85mm | 5mm | 6.9kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
