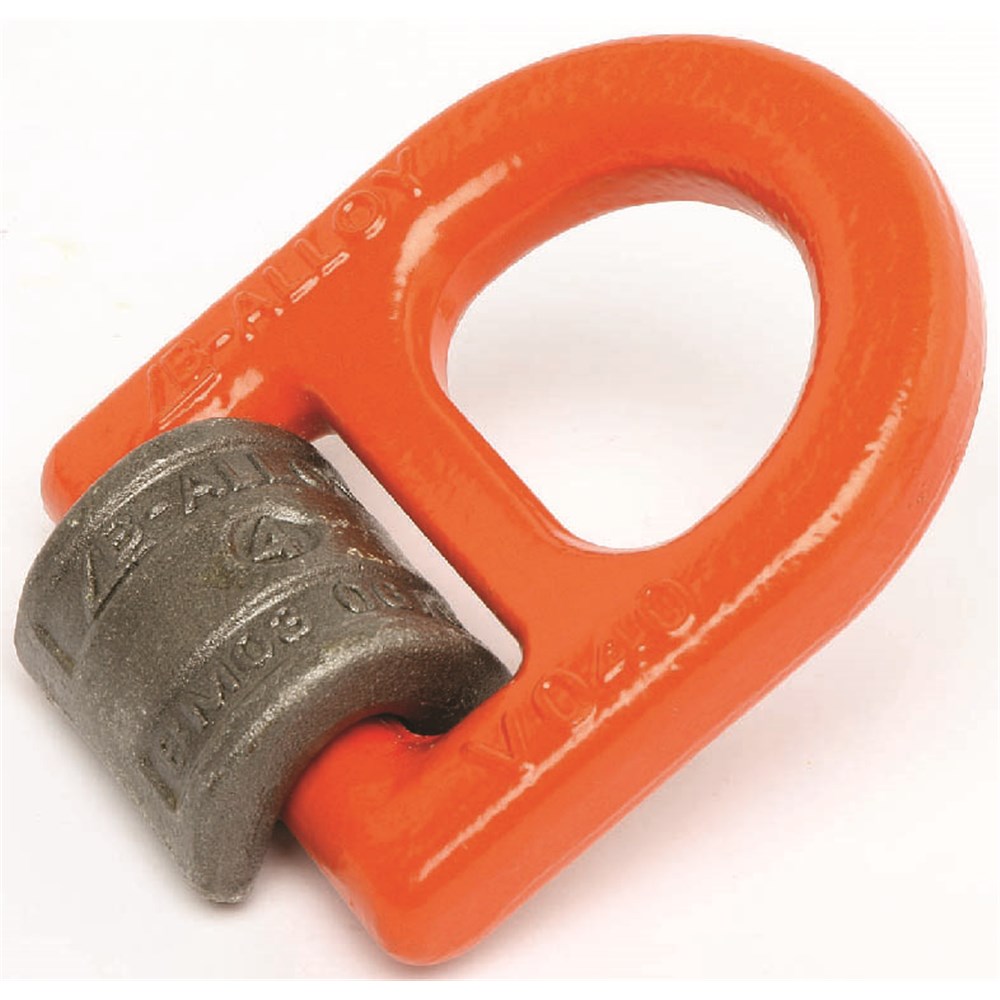

Beaver B-Alloy-V Weld-On Lifting And Lashing Rings 6.7t
BALPV067per Each
$55.47 inc GSTTrade $49.92, save $5.55Trade accounts save 10%. Apply with your ABN
| A | 67mm |
| B | 138mm |
| C | 115mm |
| D | 24mm |
| E | 22.5mm |
| F | 61mm |
| G | 44mm |
| I | 55mm |
| M | 4mm |
| WLL | 6.7t |
| Approx Weight | 2kg |
| Working Load Limit | 6.7t |
About this product
The Beaver B-Alloy-V Weld-On Lifting And Lashing Rings 6.7t is a permanent lifting and lashing point you weld straight onto the structure or load, rated to a 6.7t working load limit at all angles. It sits near the heavier end of the range, with a 138mm long weld block, a 67mm ring width and 24mm material through the bow, at around 2kg per unit.
Made from quenched and tempered alloy steel to Grade 100, with a powder coated baked enamel finish to handle knocks and weather. Height lugs on the weld block help you set the ring in the right position, and each unit carries marks for traceability. Welding should only be done by an authorised welder in line with EN 287 or AWS Standards, and instructions come with every unit. Complies to AS 3776. Common work includes mining, offshore exploration, road and rail transport, and maritime jobs.
Common questions
- what is the WLL of the Beaver BALPV067 lifting ring
- It has a working load limit of 6.7t, and that rating applies at all angles.
- who can weld on a Beaver B-Alloy lifting ring
- Welding should only be carried out by an authorised welder according to EN 287 or AWS Standards. Welding instructions and procedures are supplied with each unit, and detailed instructions are available on request.
- what is the Beaver weld-on lashing ring made of
- Quenched and tempered quality alloy steel in Grade 100, finished with a powder coated baked enamel coating.
- how heavy is the 6.7t weld-on lifting ring
- Around 2kg, with a 138mm weld block length and 115mm height dimension.
Full specifications
| Product code | WLL | A | B | C | D | E | F | G | I | M | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BALPV015 | 1.5t | 38mm | 79mm | 66mm | 14mm | 13.5mm | 32mm | 25mm | 31mm | 3mm | 0.4kg |
| BALPV025 | 2.5t | 45mm | 92.5mm | 77mm | 16mm | 13.5mm | 36mm | 27mm | 37mm | 3.5mm | 0.6kg |
| BALPV040 | 4t | 51mm | 102mm | 87mm | 18mm | 16.5mm | 42mm | 32mm | 40.5mm | 2.5mm | 0.9kg |
| BALPV067 | 6.7t | 67mm | 138mm | 115mm | 24mm | 22.5mm | 61mm | 44mm | 55mm | 4mm | 2kg |
| BALPV100 | 10t | 67.5mm | 153.5mm | 129mm | 26.5mm | 26.5mm | 75mm | 53mm | 57.5mm | 4mm | 3kg |
| BALPV160 | 16t | 100mm | 215mm | 190mm | 40mm | 26mm | 95mm | 69mm | 85mm | 5mm | 6.9kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
