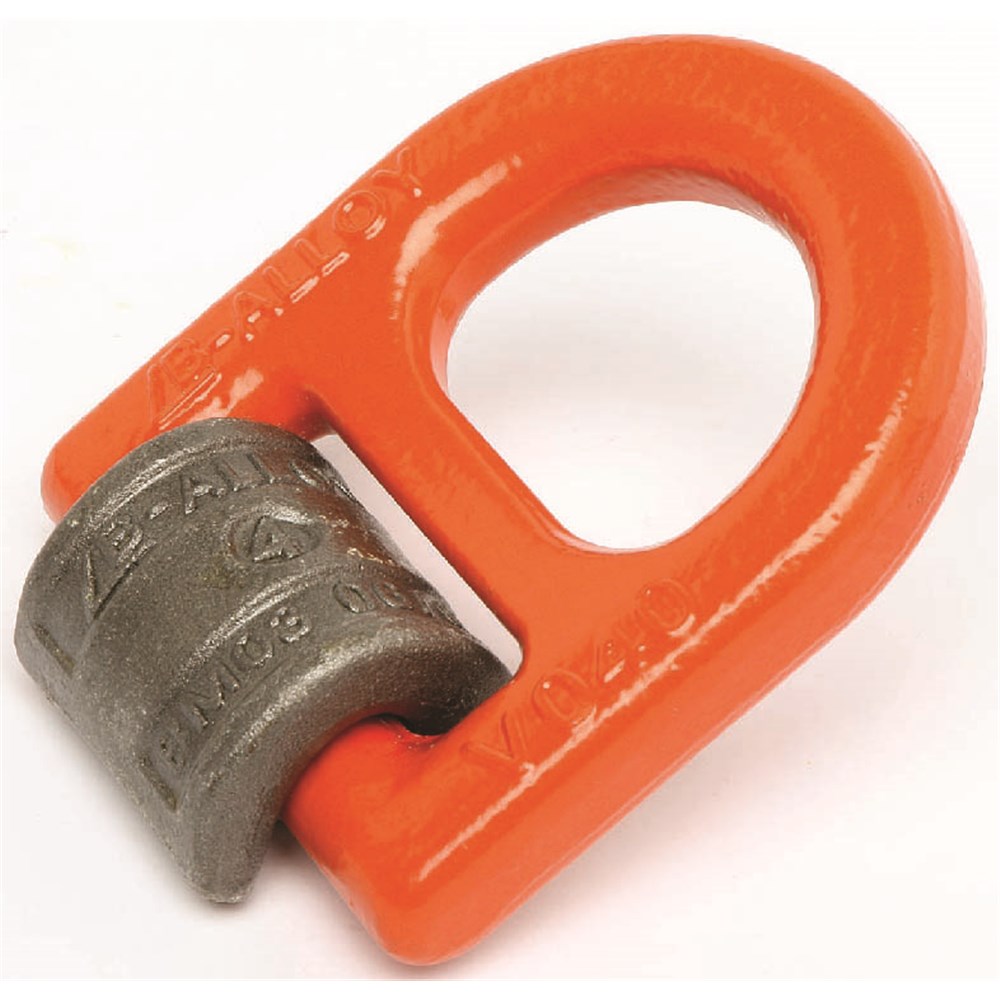

Beaver B-Alloy-V Weld-On Lifting And Lashing Rings 2.5t
BALPV025per Each
$17.20 inc GSTTrade $15.48, save $1.72Trade accounts save 10%. Apply with your ABN
| A | 45mm |
| B | 92.5mm |
| C | 77mm |
| D | 16mm |
| E | 13.5mm |
| F | 36mm |
| G | 27mm |
| I | 37mm |
| M | 3.5mm |
| WLL | 2.5t |
| Approx Weight | 0.6kg |
| Working Load Limit | 2.5t |
About this product
The Beaver B-Alloy-V Weld-On Lifting and Lashing Rings 2.5t give you a permanent lifting or lashing point welded straight onto the structure. This size is rated to a 2.5t working load limit at all angles, so you do not lose capacity as the sling angle changes. It is made from quenched and tempered alloy steel in Grade 100, with a 16mm bail and a 45mm ring opening, and the whole unit weighs about 0.6kg.
Body dimensions run 92.5mm by 77mm, keeping the footprint tight on trailer decks, frames and mine site plant. The powder coated baked enamel finish holds up in transport and offshore work, and identification marks are cast in for traceability. Welding must be done by an authorised welder to EN 287 or AWS Standards, using the height lugs on a weld block to set position. Instructions come with each unit. Complies to AS 3776.
Common questions
- what is the WLL of the Beaver B-Alloy-V 2.5t weld on ring
- It has a working load limit of 2.5t, and that rating applies at all angles rather than dropping off as the pull direction changes.
- what standard does the Beaver weld on lifting ring comply with
- It complies to AS 3776. The welding itself should only be carried out by an authorised welder according to EN 287 or AWS Standards.
- what material and finish are Beaver B-Alloy weld on lashing rings
- Quenched and tempered alloy steel in Grade 100, finished with a powder coated baked enamel coating for durability.
Full specifications
| Product code | WLL | A | B | C | D | E | F | G | I | M | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BALPV015 | 1.5t | 38mm | 79mm | 66mm | 14mm | 13.5mm | 32mm | 25mm | 31mm | 3mm | 0.4kg |
| BALPV025 | 2.5t | 45mm | 92.5mm | 77mm | 16mm | 13.5mm | 36mm | 27mm | 37mm | 3.5mm | 0.6kg |
| BALPV040 | 4t | 51mm | 102mm | 87mm | 18mm | 16.5mm | 42mm | 32mm | 40.5mm | 2.5mm | 0.9kg |
| BALPV067 | 6.7t | 67mm | 138mm | 115mm | 24mm | 22.5mm | 61mm | 44mm | 55mm | 4mm | 2kg |
| BALPV100 | 10t | 67.5mm | 153.5mm | 129mm | 26.5mm | 26.5mm | 75mm | 53mm | 57.5mm | 4mm | 3kg |
| BALPV160 | 16t | 100mm | 215mm | 190mm | 40mm | 26mm | 95mm | 69mm | 85mm | 5mm | 6.9kg |
