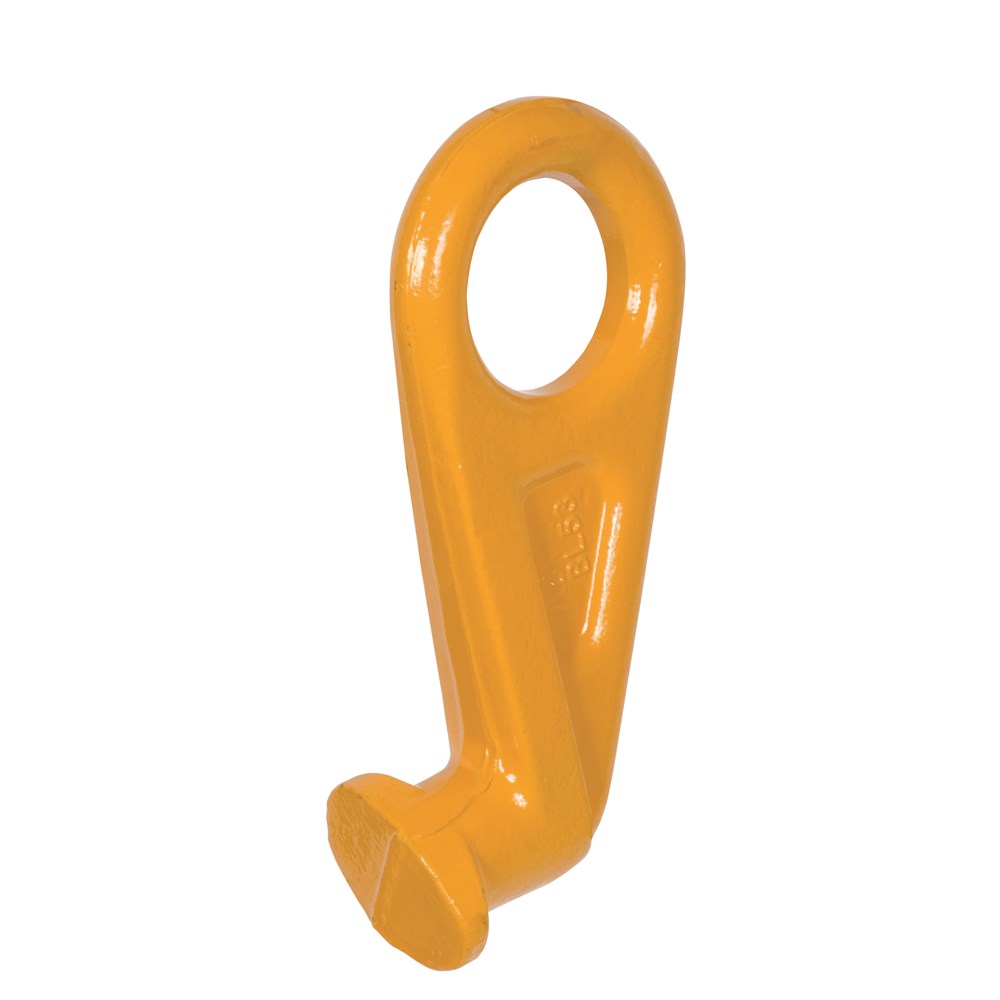

Beaver G80 Eye Container Hook Right 45°
886845Rper Each
$131.86 inc GSTTrade $118.67, save $13.19Trade accounts save 10%. Apply with your ABN
| a | 46mm |
| d | 70mm |
| e | 48mm |
| f | 75mm |
| h | 25mm |
| l | 240mm |
| r | 60mm |
| WLL | 12.5t |
| Hook Angle | Right 45° |
| Approx Weight | 4kg |
About this product
The Beaver G80 Eye Container Hook Right 45° is a specialty hook for picking up shipping containers by their corner castings. The 45 degree right hand offset is the point of difference here, so the hook sits square on the casting when the legs of your assembly come in on an angle. Run it with the matching left hand hook as a pair. Working load limit is 12.5t and the hook measures 240mm long, with a 25mm throat opening and a 46mm eye.
Made from heat treated alloy steel in Grade 80, so you get the strength without carrying dead weight, at roughly 4kg per hook. The large diameter eye takes a range of shackle and chain connections, which makes it easy to build into an existing container lifting set. Quality testing is carried out through manufacture and every hook is marked for identification. Complies to AS 3776.
Common questions
- what is the WLL of the Beaver G80 eye container hook
- This hook has a working load limit of 12.5t. It is approved for container lifting as part of an assembly.
- do I need both left and right 45 degree container hooks
- Container hooks are generally used in pairs, so most crews run a right 45 degree hook with the matching left hand version. The 45 degree angle suits lifting where the legs come in on an angle.
- what is the Beaver container hook made from
- It is made from heat treated alloy steel to Grade 80, which keeps the weight down to about 4kg while holding the 12.5t rating.
Full specifications
| Product code | Hook Angle | WLL | a | r | d | h | f | e | l | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 886845L | Left 45° | 12.5t | 46mm | 60mm | 70mm | 25mm | 75mm | 48mm | 240mm | 4kg |
| 886845R | Right 45° | 12.5t | 46mm | 60mm | 70mm | 25mm | 75mm | 48mm | 240mm | 4kg |
