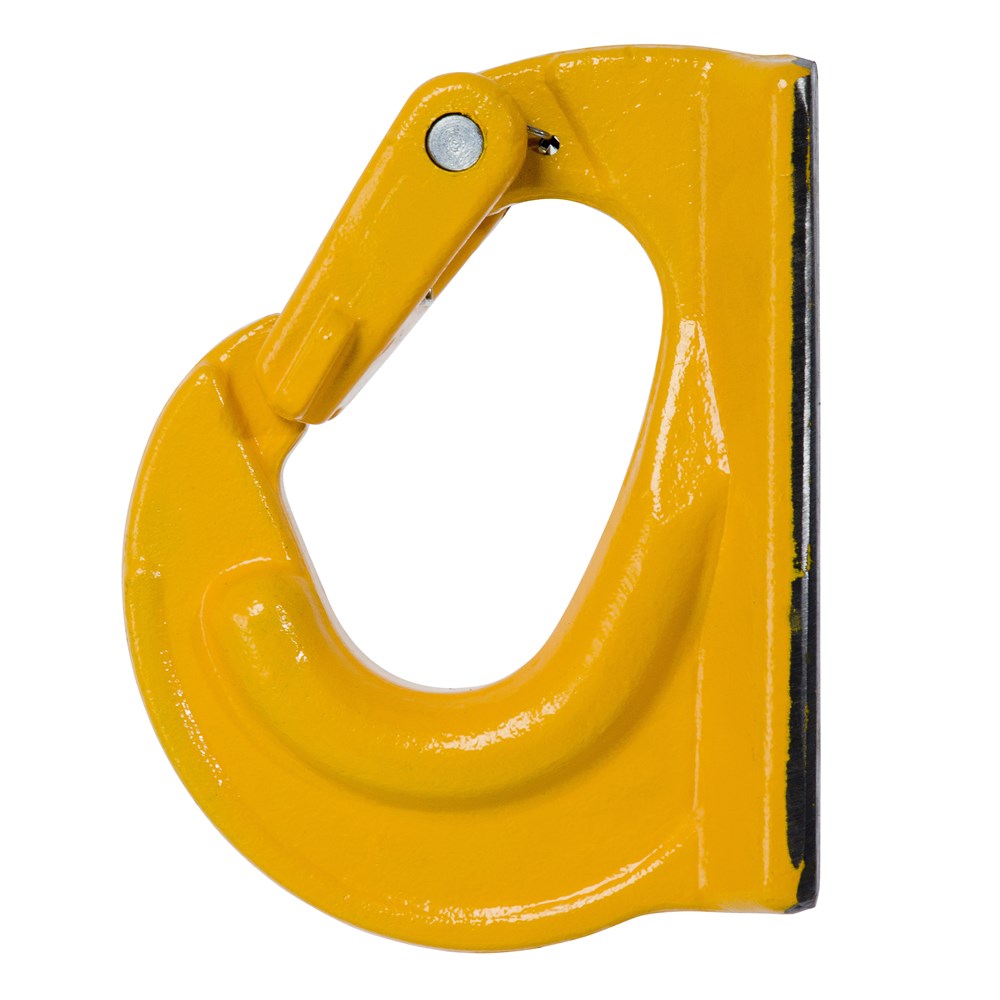

Beaver G80 Weld-On Safety Excavator Hook 10t
886710per Each
$255.18 inc GSTTrade $229.66, save $25.52Trade accounts save 10%. Apply with your ABN
| b | 169.5mm |
| g | 51mm |
| w | 53mm |
| L1 | 223mm |
| L2 | 154mm |
| WLL | 10t |
| Approx Weight | 5.17kg |
| Working Load Limit | 10t |
About this product
The Beaver G80 Weld-On Safety Excavator Hook 10t is a weld-on hook for excavator bucket lifting points, spreader beam attachments and fixed tie down points. At 10t working load limit, it is the heavy end of the range, suited to bigger machines and lifts where the smaller sizes run out of capacity. The hook measures 223mm overall (L1) with a 154mm L2, a 51mm gate opening and 53mm width, and weighs roughly 5.17kg.
Made from heat treated alloy steel, so you get the strength of Grade 80 without a lot of extra mass hanging off the bucket. The safety latch allows axial loading and locks positively once the load is on. Beaver marks its Grade 80 hooks for easy identification on site, and quality testing is carried out through manufacture. Complies to AS 3776. Weld it on properly by a competent welder before it sees any load.
Common questions
- what is the WLL of the Beaver G80 weld-on excavator hook 10t
- This size has a working load limit of 10t. It is the largest of the four sizes in the Beaver G80 Weld-On Safety Excavator Hook range.
- what standard does the Beaver G80 weld on hook comply with
- It complies to AS 3776. Beaver Grade 80 hooks also carry distinguishing marks so you can identify them on site.
- what is the Beaver G80 weld on excavator hook made of
- Heat treated alloy steel, which is what gives Grade 80 components their strength at a relatively low weight. This hook weighs about 5.17kg.
Full specifications
| Product code | WLL | b | g | L1 | L2 | w | Approx Weight |
|---|---|---|---|---|---|---|---|
| 886701A | 1t | 53mm | 18mm | 87mm | 55mm | 20mm | 0.35kg |
| 886703A | 3t | 106mm | 30.5mm | 129mm | 86mm | 36mm | 1.2kg |
| 886705A | 5t | 133mm | 34mm | 171mm | 118.5mm | 43.5mm | 2.46kg |
| 886708A | 8t | 136.5mm | 34mm | 177mm | 118.5mm | 51mm | 3.26kg |
| 886710A | 10t | 169.5mm | 51mm | 223mm | 154mm | 53mm | 5.17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
