What is the WLL of the Beaver G80 7-8mm swivel self locking hook?

It has a working load limit of 2t, matched to 7-8mm grade 80 chain.

Does the swivel turn under load?

Yes. The heavy duty ball bearing lets the hook rotate while loaded, which takes the twist out of the sling rather than locking it in.

What chain size does the 886607 hook suit?

It is made for 7-8mm grade 80 chain. The range runs from 6mm to 20mm if you need another size.

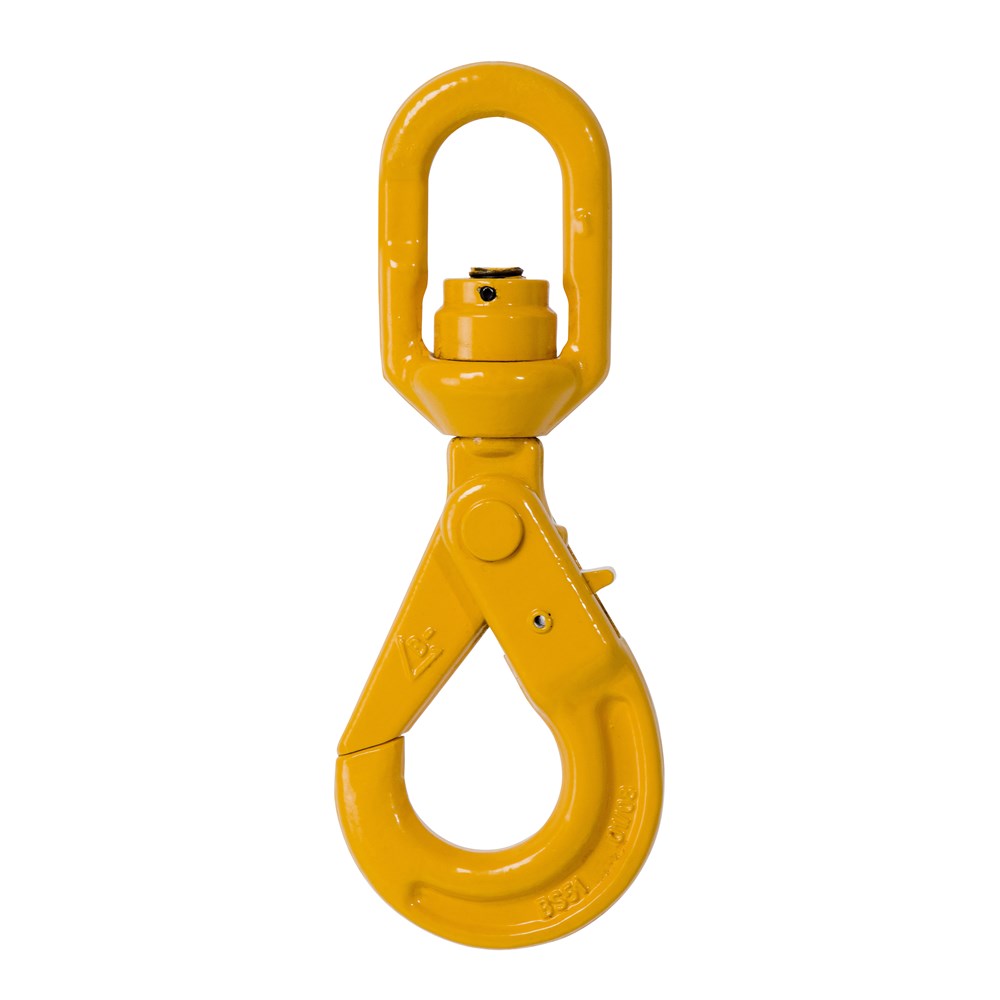

Beaver G80 Eye Swivel Self Locking Hook With Ball Bearing 7-8mm

Name: Beaver G80 Eye Swivel Self Locking Hook With Ball Bearing 7-8mm
Brand: Beaver
SKU: 886607
Price: 43.62 AUD
Availability: InStock

886607per Each

Chain Size

$43.62 inc GSTTrade $39.26, save $4.36Trade accounts save 10%. Apply with your ABN

e	195mm
g	35mm
h	26mm
w	36mm
d2	13mm
WLL	2t
Chain Size	7-8mm
Approx Weight	1.1kg

About this product

The Beaver G80 Eye Swivel Self Locking Hook With Ball Bearing in 7-8mm is the 2t rated end fitting for grade 80 chain slings, letting the load spin without winding up the chain. The ball bearing swivel turns under load, so twist works its way out instead of building into the sling. The hook locks itself shut once weight is on it. At 195mm long and around 1.1kg, it is a manageable size for the 2t end of the range.

The eye is enlarged to take a bigger shackle without pulling the hook apart, with a 13mm eye section, 36mm width and a 26mm throat opening. Made from heat treated alloy steel and tested through manufacture, with identification marks stamped on. Complies to AS 3776.

Common questions

What is the WLL of the Beaver G80 7-8mm swivel self locking hook?: It has a working load limit of 2t, matched to 7-8mm grade 80 chain.
Does the swivel turn under load?: Yes. The heavy duty ball bearing lets the hook rotate while loaded, which takes the twist out of the sling rather than locking it in.
What chain size does the 886607 hook suit?: It is made for 7-8mm grade 80 chain. The range runs from 6mm to 20mm if you need another size.

Full specifications

Product code	Chain Size	WLL	e	d2	h	g	w	Approx Weight
886606	6mm	1.1t	163.3mm	11.5mm	19mm	27mm	32.5mm	0.71kg
886607	7-8mm	2t	195mm	13mm	26mm	35mm	36mm	1.1kg
886610	10mm	3.2t	237mm	15.5mm	30mm	44mm	42mm	2kg
886613	13mm	5.3t	282mm	17mm	27mm	53mm	50mm	4kg
886616	16mm	8t	341.5mm	21.5mm	48mm	60mm	61mm	7.3kg
886620	20mm	12.5t	399.5mm	26.5mm	61mm	87mm	76mm	11.6kg
