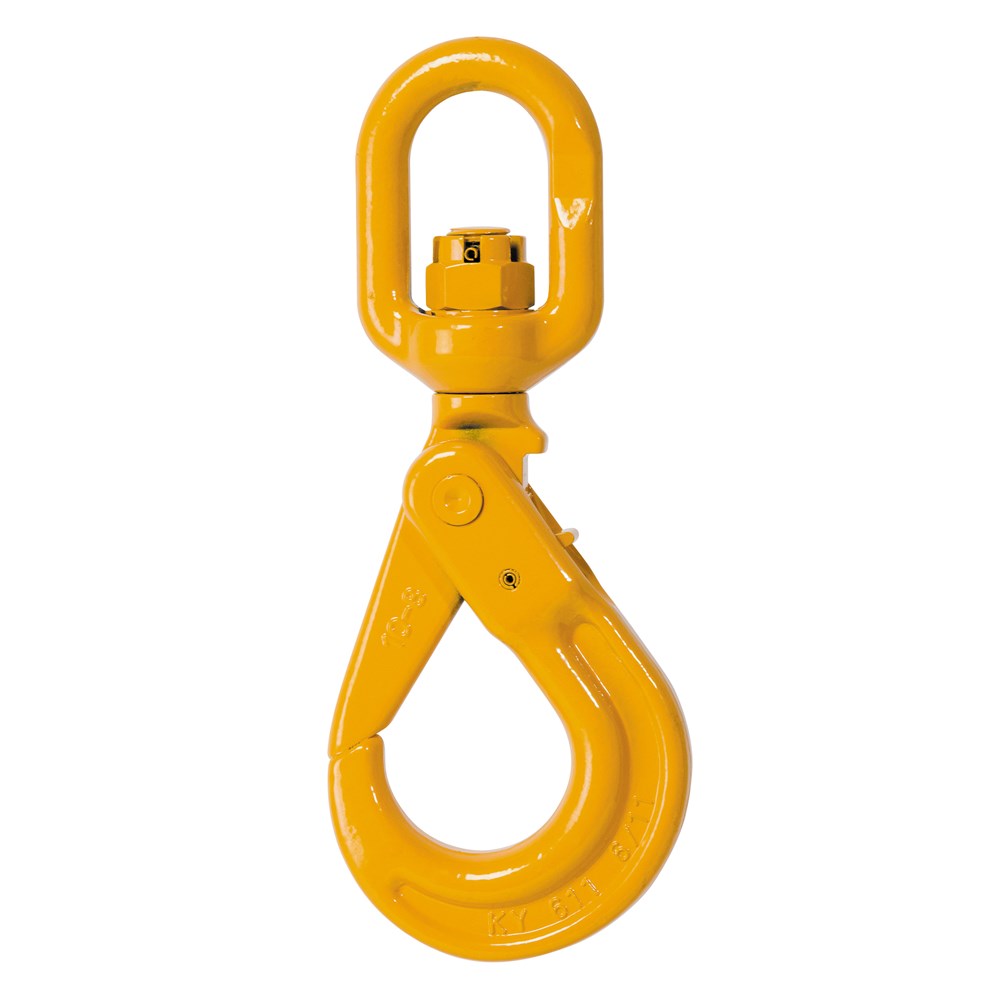

Beaver G80 Eye Swivel Self Locking Hook 13mm
886513per Each
$154.09 inc GSTTrade $138.68, save $15.41Trade accounts save 10%. Apply with your ABN
| e | 285mm |
| g | 52mm |
| h | 40mm |
| w | 52mm |
| d2 | 22mm |
| WLL | 5.3t |
| Chain Size | 13mm |
| Approx Weight | 4.27kg |
About this product
The Beaver G80 Eye Swivel Self Locking Hook 13mm is the connection point for a Grade 80 chain sling, with a self locking latch that stays shut under load. This 13mm size carries a working load limit of 5.3t, which puts it in the heavier end of the range for lifts that a smaller hook will not cover. Overall length is 285mm, the throat opening is 40mm and the hook width measures 52mm, with a 22mm eye section.
Made from heat treated alloy steel and tested through the manufacturing process, it carries identification marks so crews can confirm what they are rigging with. At roughly 4.27kg it has some heft, so factor that into your sling weight. One thing to remember on site, the swivel is for positioning the hook before the lift, not for turning a suspended load. Never swivel this hook under load.
Common questions
- what is the WLL of a 13mm G80 self locking hook
- This 13mm Beaver G80 Eye Swivel Self Locking Hook has a working load limit of 5.3t. That rating applies to the hook as part of a Grade 80 system.
- can you swivel a Beaver self locking hook under load
- No. The swivel is only for lining the hook up before you take the load. Do not swivel this hook while it is loaded.
- what is the Beaver G80 eye swivel hook made from
- Heat treated alloy steel, the same as the rest of the Beaver Grade 80 lifting component range, which suits it to heavy lifting work.
Full specifications
| Product code | Chain Size | WLL | e | d2 | h | g | w | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 886507 | 7-8mm | 2t | 189mm | 14mm | 25mm | 33mm | 34mm | 1.2kg |
| 886510 | 10mm | 3.2t | 229mm | 16mm | 34mm | 45mm | 42mm | 2.23kg |
| 886513 | 13mm | 5.3t | 285mm | 22mm | 40mm | 52mm | 52mm | 4.27kg |
| 886516 | 16mm | 8t | 335mm | 23mm | 53mm | 67mm | 60mm | 7.75kg |
| 886520 | 20mm | 12.5t | 375mm | 27mm | 64mm | 77mm | 74mm | 11.9kg |
