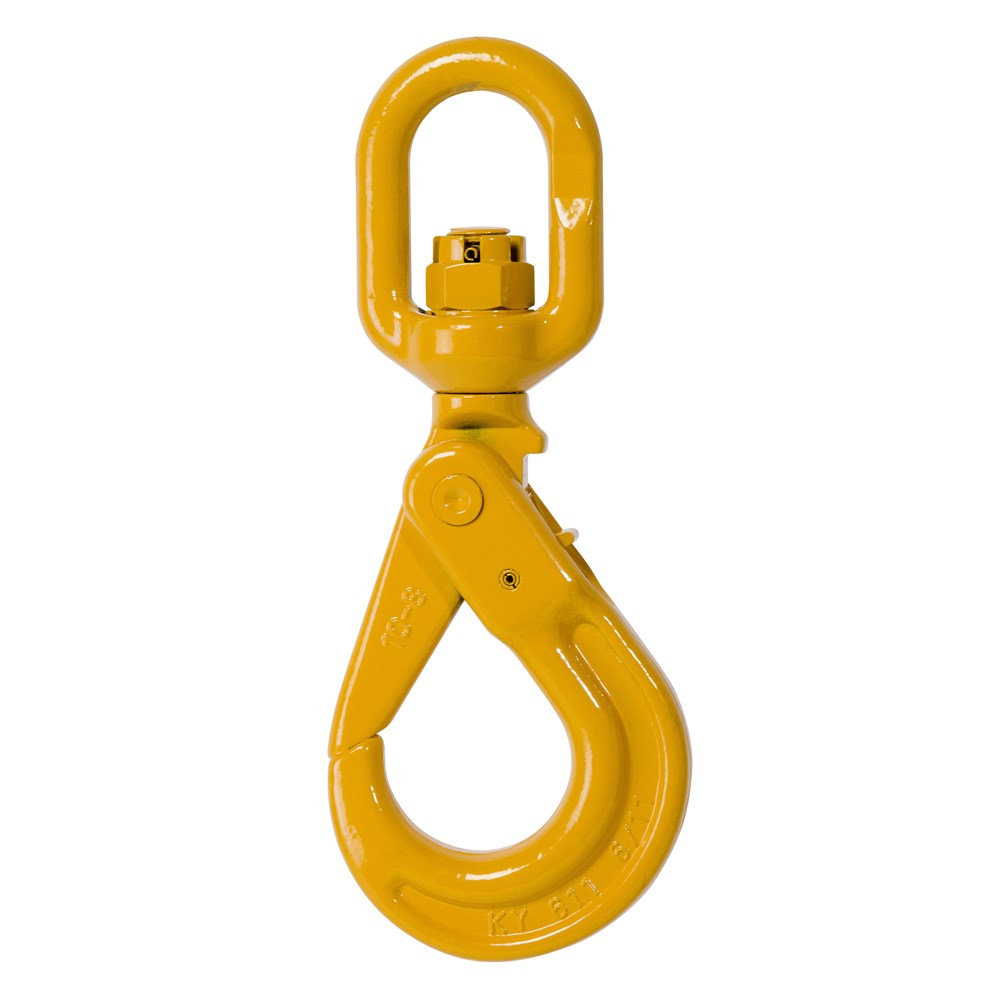

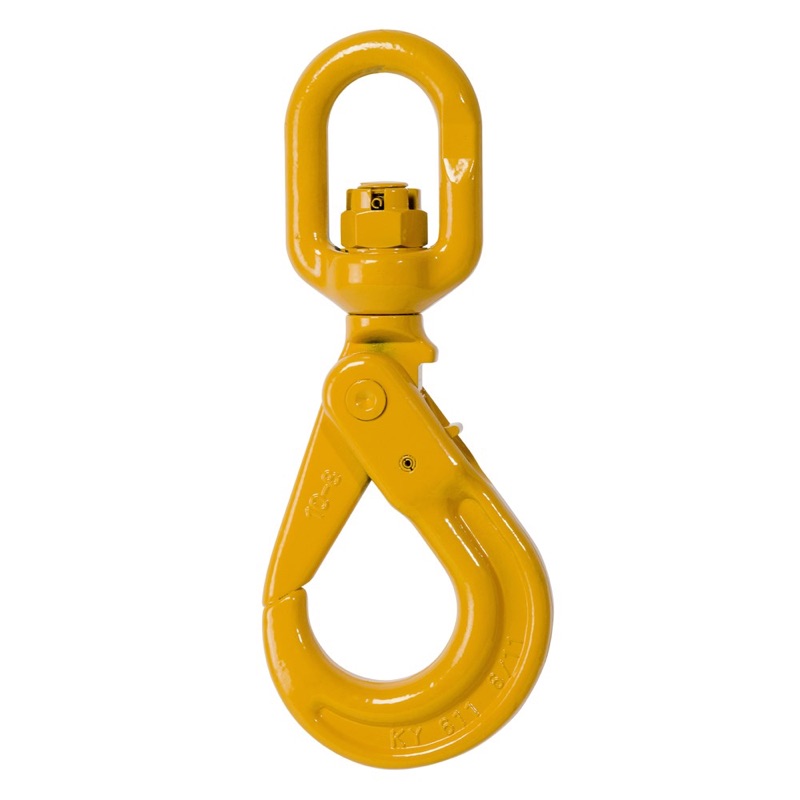

Beaver G80 Eye Swivel Self Locking Hook 10mm
886510per Each
$78.57 inc GSTTrade $70.71, save $7.86Trade accounts save 10%. Apply with your ABN
| e | 229mm |
| g | 45mm |
| h | 34mm |
| w | 42mm |
| d2 | 16mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 2.23kg |
About this product
The Beaver G80 Eye Swivel Self Locking Hook 10mm is the terminal hook for a Grade 80 chain sling, rated to a 3.2t working load limit on 10mm chain. The spring loaded latch snaps shut on the load, so the hook stays closed once the sling takes weight. The eye swivels for positioning the hook before the lift, not under load, so line it up on the ground and leave it be once the crane takes the strain.
Sitting mid range in the size lineup, this one measures 229mm overall with a 34mm throat opening, a 45mm inside eye width and a 16mm eye diameter. Weight is around 2.23kg. It is made from heat treated alloy steel and carries identification marks stamped into the body, with quality testing carried out through manufacturing.
Common questions
- what is the WLL of a 10mm G80 self locking hook
- This size is rated to a 3.2t working load limit, matched to 10mm Grade 80 chain.
- can you swivel this hook under load
- No. The swivel eye is there to position the hook before the lift, not to rotate the load. Set it up before you take the strain.
- what is the throat opening on the beaver 10mm self locking hook
- The throat opening is 34mm, with 229mm overall length and a 16mm eye diameter.
Full specifications
| Product code | Chain Size | WLL | e | d2 | h | g | w | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 886507 | 7-8mm | 2t | 189mm | 14mm | 25mm | 33mm | 34mm | 1.2kg |
| 886510 | 10mm | 3.2t | 229mm | 16mm | 34mm | 45mm | 42mm | 2.23kg |
| 886513 | 13mm | 5.3t | 285mm | 22mm | 40mm | 52mm | 52mm | 4.27kg |
| 886516 | 16mm | 8t | 335mm | 23mm | 53mm | 67mm | 60mm | 7.75kg |
| 886520 | 20mm | 12.5t | 375mm | 27mm | 64mm | 77mm | 74mm | 11.9kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
