What is the WLL of the Beaver G80 20mm self locking hook?

It has a working load limit of 12.5t, matched to 20mm Grade 80 chain.

What chain size does the 886420Y hook fit?

It is made for 20mm Grade 80 chain and connects with a clevis and pin, no coupling link required.

What is the Beaver G80 clevis self locking hook made from?

Heat treated alloy steel, with quality testing done through the manufacturing process and identification marks on the hook.

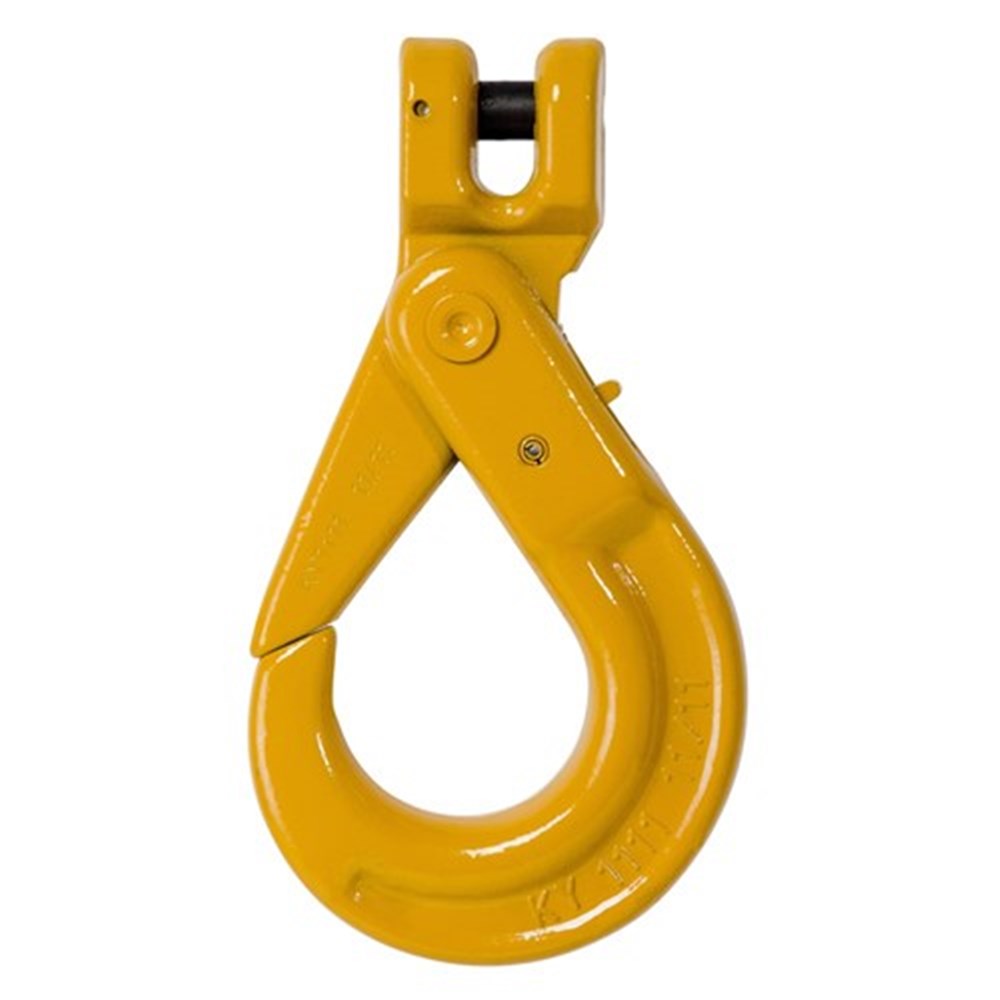

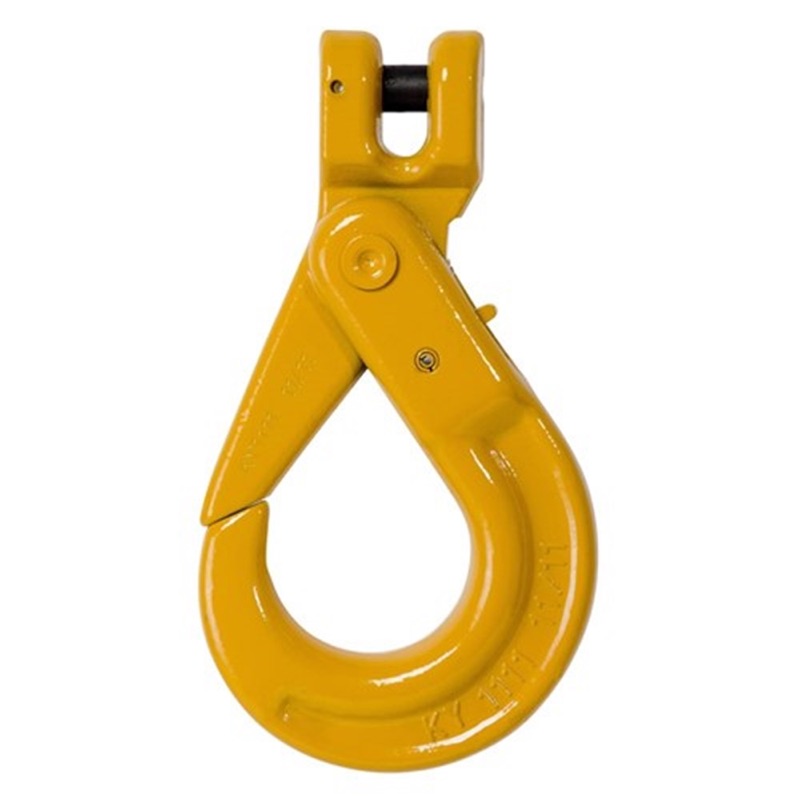

Beaver G80 Clevis Self Locking Hook 20mm

Name: Beaver G80 Clevis Self Locking Hook 20mm
Brand: Beaver
SKU: 886420Y
Price: 271.44 AUD
Availability: InStock

886420Yper Each

Chain Size

$271.44 inc GSTTrade $244.30, save $27.14Trade accounts save 10%. Apply with your ABN

b	200mm
d	24mm
e	235mm
g	77mm
h	64mm
WLL	12.5t
Chain Size	20mm
Approx Weight	8.6kg

About this product

The Beaver G80 Clevis Self Locking Hook 20mm is the top-end size in the range, built to terminate a 20mm Grade 80 chain sling with a hook that stays shut under load. Working load limit is 12.5t. The clevis fits straight over the chain with a pin, so there is no coupler needed in the assembly.

Made from heat treated alloy steel, with quality testing carried out through manufacturing and identification marks on the body. Key dimensions are 235mm overall length, 200mm clevis-to-bowl, 24mm pin, a 77mm bowl and 64mm opening, and it weighs around 8.6kg, so it is a two-hand hook on the deck. Suits heavy lifts on mine sites, workshops and construction where a self locking hook is the call over a standard safety latch.

Common questions

What is the WLL of the Beaver G80 20mm self locking hook?: It has a working load limit of 12.5t, matched to 20mm Grade 80 chain.
What chain size does the 886420Y hook fit?: It is made for 20mm Grade 80 chain and connects with a clevis and pin, no coupling link required.
What is the Beaver G80 clevis self locking hook made from?: Heat treated alloy steel, with quality testing done through the manufacturing process and identification marks on the hook.

Full specifications

Product code	Chain Size	WLL	e	d	h	b	g	Approx Weight
886406Y	6mm	1.1t	98mm	8mm	22mm	75mm	28mm	0.57kg
886407Y	7-8mm	2t	120mm	10mm	25mm	86mm	33mm	0.91kg
886410Y	10mm	3.2t	150mm	12.5mm	34mm	111mm	45mm	1.675kg
886413Y	13mm	5.3t	185mm	16mm	40mm	136mm	52mm	3.33kg
886416Y	16mm	8t	215mm	20mm	53mm	173mm	64mm	6kg
886420Y	20mm	12.5t	235mm	24mm	64mm	200mm	77mm	8.6kg
886422Y	22mm	15t	255mm	28mm	74mm	229mm	92mm	14.7kg
886426Y	26mm	21.2t	316mm	34mm	85mm	256mm	97mm	23.5kg
