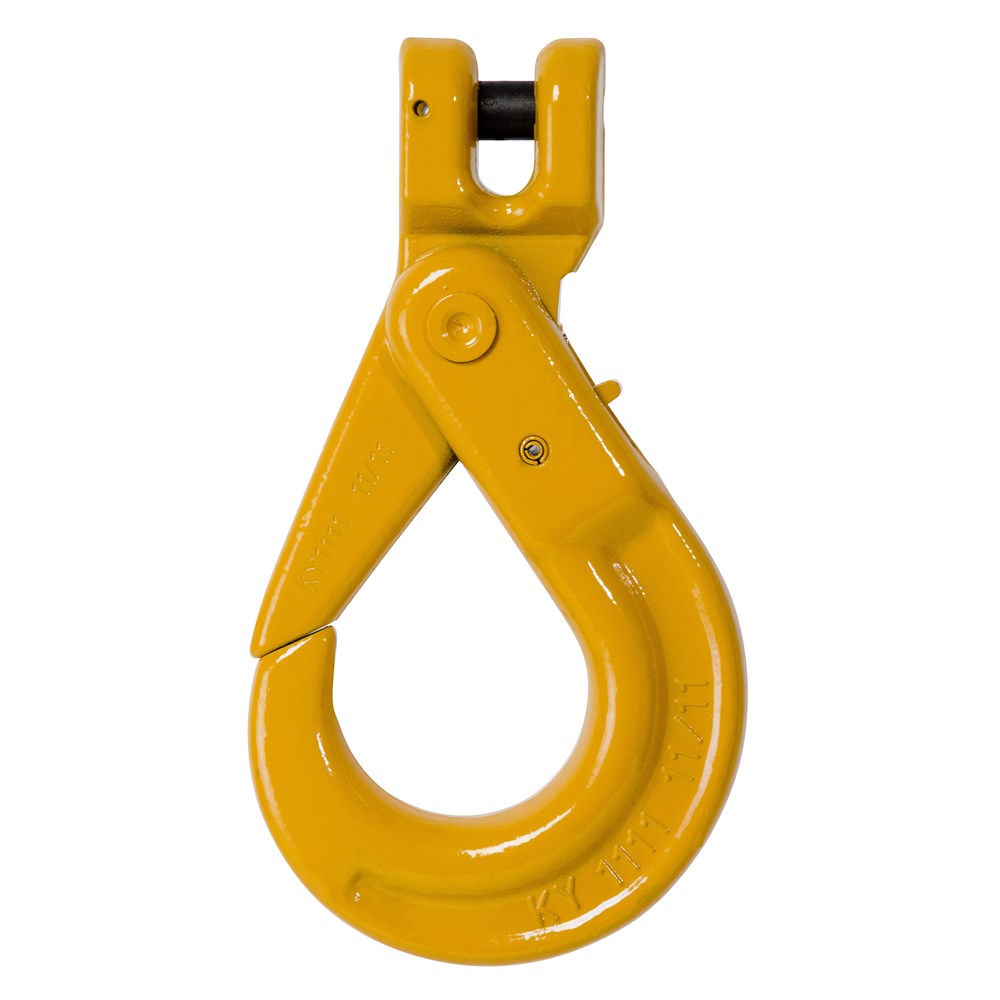

Beaver G80 Clevis Self Locking Hook 10mm
886410Yper Each
$61.51 Trade inc GST$68.34 without a trade accountTrade accounts save 10% — apply with your ABN
| b | 111mm |
| d | 12.5mm |
| e | 150mm |
| g | 45mm |
| h | 34mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 1.675kg |
Full specifications
| Product code | Chain Size | WLL | e | d | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 886406Y | 6mm | 1.1t | 98mm | 8mm | 22mm | 75mm | 28mm | 0.57kg |
| 886407Y | 7-8mm | 2t | 120mm | 10mm | 25mm | 86mm | 33mm | 0.91kg |
| 886410Y | 10mm | 3.2t | 150mm | 12.5mm | 34mm | 111mm | 45mm | 1.675kg |
| 886413Y | 13mm | 5.3t | 185mm | 16mm | 40mm | 136mm | 52mm | 3.33kg |
| 886416Y | 16mm | 8t | 215mm | 20mm | 53mm | 173mm | 64mm | 6kg |
| 886420Y | 20mm | 12.5t | 235mm | 24mm | 64mm | 200mm | 77mm | 8.6kg |
| 886422Y | 22mm | 15t | 255mm | 28mm | 74mm | 229mm | 92mm | 14.7kg |
| 886426Y | 26mm | 21.2t | 316mm | 34mm | 85mm | 256mm | 97mm | 23.5kg |
