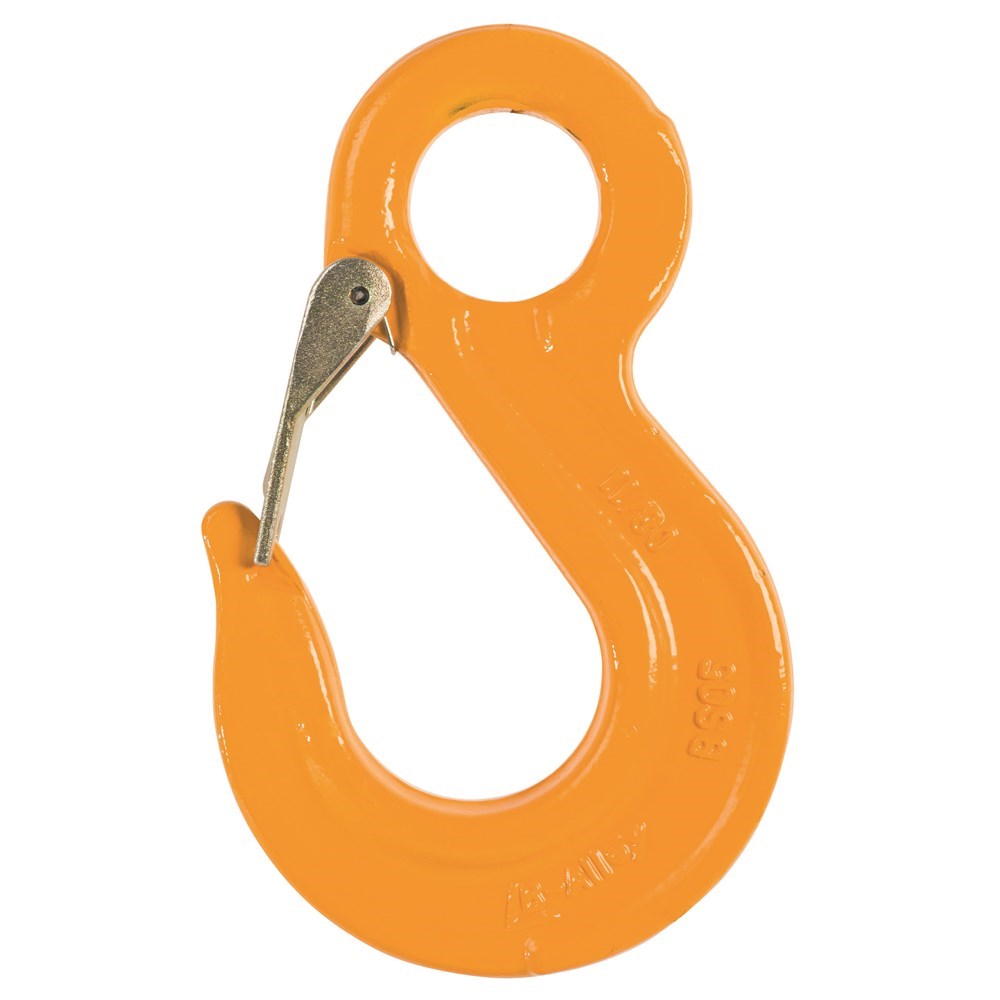

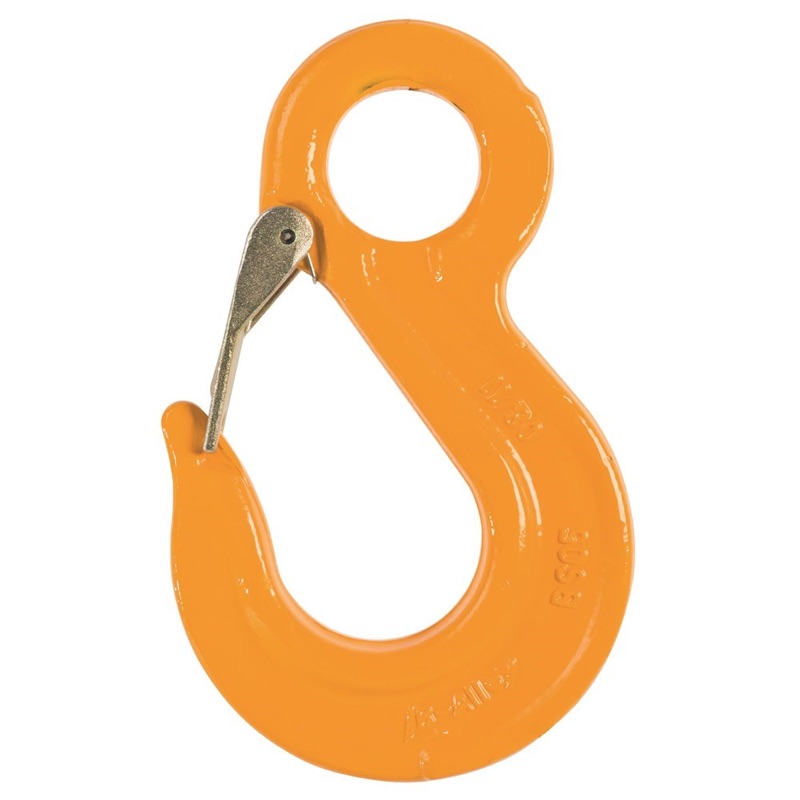

Beaver G80 Eye Sling Hook With Safety Latch 26mm
885826per Each
$713.74 inc GSTTrade $642.37, save $71.37Trade accounts save 10%. Apply with your ABN
| b | 262.8mm |
| e | 279mm |
| g | 81mm |
| h | 80.5mm |
| d1 | 64mm |
| d2 | 35mm |
| WLL | 21.2t |
| Chain Size | 26mm |
| Approx Weight | 13kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 26mm is the terminal hook on a heavy Grade 80 chain sling, giving you a positive connection point with a latch that keeps the load where you put it. At 21.2t working load limit on 26mm chain, this is the biggest end of the range, the size you reach for on heavy structural lifts and mine site work rather than general workshop rigging.
Built from heat treated alloy steel, with a 64mm throat opening and a 35mm eye to suit the chain size. Overall length is 279mm, width 81mm, and it weighs in around 13kg, so plan your handling and sling assembly accordingly. Quality testing happens through the manufacturing process, and the hook carries identification marks so crews can confirm what they have got on the hook during inspection.
Common questions
- what is the WLL of a 26mm G80 eye sling hook
- The 26mm Beaver G80 Eye Sling Hook With Safety Latch has a working load limit of 21.2t. It is matched to 26mm Grade 80 chain.
- what is the beaver g80 eye sling hook made of
- Heat treated alloy steel, which is what gives Grade 80 components their strength for heavy lifting. It also carries distinguishing marks for easy identification.
- how heavy is the 26mm eye sling hook
- Around 13kg for the hook alone, so it is worth factoring into your total sling weight and how the crew will handle it.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
