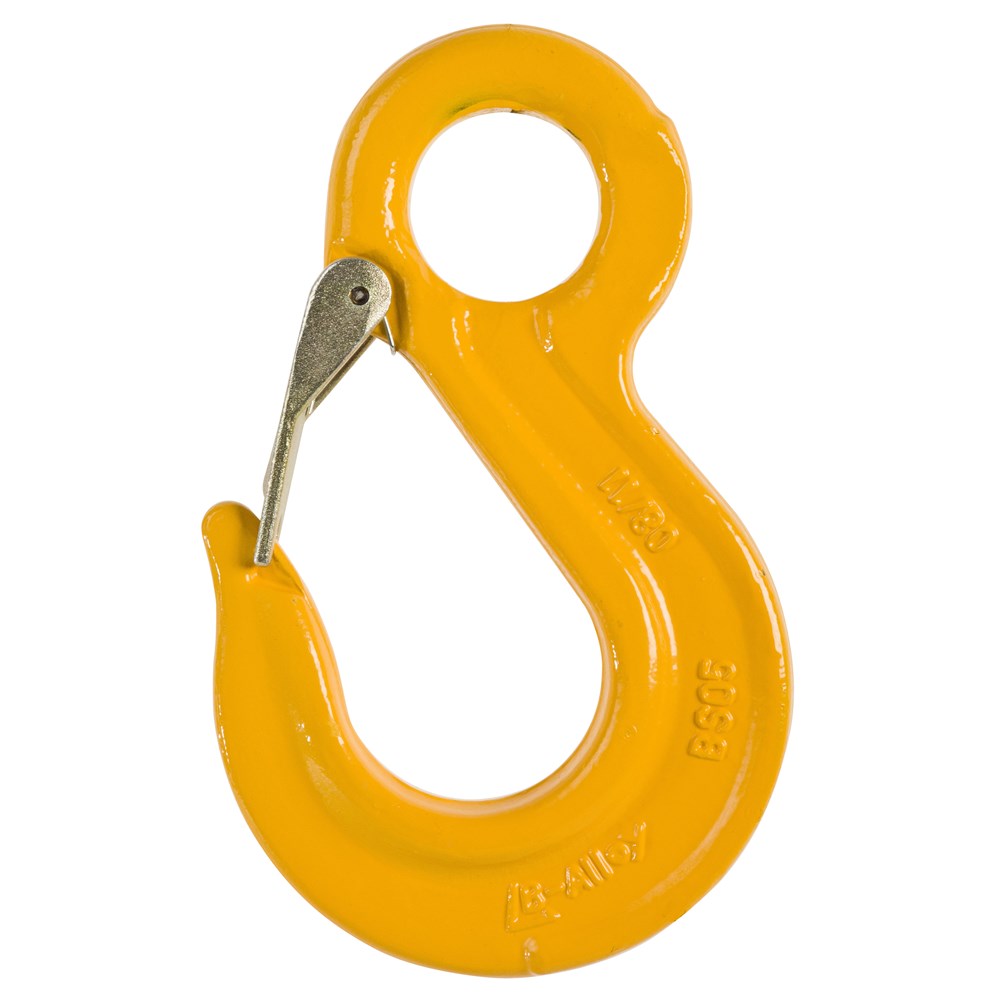

Beaver G80 Eye Sling Hook With Safety Latch 22mm
885822per Each
$181.85 inc GSTTrade $163.67, save $18.18Trade accounts save 10%. Apply with your ABN
| b | 259mm |
| e | 271mm |
| g | 71mm |
| h | 75.5mm |
| d1 | 62mm |
| d2 | 32mm |
| WLL | 15t |
| Chain Size | 22mm |
| Approx Weight | 8.5kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 22mm is the connection point at the business end of a heavy chain sling, with a spring latch to stop the load slipping off the bowl. At 22mm chain size it carries a 15t working load limit, making it the choice for big fabricated steel, heavy plant components and mine site lifts where the smaller sizes in the range run out of capacity.
Made from heat treated alloy steel and quality tested through the manufacturing process, it carries distinguishing marks so your crew can identify it on the ground. The hook measures 259mm at b and 271mm at e, with a 62mm eye and a 32mm throat opening, and weighs roughly 8.5kg. Check the latch springs shut cleanly and the throat has not opened before every lift.
Common questions
- what is the WLL of a 22mm G80 eye sling hook
- This size has a working load limit of 15t. It suits 22mm Grade 80 chain.
- what is the beaver g80 eye sling hook made of
- Heat treated alloy steel, quality tested through the manufacturing process. It also carries distinguishing marks for identification.
- how heavy is the 22mm beaver eye sling hook
- Around 8.5kg. It is a large hook, with an overall b dimension of 259mm and a 32mm throat opening.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
