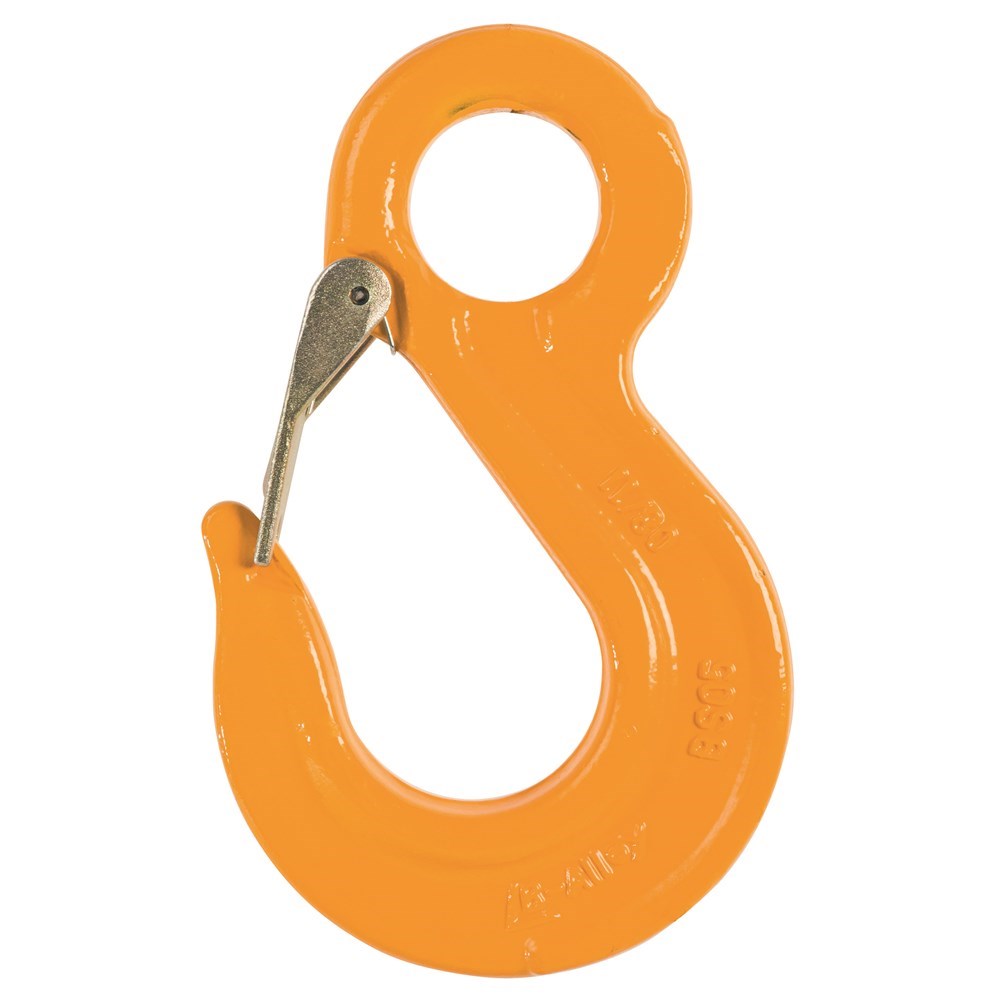

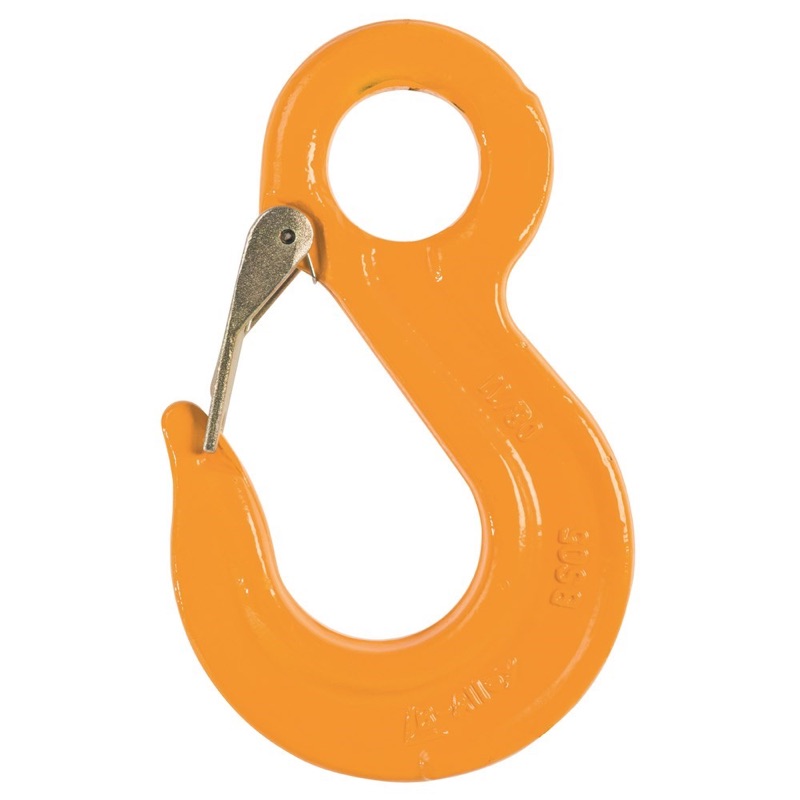

Beaver G80 Eye Sling Hook With Safety Latch 20mm
885820per Each
$129.24 inc GSTTrade $116.32, save $12.92Trade accounts save 10%. Apply with your ABN
| b | 198mm |
| e | 219mm |
| g | 48mm |
| h | 58.5mm |
| d1 | 62mm |
| d2 | 24mm |
| WLL | 12.5t |
| Chain Size | 20mm |
| Approx Weight | 5.8kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 20mm is the terminal hook for your heaviest grade 80 chain slings, rated to a 12.5t working load limit. It suits 20mm chain, making it the largest end of the range and the one you reach for on big crane lifts rather than general workshop work. The eye takes a connecting link or master link, and the spring latch keeps the sling in place while the load settles.
Built from heat treated alloy steel, with quality testing carried out through manufacturing and distinguishing marks stamped on for easy identification down the track. It is a solid piece of gear at roughly 5.8kg, with a 219mm overall length, a 58.5mm hook opening and a 62mm eye width. Check the latch springs back cleanly and the throat has not opened up before every lift.
Common questions
- what is the WLL of a 20mm grade 80 eye sling hook
- This hook carries a 12.5t working load limit on 20mm chain. That rating applies to the hook itself, so the rest of the sling needs to match.
- beaver g80 eye sling hook 20mm weight
- Approximately 5.8kg. Worth knowing if you are working out the tare weight of a made up chain sling.
- what is the beaver g80 eye sling hook made of
- Heat treated alloy steel, tested through the manufacturing process and marked for identification.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
