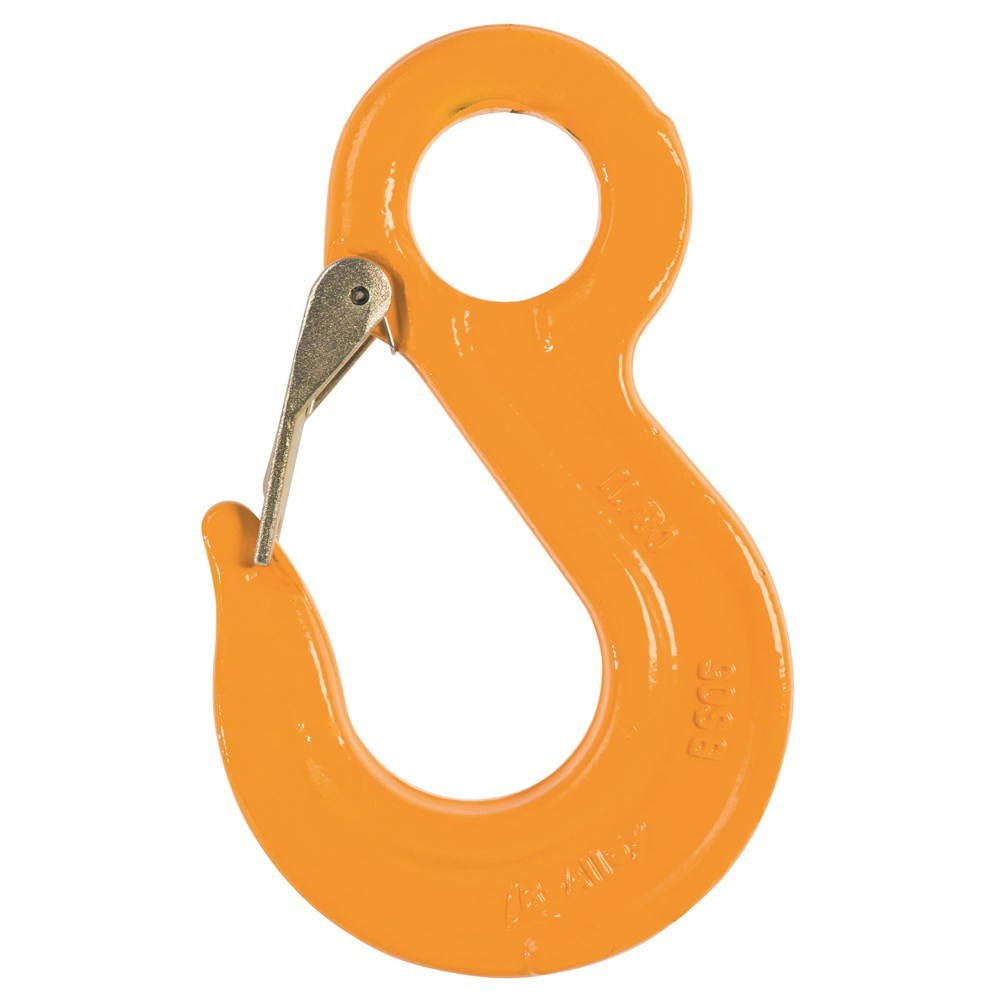

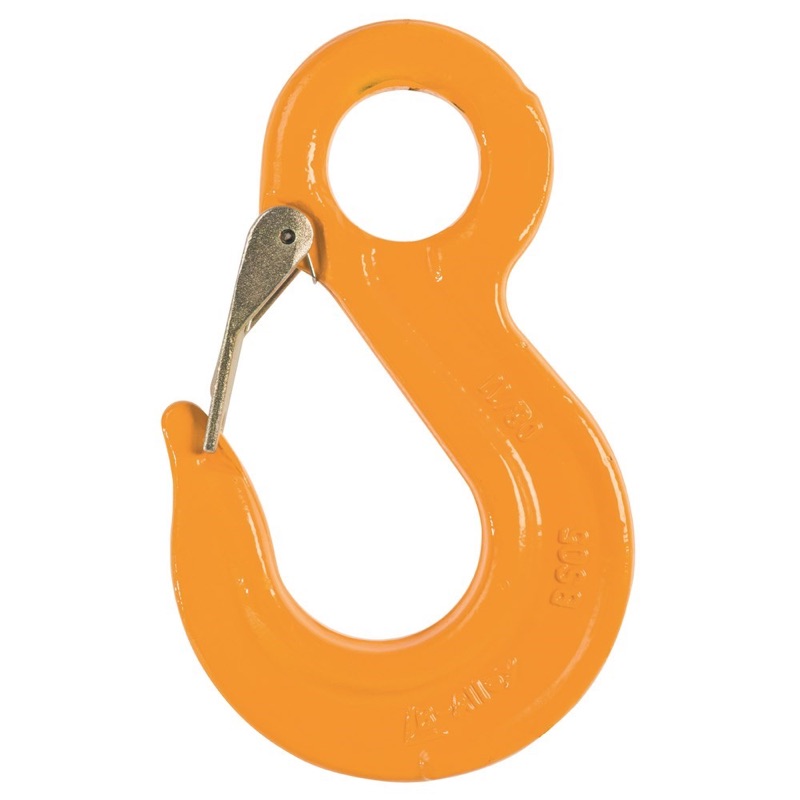

Beaver G80 Eye Sling Hook With Safety Latch 16mm
885816per Each
$64.16 Trade inc GST$71.29 without a trade accountTrade accounts save 10% — apply with your ABN
| b | 154mm |
| e | 184mm |
| g | 49mm |
| h | 44mm |
| d1 | 50mm |
| d2 | 23mm |
| WLL | 8t |
| Chain Size | 16mm |
| Approx Weight | 3.2kg |
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
