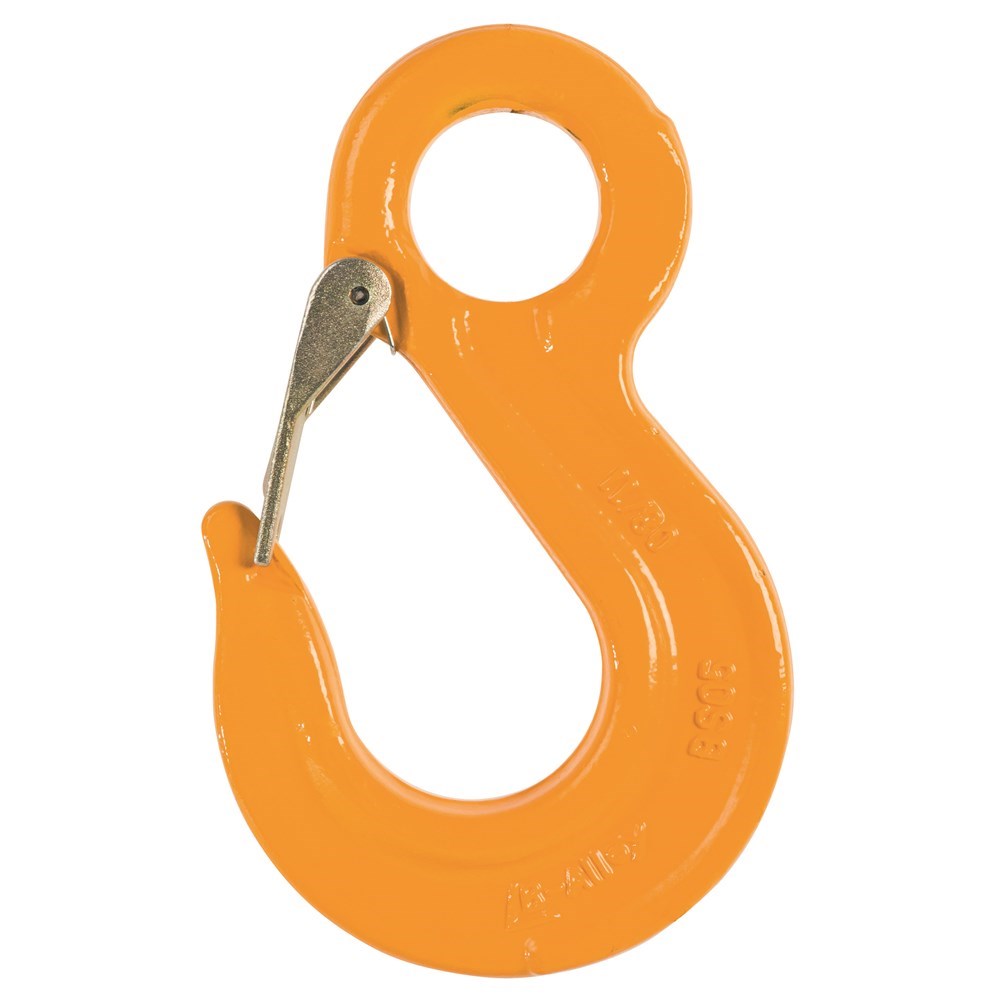

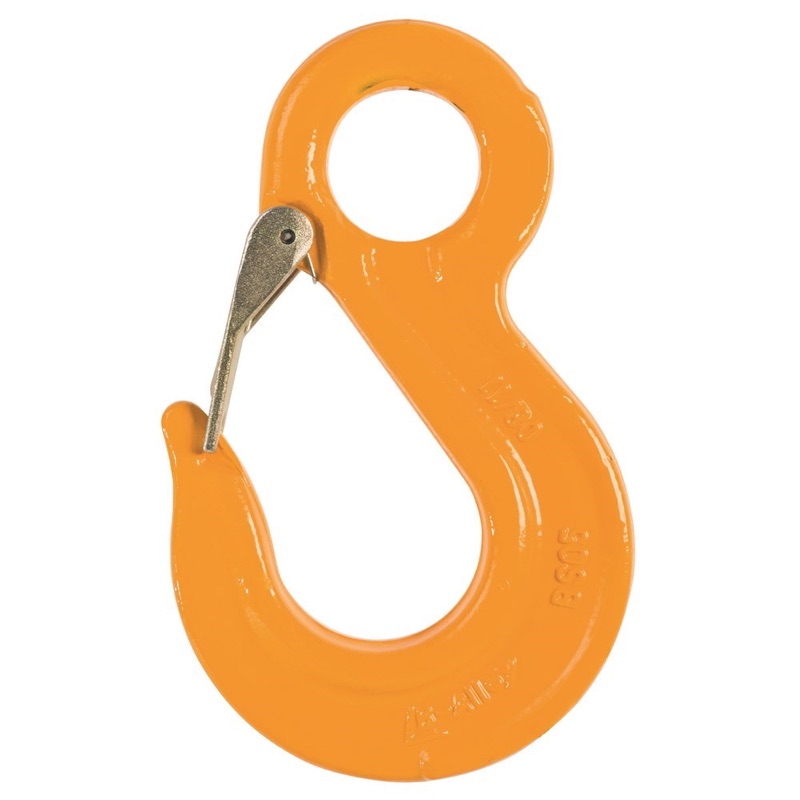

Beaver G80 Eye Sling Hook With Safety Latch 13mm
885813per Each
$28.34 inc GSTTrade $25.51, save $2.83Trade accounts save 10%. Apply with your ABN
| b | 146.5mm |
| e | 152mm |
| g | 39mm |
| h | 44.5mm |
| d1 | 43mm |
| d2 | 19mm |
| WLL | 5.3t |
| Chain Size | 13mm |
| Approx Weight | 2.35kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 13mm is the end fitting for a 13mm Grade 80 chain sling, giving you a rated hook with a spring latch to keep the load where you put it. Working load limit is 5.3t. The eye takes a connecting link or coupler, so it suits sling legs built for heavier lifting work on site or underground.
Made from heat treated alloy steel, with quality testing carried out through the manufacturing process and identification marks stamped on the body. Key dimensions are a 146.5mm length, 152mm overall height, 39mm throat opening and 44.5mm hook depth, with a 43mm eye width and 19mm eye thickness. Weight is around 2.35kg, which is worth knowing when you are building a multi leg sling and watching total mass.
Common questions
- what is the WLL of a 13mm G80 eye sling hook
- This 13mm Beaver eye sling hook has a working load limit of 5.3t. That rating matches 13mm Grade 80 chain.
- what is the beaver g80 eye sling hook made of
- Heat treated alloy steel, with quality testing done through manufacturing and identification marks on the hook.
- how big is the throat opening on the 13mm eye sling hook
- The throat opening is 39mm and the hook depth is 44.5mm, so check your lifting point fits before you head out.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
