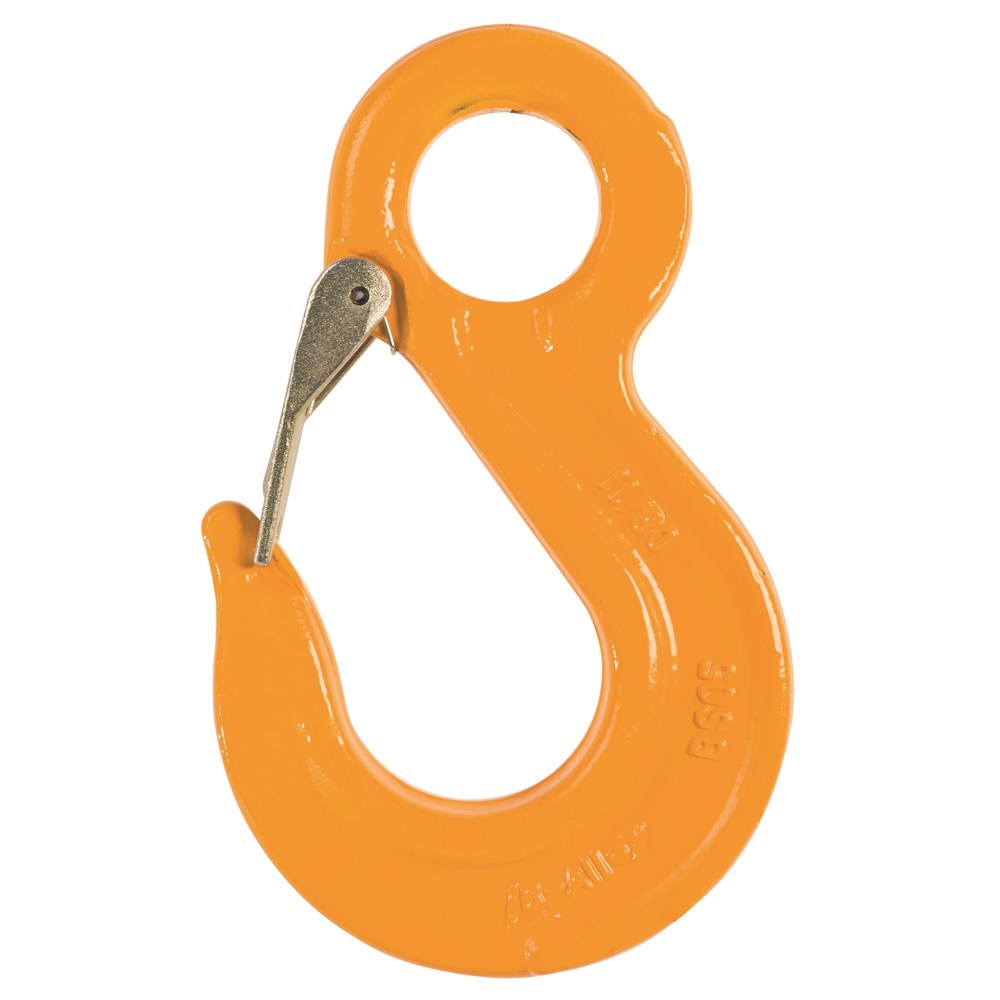

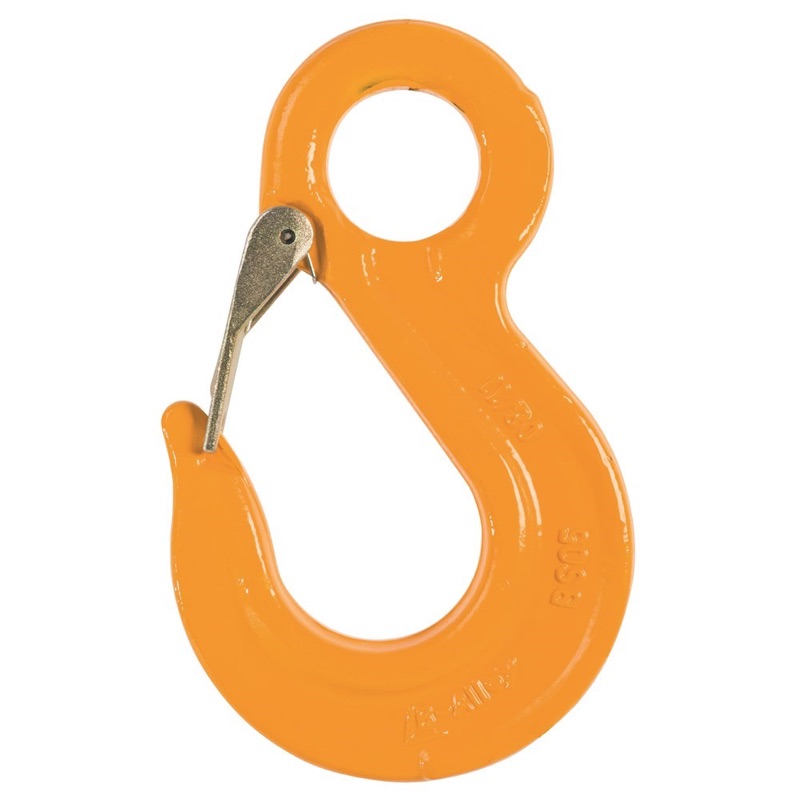

Beaver G80 Eye Sling Hook With Safety Latch 10mm
885810per Each
$14.60 inc GSTTrade $13.14, save $1.46Trade accounts save 10%. Apply with your ABN
| b | 109.5mm |
| e | 120mm |
| g | 34mm |
| h | 31mm |
| d1 | 38mm |
| d2 | 15mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 0.9kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 10mm is the connection point on a Grade 80 chain sling, giving you a rated hook with a spring latch to stop the load slipping off the bowl. It suits 10mm chain and carries a working load limit of 3.2t, which puts it in the middle of the range and makes it the common pick for general crane and mine site slinging work.
Built from heat treated alloy steel, with quality testing carried out through the manufacturing process and identification marks cast into the body. Key dimensions are a 120mm overall length, 109.5mm eye to throat, a 34mm throat opening and a 15mm eye diameter, with the hook weighing roughly 0.9kg. Step up or down a size if your chain diameter or load differs.
Common questions
- what is the WLL of a 10mm G80 eye sling hook
- This Beaver G80 Eye Sling Hook With Safety Latch in 10mm has a working load limit of 3.2t.
- what chain size does the Beaver 885810 hook fit
- It is made for 10mm Grade 80 chain. The eye diameter is 15mm and the throat opening is 34mm.
- what is the Beaver G80 eye sling hook made of
- Heat treated alloy steel, with quality testing done through the manufacturing process and identification marks on the component for easy checking.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
