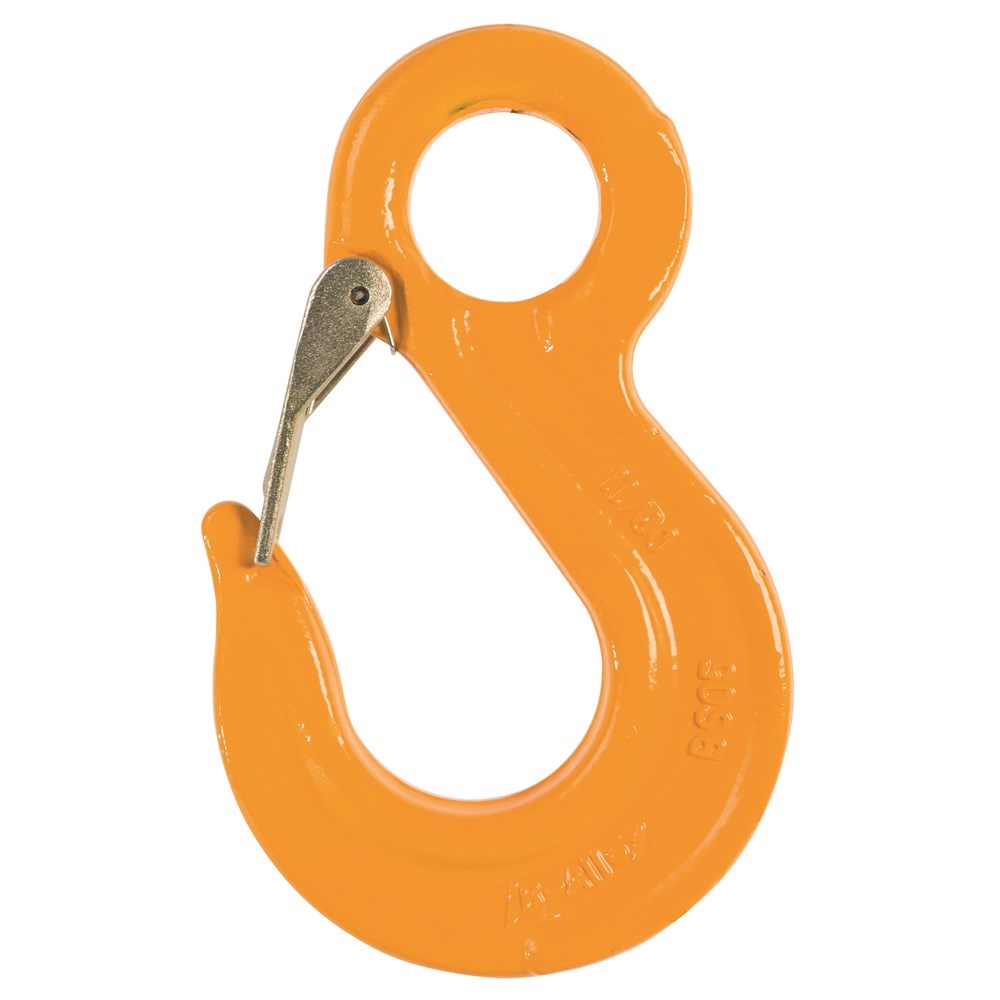

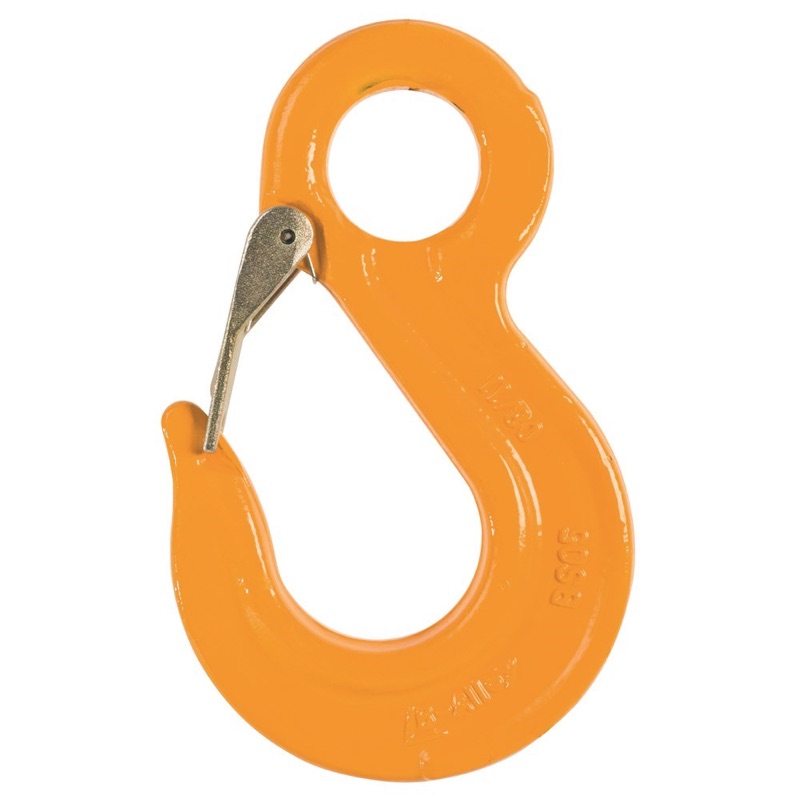

Beaver G80 Eye Sling Hook With Safety Latch 7-8mm
885807per Each
$7.23 inc GSTTrade $6.51, save $0.72Trade accounts save 10%. Apply with your ABN
| b | 82mm |
| e | 111mm |
| g | 30mm |
| h | 23mm |
| d1 | 23mm |
| d2 | 11mm |
| WLL | 2t |
| Chain Size | 7-8mm |
| Approx Weight | 0.4kg |
About this product
The Beaver G80 Eye Sling Hook With Safety Latch 7-8mm is the end fitting for a Grade 80 chain sling, giving you a hook that connects straight to 7-8mm chain and holds the load with a spring latch. It carries a 2t working load limit, so it suits the lighter end of chain sling work without stepping down in quality.
Made from heat treated alloy steel, with quality testing carried out through manufacture and identification marks on the body. Dimensions run 82mm across the b measurement, 111mm at e, a 23mm d1 eye and an 11mm d2, with a 30mm g and 23mm h opening. At roughly 0.4kg it is easy to handle all day. Check the latch closes cleanly and the throat is not stretched before every lift.
Common questions
- what chain size does the beaver g80 eye sling hook fit
- This variant is made for 7-8mm Grade 80 chain. Other sizes in the range cover different chain diameters.
- what is the wll of a 7-8mm g80 eye sling hook
- The working load limit is 2t for this size.
- what is the beaver g80 sling hook made of
- Heat treated alloy steel, with quality testing done throughout the manufacturing process and identification marks on the component.
Full specifications
| Product code | Chain Size | WLL | e | b | h | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885806 | 6mm | 1.1t | 75mm | 71.3mm | 19mm | 20mm | 10mm | 23.5mm | 0.244kg |
| 885807 | 7-8mm | 2t | 111mm | 82mm | 23mm | 23mm | 11mm | 30mm | 0.4kg |
| 885810 | 10mm | 3.2t | 120mm | 109.5mm | 31mm | 38mm | 15mm | 34mm | 0.9kg |
| 885813 | 13mm | 5.3t | 152mm | 146.5mm | 44.5mm | 43mm | 19mm | 39mm | 2.35kg |
| 885816 | 16mm | 8t | 184mm | 154mm | 44mm | 50mm | 23mm | 49mm | 3.2kg |
| 885820 | 20mm | 12.5t | 219mm | 198mm | 58.5mm | 62mm | 24mm | 48mm | 5.8kg |
| 885822 | 22mm | 15t | 271mm | 259mm | 75.5mm | 62mm | 32mm | 71mm | 8.5kg |
| 885826 | 26mm | 21.2t | 279mm | 262.8mm | 80.5mm | 64mm | 35mm | 81mm | 13kg |
| 885832 | 32mm | 31.5t | 373mm | 355mm | 88mm | 88mm | 37mm | 102mm | 17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
