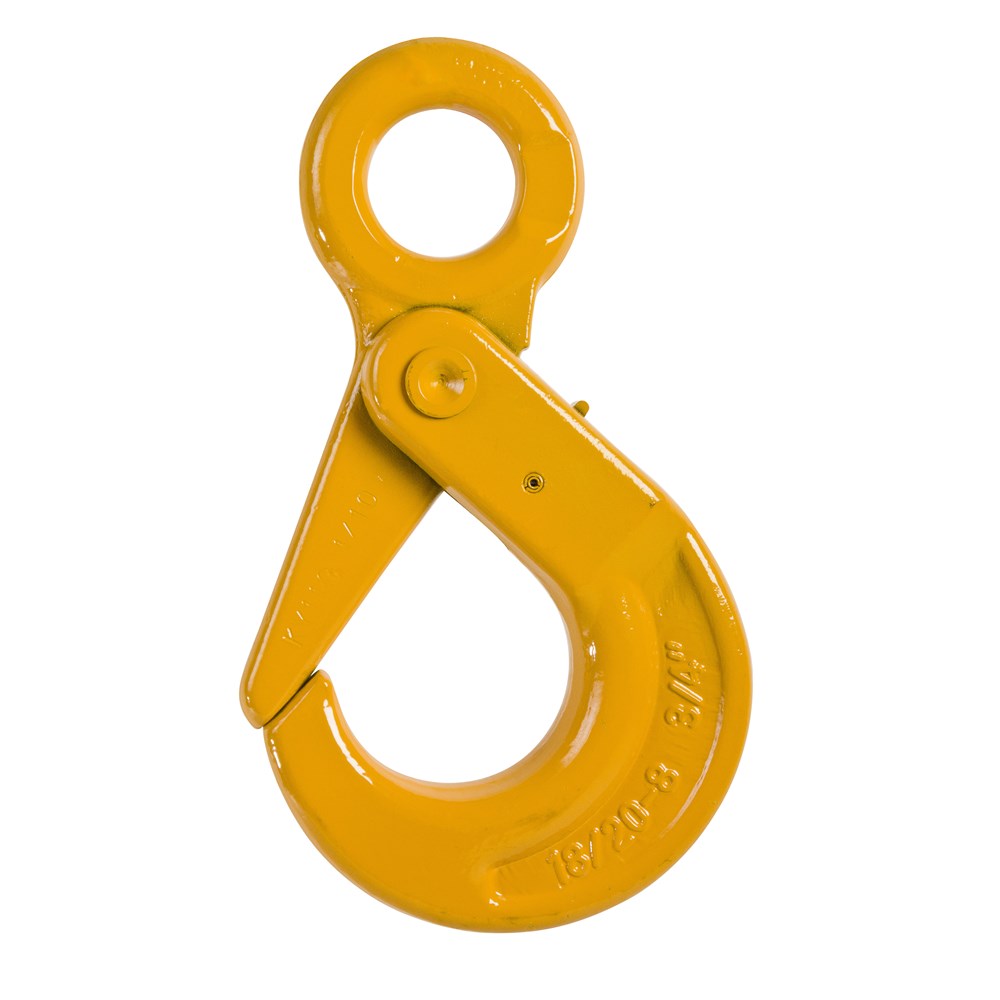

Beaver G80 Eye Self Locking Hook 22mm
885722Yper Each
$437.50 inc GSTTrade $393.75, save $43.75Trade accounts save 10%. Apply with your ABN
| b | 229mm |
| e | 310mm |
| g | 92mm |
| h | 74mm |
| d1 | 70mm |
| d2 | 35mm |
| WLL | 15t |
| Chain Size | 22mm |
| Approx Weight | 14.3kg |
About this product
The Beaver G80 Eye Self Locking Hook 22mm is the self locking terminal hook you put on the business end of a heavy Grade 80 chain sling. It suits 22mm chain and carries a working load limit of 15t, making it the top of the range size for serious lifts on mine sites and big civil jobs. The latch locks under load, so the hook stays closed once the weight comes on.
Made from heat treated alloy steel, with quality testing carried out through the manufacturing process. Distinguishing marks on the body make identification straightforward during inspections. Main dimensions are 310mm overall length, 229mm across at b, a 92mm throat at g and 74mm at h, with a 70mm d1 and 35mm d2. At roughly 14.3kg it is a two hand fit up, so plan the rig accordingly.
Common questions
- what is the WLL of a 22mm G80 self locking hook
- This one is rated at a 15t working load limit. That rating applies to the hook used with 22mm Grade 80 chain.
- what chain size does the Beaver 885722Y hook fit
- It is made for 22mm chain in a Grade 80 system. Do not fit it to a different chain size.
- what is the Beaver G80 eye self locking hook made from
- Heat treated alloy steel, with quality testing done through the manufacturing process. It also carries distinguishing marks so you can identify it during inspection.
Full specifications
| Product code | Chain Size | WLL | e | d1 | d2 | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885706Y | 6mm | 1.1t | 107mm | 22mm | 11mm | 22mm | 75mm | 28mm | 0.5kg |
| 885707Y | 7-8mm | 2t | 133mm | 24mm | 11mm | 25mm | 86mm | 33mm | 0.84kg |
| 885710Y | 10mm | 3.2t | 167mm | 32mm | 15.5mm | 34mm | 111mm | 45mm | 1.575kg |
| 885713Y | 13mm | 5.3t | 208mm | 39mm | 20.5mm | 40mm | 136mm | 52mm | 3.12kg |
| 885716Y | 16mm | 8t | 254mm | 49mm | 24.5mm | 53mm | 173mm | 64mm | 5.875kg |
| 885720Y | 20mm | 12.5t | 272mm | 59mm | 27.5mm | 64mm | 200mm | 77mm | 8.5kg |
| 885722Y | 22mm | 15t | 310mm | 70mm | 35mm | 74mm | 229mm | 92mm | 14.3kg |
| 885726Y | 26mm | 21.2t | 363mm | 80mm | 34mm | 75mm | 242.8mm | 99mm | 18kg |
| 885732Y | 32mm | 31.5t | 472mm | 105mm | 45mm | 97mm | 334mm | 147mm | 44.5kg |
