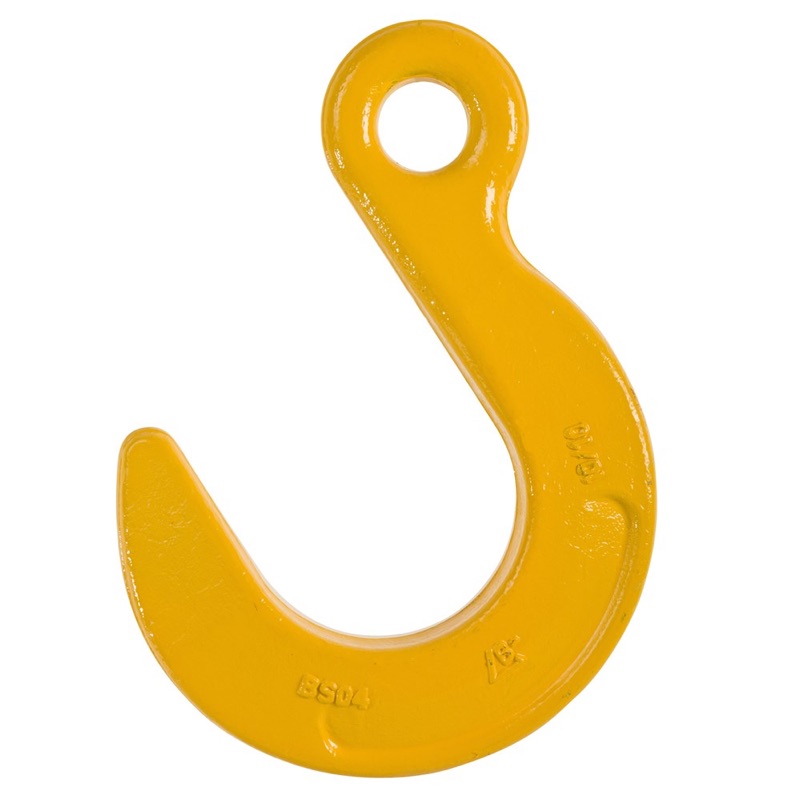

Beaver G80 Eye Foundry Hook 10mm
885610per Each
$91.11 Trade inc GST$101.23 without a trade accountTrade accounts save 10% — apply with your ABN
| b | 146mm |
| e | 147.5mm |
| g | 76mm |
| h | 36.5mm |
| d1 | 22mm |
| d2 | 16mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 1.95kg |
Full specifications
| Product code | Chain Size | WLL | e | d1 | d2 | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 885607 | 7-8mm | 2t | 121.7mm | 18mm | 12mm | 31.2mm | 120.8mm | 63mm | 1.09kg |
| 885610 | 10mm | 3.2t | 147.5mm | 22mm | 16mm | 36.5mm | 146mm | 76mm | 1.95kg |
| 885613 | 13mm | 5.3t | 175.6mm | 27mm | 19mm | 44.5mm | 171mm | 89mm | 3.22kg |
| 885616 | 16mm | 8t | 205mm | 32mm | 20mm | 52mm | 198mm | 102mm | 5.26kg |
| 885620 | 20mm | 12.5t | 232mm | 38mm | 25.4mm | 65mm | 232mm | 114.5mm | 9.07kg |
| 885622 | 22mm | 15t | 263mm | 45mm | 28.7mm | 69mm | 256mm | 127.5mm | 11.79kg |
