what is the WLL of a 16mm Beaver G80 swivel hook

The 16mm size has a working load limit of 8t. It is matched to 16mm grade 80 chain.

beaver g80 eye swivel hook 16mm dimensions

Overall length is 286mm, throat width 60mm, opening 48mm and eye diameter 23mm. Approximate weight is 6.025kg.

why use a swivel hook instead of a fixed eye hook

The swivel lets the hook rotate under load, which reduces twist in the sling. A fixed hook cannot do that, so the chain can wind up as the load settles.

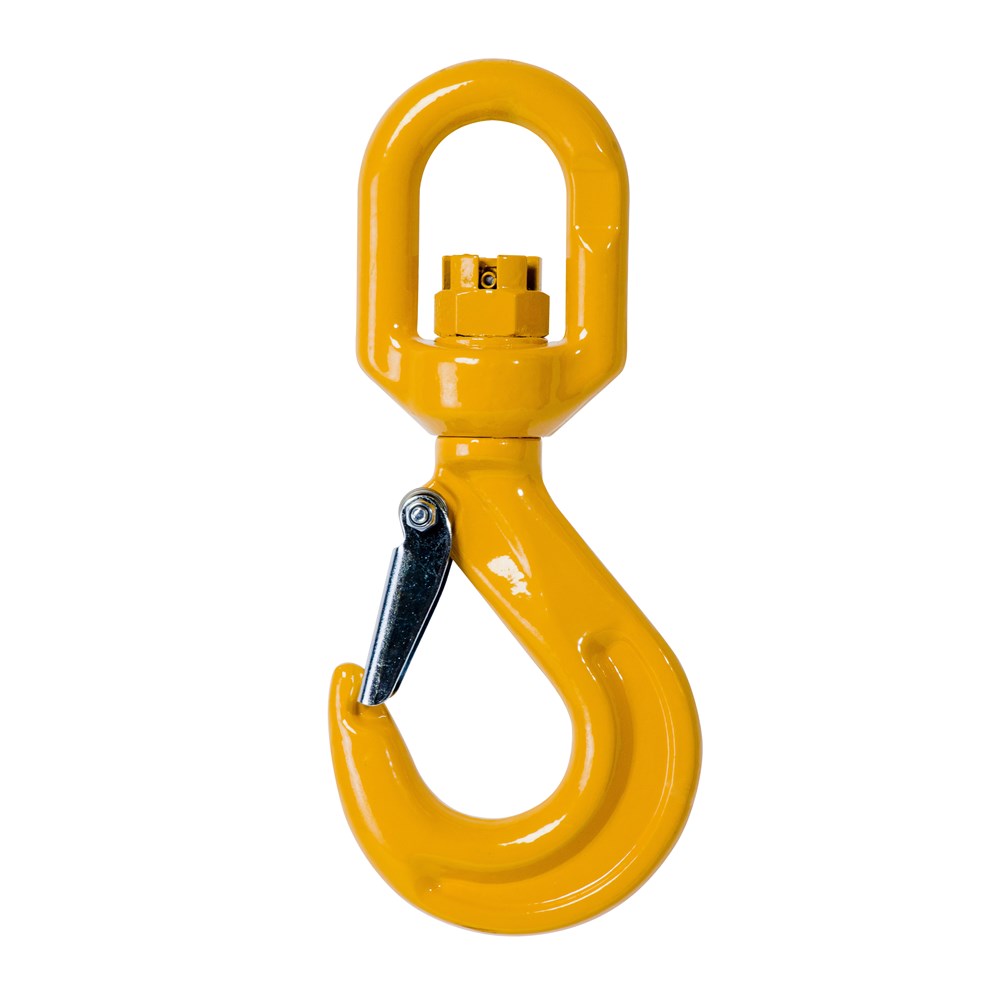

Beaver G80 Eye Swivel Hook With Safety Latch 16mm

Name: Beaver G80 Eye Swivel Hook With Safety Latch 16mm
Brand: Beaver
SKU: 885416
Price: 192.27 AUD
Availability: InStock

885416per Each

Chain Size

$192.27 inc GSTTrade $173.04, save $19.23Trade accounts save 10%. Apply with your ABN

e	286mm
g	47mm
h	48mm
w	60mm
d2	23mm
WLL	8t
Chain Size	16mm
Approx Weight	6.025kg

About this product

The Beaver G80 Eye Swivel Hook With Safety Latch in 16mm is the end fitting for heavy grade 80 chain slings, letting the hook swivel under load so your sling doesn't wind up twisted. At 16mm chain size it carries an 8t working load limit, with a 60mm throat width, 48mm opening and an overall length of 286mm. Weight is around 6.025kg, so it is a solid piece of gear in the hand.

Built from heat treated alloy steel and complies to AS 3776. The eye is enlarged, so a bigger shackle goes straight in without pulling the hook apart. The heavy duty safety latch keeps the load where it should be, and spare latch kits are available when one gets knocked about. Beaver grade 80 components carry identification marks, which makes inspection and sorting on site a lot quicker.

Common questions

what is the WLL of a 16mm Beaver G80 swivel hook: The 16mm size has a working load limit of 8t. It is matched to 16mm grade 80 chain.
beaver g80 eye swivel hook 16mm dimensions: Overall length is 286mm, throat width 60mm, opening 48mm and eye diameter 23mm. Approximate weight is 6.025kg.
why use a swivel hook instead of a fixed eye hook: The swivel lets the hook rotate under load, which reduces twist in the sling. A fixed hook cannot do that, so the chain can wind up as the load settles.

Full specifications

Product code	Chain Size	WLL	e	d2	h	g	w	Approx Weight
885407	8mm	2t	164mm	14mm	28mm	25mm	34mm	0.93kg
885410	10mm	3.2t	187mm	16mm	36mm	29mm	42mm	1.75kg
885413	13mm	5.3t	245mm	20mm	45mm	40mm	52mm	3.4kg
885416	16mm	8t	286mm	23mm	48mm	47mm	60mm	6.025kg
