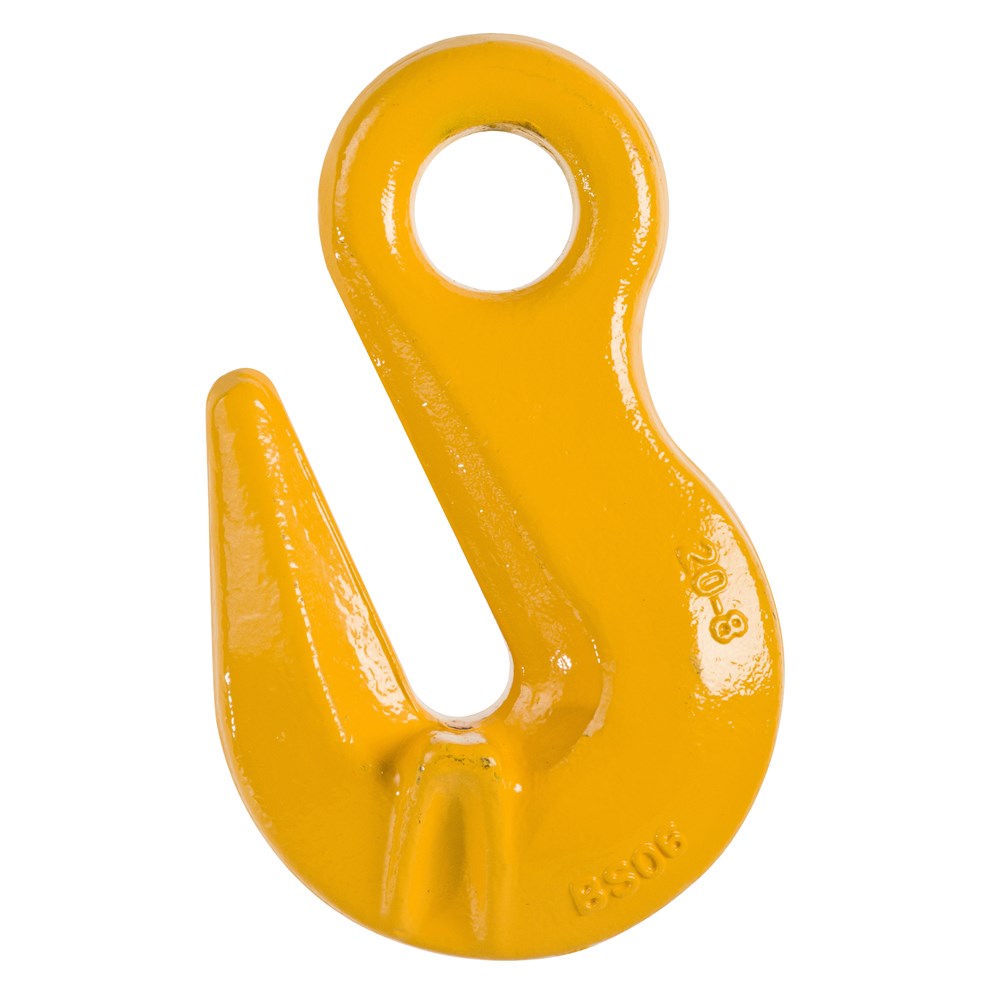

Beaver G80 Eye Shortening Grab Hook 32mm
885332per Each
$589.93 inc GSTTrade $530.94, save $58.99Trade accounts save 10%. Apply with your ABN
| b | 223mm |
| e | 230mm |
| g | 38mm |
| d1 | 57mm |
| d2 | 40mm |
| WLL | 31.5t |
| Chain Size | 32mm |
| Approx Weight | 19.4kg |
About this product
The Beaver G80 Eye Shortening Grab Hook 32mm shortens a Grade 80 chain leg to length without cutting or rerigging. At 31.5t working load limit on 32mm chain, this is the largest size in the range, built for heavy lift work where the chain itself is the limiting factor. The eye at the top connects straight to couplers, shackles or wire rope slings. Supporting lugs sit either side of the seat so the chain link cannot deform and drop the rated capacity.
Heat treated alloy steel throughout, with distinguishing marks stamped on for identification during inspection. Complies to AS 3776. It measures 223mm across dimension b and 230mm at e, with a 38mm throat and eye dimensions of 57mm and 40mm. Weight is around 19.4kg, so plan the lift and the handling to match. Do not tip load an eye grab hook.
Common questions
- what is the WLL of a 32mm G80 eye shortening grab hook
- 31.5t working load limit when used with 32mm Grade 80 chain. It is the largest size in the Beaver eye shortening grab hook range.
- can you use a grab hook to shorten a chain sling
- Yes, that is what this hook is designed for. The supporting lugs on either side hold the chain link in place and stop it deforming, which would otherwise reduce the working load limit.
- what is a beaver g80 grab hook made of
- Heat treated alloy steel, with quality testing carried out through the manufacturing process. Each hook carries distinguishing marks so you can identify it during inspection.
Full specifications
| Product code | Chain Size | WLL | e | b | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885306 | 6mm | 1.1t | 51mm | 45.8mm | 13.5mm | 8mm | 8.3mm | 0.14kg |
| 885307 | 7-8mm | 2t | 61.7mm | 51mm | 18mm | 9.5mm | 10.8mm | 0.35kg |
| 885310 | 10mm | 3.2t | 80mm | 70mm | 20.5mm | 13mm | 13.5mm | 0.65kg |
| 885313 | 13mm | 5.3t | 99.7mm | 89.7mm | 26mm | 15.5mm | 16.5mm | 1.39kg |
| 885316 | 16mm | 8t | 105.5mm | 113mm | 30.5mm | 19mm | 20mm | 2.1kg |
| 885320 | 20mm | 12.5t | 140.7mm | 143mm | 37.5mm | 23mm | 25mm | 4kg |
| 885322 | 22mm | 15t | 165mm | 160.5mm | 44mm | 26mm | 28mm | 6.36kg |
| 885326 | 26mm | 21.2t | 188.5mm | 181.3mm | 44mm | 34mm | 30mm | 9.6kg |
| 885332 | 32mm | 31.5t | 230mm | 223mm | 57mm | 40mm | 38mm | 19.4kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
