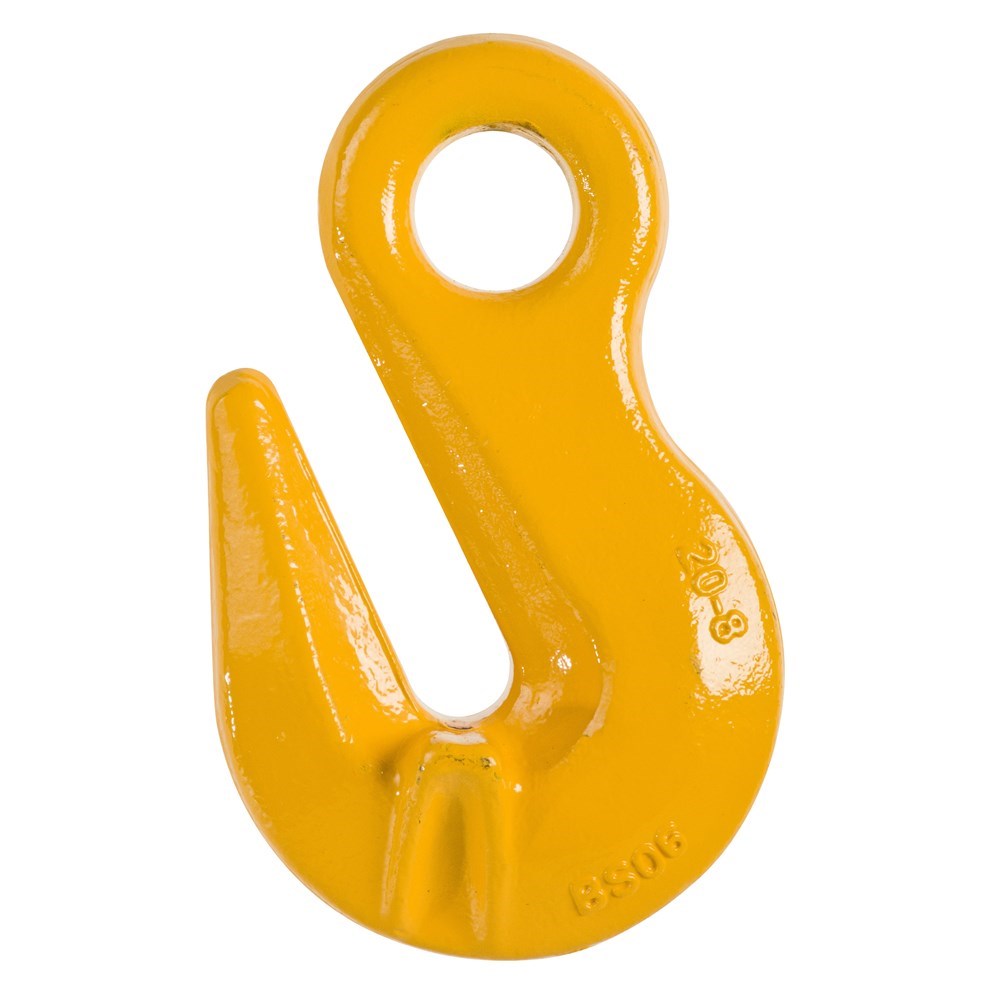

Beaver G80 Eye Shortening Grab Hook 22mm
885322per Each
$151.47 inc GSTTrade $136.32, save $15.15Trade accounts save 10%. Apply with your ABN
| b | 160.5mm |
| e | 165mm |
| g | 28mm |
| d1 | 44mm |
| d2 | 26mm |
| WLL | 15t |
| Chain Size | 22mm |
| Approx Weight | 6.36kg |
About this product
The Beaver G80 Eye Shortening Grab Hook 22mm is the hook you reach for when you need to shorten a 22mm grade 80 chain sling without losing capacity. It is the heavy end of the range, rated to a 15t working load limit and weighing around 6.36kg, so it is built for big chain work on mine sites and major lifts rather than light rigging.
The eye at the top connects straight to couplers, connectors, shackles or wire rope slings, and supporting lugs each side hold the chain link square to stop deformation and any drop in WLL. Made from heat treated alloy steel with a 26mm d2 and 44mm d1, it carries Beaver's identification marks and complies to AS 3776. One thing to watch: eye grab hooks are not suitable for tip loading, so always seat the link properly.
Common questions
- what is the WLL of a 22mm grade 80 grab hook
- This one has a working load limit of 15t, matched to 22mm grade 80 chain. Always work within the rating of the whole sling assembly.
- can you use a grab hook to shorten a chain sling
- Yes, that is exactly what it is made for. Drop the chain link into the hook and the supporting lugs either side keep it from deforming and losing WLL.
- what is the Beaver G80 eye grab hook made of
- Heat treated alloy steel, with quality testing carried out through manufacturing and identification marks on the body. It complies to AS 3776.
Full specifications
| Product code | Chain Size | WLL | e | b | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885306 | 6mm | 1.1t | 51mm | 45.8mm | 13.5mm | 8mm | 8.3mm | 0.14kg |
| 885307 | 7-8mm | 2t | 61.7mm | 51mm | 18mm | 9.5mm | 10.8mm | 0.35kg |
| 885310 | 10mm | 3.2t | 80mm | 70mm | 20.5mm | 13mm | 13.5mm | 0.65kg |
| 885313 | 13mm | 5.3t | 99.7mm | 89.7mm | 26mm | 15.5mm | 16.5mm | 1.39kg |
| 885316 | 16mm | 8t | 105.5mm | 113mm | 30.5mm | 19mm | 20mm | 2.1kg |
| 885320 | 20mm | 12.5t | 140.7mm | 143mm | 37.5mm | 23mm | 25mm | 4kg |
| 885322 | 22mm | 15t | 165mm | 160.5mm | 44mm | 26mm | 28mm | 6.36kg |
| 885326 | 26mm | 21.2t | 188.5mm | 181.3mm | 44mm | 34mm | 30mm | 9.6kg |
| 885332 | 32mm | 31.5t | 230mm | 223mm | 57mm | 40mm | 38mm | 19.4kg |
