what chain size does the 16mm beaver eye grab hook fit

It is sized for 16mm Grade 80 chain, with a 20mm throat opening.

beaver g80 eye shortening grab hook 16mm wll

The working load limit is 8t on 16mm Grade 80 chain.

can you tip load an eye grab hook

No. Eye grab hooks are not suitable for tip loading, so keep the load seated properly in the hook.

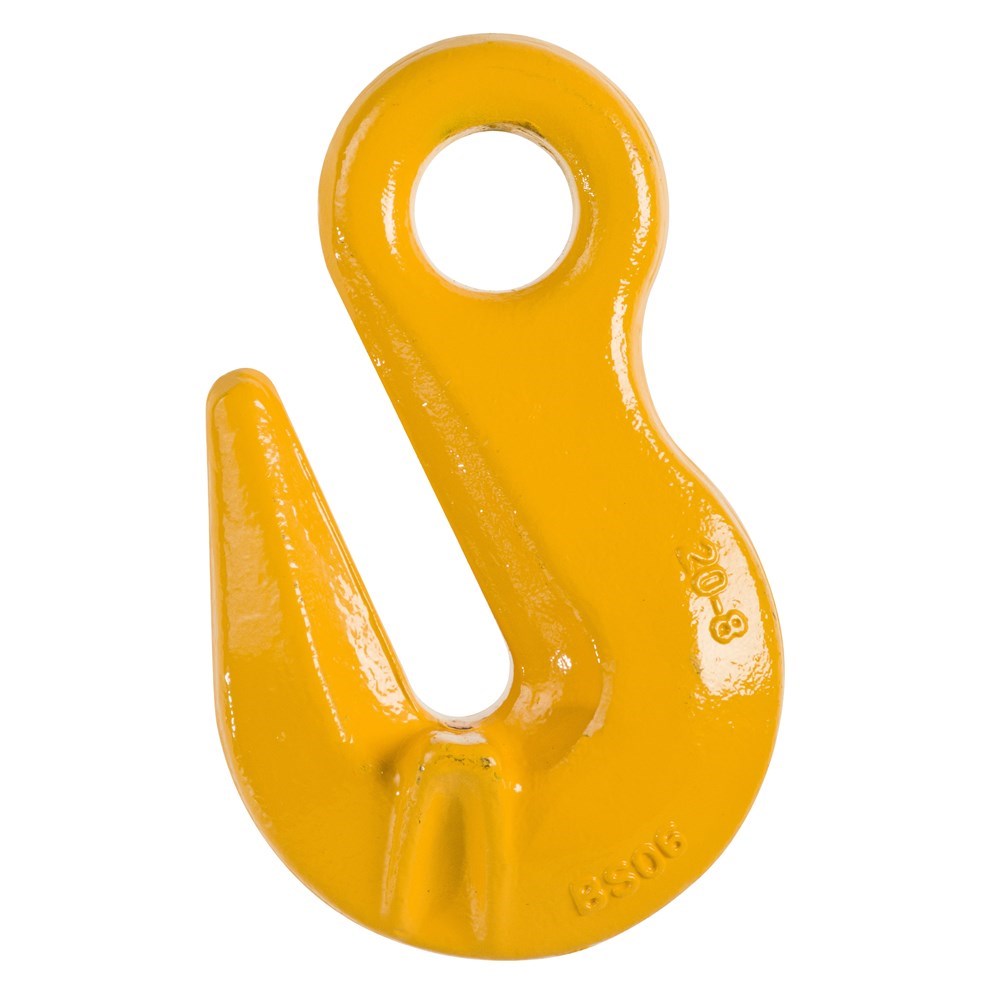

Beaver G80 Eye Shortening Grab Hook 16mm

Name: Beaver G80 Eye Shortening Grab Hook 16mm
Brand: Beaver
SKU: 885316
Price: 50.39 AUD
Availability: InStock

885316per Each

Chain Size

$50.39 inc GSTTrade $45.35, save $5.04Trade accounts save 10%. Apply with your ABN

b	113mm
e	105.5mm
g	20mm
d1	30.5mm
d2	19mm
WLL	8t
Chain Size	16mm
Approx Weight	2.1kg

About this product

The Beaver G80 Eye Shortening Grab Hook 16mm lets you shorten a chain sling leg on the job without dropping the load rating. It suits 16mm Grade 80 chain and carries an 8t working load limit, putting it at the heavier end of the range. The eye at the top takes couplers and connectors, shackles or wire rope slings, so it drops into most sling builds. Weight is around 2.1kg.

Supporting lugs sit either side of the throat to hold the link square and stop deformation that would cut the WLL. Key dimensions are a 113mm body length, 105.5mm eye height, 20mm throat and a 30.5mm by 19mm eye. Made from heat treated alloy steel and marked for identification. Complies to AS 3776. Not for tip loading.

Common questions

what chain size does the 16mm beaver eye grab hook fit: It is sized for 16mm Grade 80 chain, with a 20mm throat opening.
beaver g80 eye shortening grab hook 16mm wll: The working load limit is 8t on 16mm Grade 80 chain.
can you tip load an eye grab hook: No. Eye grab hooks are not suitable for tip loading, so keep the load seated properly in the hook.

Full specifications

Product code	Chain Size	WLL	e	b	d1	d2	g	Approx Weight
885306	6mm	1.1t	51mm	45.8mm	13.5mm	8mm	8.3mm	0.14kg
885307	7-8mm	2t	61.7mm	51mm	18mm	9.5mm	10.8mm	0.35kg
885310	10mm	3.2t	80mm	70mm	20.5mm	13mm	13.5mm	0.65kg
885313	13mm	5.3t	99.7mm	89.7mm	26mm	15.5mm	16.5mm	1.39kg
885316	16mm	8t	105.5mm	113mm	30.5mm	19mm	20mm	2.1kg
885320	20mm	12.5t	140.7mm	143mm	37.5mm	23mm	25mm	4kg
885322	22mm	15t	165mm	160.5mm	44mm	26mm	28mm	6.36kg
885326	26mm	21.2t	188.5mm	181.3mm	44mm	34mm	30mm	9.6kg
885332	32mm	31.5t	230mm	223mm	57mm	40mm	38mm	19.4kg
