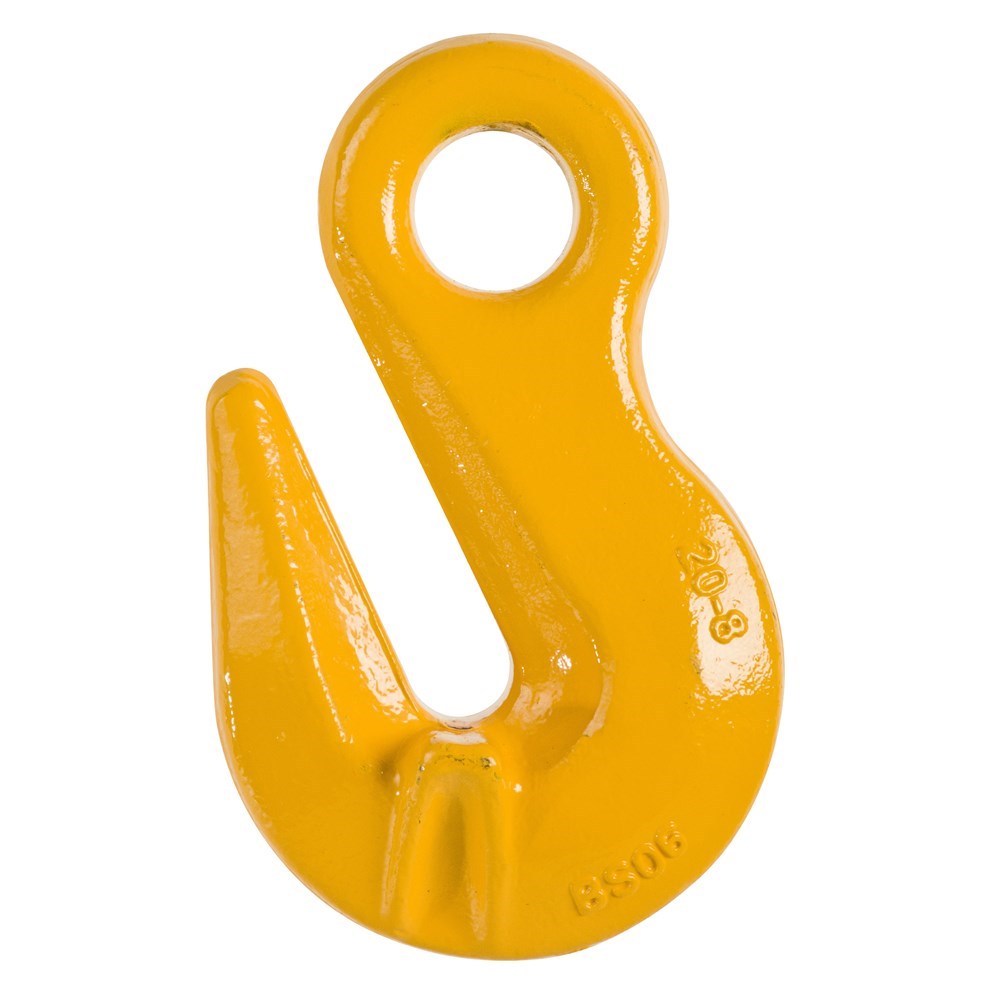

Beaver G80 Eye Shortening Grab Hook 13mm
885313per Each
$27.40 inc GSTTrade $24.66, save $2.74Trade accounts save 10%. Apply with your ABN
| b | 89.7mm |
| e | 99.7mm |
| g | 16.5mm |
| d1 | 26mm |
| d2 | 15.5mm |
| WLL | 5.3t |
| Chain Size | 13mm |
| Approx Weight | 1.39kg |
About this product
The Beaver G80 Eye Shortening Grab Hook 13mm shortens a 13mm chain sling leg on the job without cutting or re-rating the chain. It carries a working load limit of 5.3t, making it the pick for heavier chain assemblies where the smaller sizes in the range run out of capacity. The eye at the top connects straight to couplers and connectors, shackles or wire rope slings. Supporting lugs sit either side of the throat so the chain link cannot deform and drop the WLL.
Made from heat treated alloy steel and marked for identification, this hook complies to AS 3776. Key dimensions are 89.7mm across b, 99.7mm at e, a 16.5mm throat, 26mm d1 and 15.5mm d2, at roughly 1.39kg. One thing to watch, eye grab hooks are not rated for tip loading, so seat the link properly in the throat every time.
Common questions
- what is the WLL of a 13mm G80 grab hook
- The 13mm Beaver G80 Eye Shortening Grab Hook has a working load limit of 5.3t. It is matched to 13mm Grade 80 chain.
- can you tip load an eye grab hook
- No. Eye grab hooks are not suitable for tip loading, so the chain link needs to sit fully in the 16.5mm throat with the supporting lugs taking the link.
- what is the beaver g80 grab hook made of
- Heat treated alloy steel, with quality testing through the manufacturing process and distinguishing marks for identification. It complies to AS 3776.
Full specifications
| Product code | Chain Size | WLL | e | b | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885306 | 6mm | 1.1t | 51mm | 45.8mm | 13.5mm | 8mm | 8.3mm | 0.14kg |
| 885307 | 7-8mm | 2t | 61.7mm | 51mm | 18mm | 9.5mm | 10.8mm | 0.35kg |
| 885310 | 10mm | 3.2t | 80mm | 70mm | 20.5mm | 13mm | 13.5mm | 0.65kg |
| 885313 | 13mm | 5.3t | 99.7mm | 89.7mm | 26mm | 15.5mm | 16.5mm | 1.39kg |
| 885316 | 16mm | 8t | 105.5mm | 113mm | 30.5mm | 19mm | 20mm | 2.1kg |
| 885320 | 20mm | 12.5t | 140.7mm | 143mm | 37.5mm | 23mm | 25mm | 4kg |
| 885322 | 22mm | 15t | 165mm | 160.5mm | 44mm | 26mm | 28mm | 6.36kg |
| 885326 | 26mm | 21.2t | 188.5mm | 181.3mm | 44mm | 34mm | 30mm | 9.6kg |
| 885332 | 32mm | 31.5t | 230mm | 223mm | 57mm | 40mm | 38mm | 19.4kg |
